AstraWrap™ Thermal Insulation Space Wrap
Aerospace Fabrication and Materials, LLC
AstraWrap™ is a versatile thermal insulation wrap, ideal for aerospace applications including satellites, launch vehicles, and space stations, ensuring optimal thermal performance in challenging environments.
Typed specifications40 values
Discloses 5 of 7 fields engineers filter by in this category (category median 1).
- Mass
- 181 g datasheet p.2
- Emissivity
- 0.005 datasheet p.2 0.005 effective, expected; AW001/AW002, 10 layers | 0.004 effective, expected; AW001/AW002, 15 layers | 0.004 effective, expected; AW001/AW002, 20 layers | 0.01 effective, expected; AW003/AW004, 10 layers +2
- Layers (MLI)
- 10 datasheet p.2 10 AW001/AW002 | 10 AW003/AW004 | 15 AW001/AW002 | 15 AW003/AW004 +2
- Operating temperature
- -269 °C min · datasheet p.2 149 °C max | -269–149 °C AW001/AW002, 10 layers | -269–149 °C AW001/AW002, 15 layers | -269–149 °C AW001/AW002, 20 layers +3
- Product type
- MLI datasheet p.1
- Material
- double aluminized polyester film datasheet p.1
- Thickness
- 0.34 mm AW001/AW002, 10 layers · datasheet p.2 4.5 mm AW001/AW002, 15 layers | 5.5 mm AW001/AW002, 20 layers | 1.8 mm AW003/AW004, 10 layers | 3.1 mm AW003/AW004, 15 layers +1
- Areal density
- 0.181 kg/m² AW001/AW002, 10 layers · datasheet p.2 0.272 kg/m² AW001/AW002, 15 layers | 0.362 kg/m² AW001/AW002, 20 layers | 0.11 kg/m² AW003/AW004, 10 layers | 0.165 kg/m² AW003/AW004, 15 layers +1
- Satellite class
- Satellites – All Sizes datasheet p.0
- Spacer between layers
- embossed film (no separate spacer) AW003/AW004 · datasheet p.1 Dacron net polyester netting; AW001/AW002
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Film Thickness
- 0.25 mil (6 µm)
- Max Temperature
- 250°F
- Standard Length
- 10 feet
- Standard Width
- 48 inches
- Custom Width
- up to 54 inches
- Reflector Layers
- 10, 15, 20 (customizable)
About

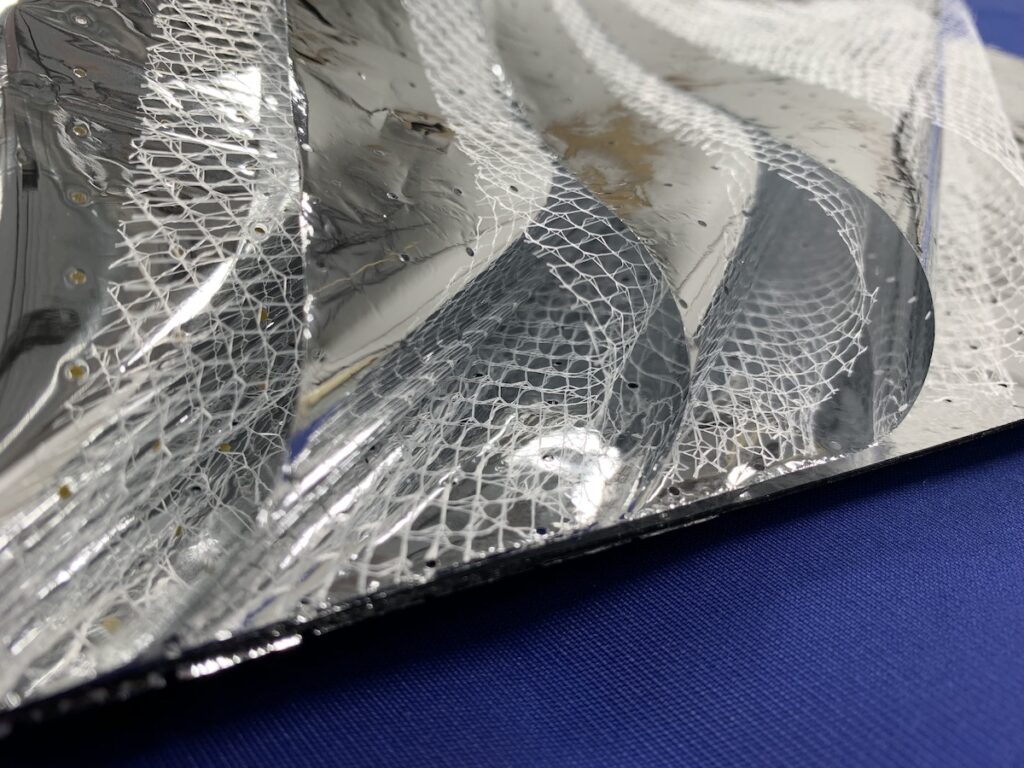

AstraWrap™ delivers enhanced thermal performance for aerospace needs. It is a custom prefabricated layup of multilayer insulation, combining multiple layers of ultra-thin 0.25 mil (6 µm) polyester film separated by lightweight, low-conducting polyester netting. The polyester film is coated with aluminum on both sides for high thermal performance, and the netting is made of a lightweight scrim to minimize weight and layer-to-layer conductivity. This scrim wrap is primarily suited for lower temperature applications that do not exceed 250°F. Standard configurations come in a length of 10 feet and a width of 48 inches, with custom widths of up to 54 inches also available. Standard layups come with 10, 15, and 20 reflector layers, but they can also be customized to fit specific thermal performance requirements. AstraWrap™ Super100 consists of the AstraWrap™ layup in a length of 100 feet.
Documentation
- DataSheet_AstraWrap_092723.pdf PDF source: aerospacefab.com ↗
- DataSheet_AstraWrap_PRINT_122123.pdf PDF source: aerospacefab.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
