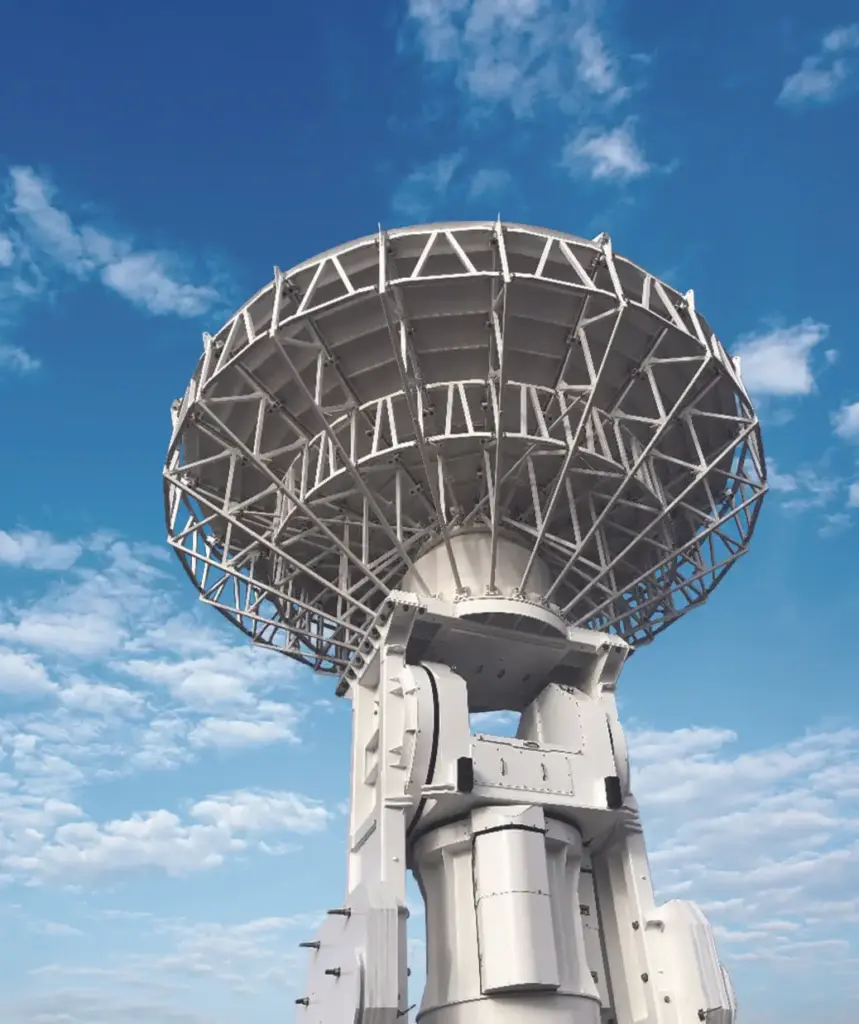

7m LEO Earth Station Antenna
Calian (SatService)
7m high-slew-rate earth station antenna for tracking LEO and MEO satellite constellations across C, Ka, Ku, S, and X bands.
Typed specifications55 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka Ka-band Rx · datasheet p.2 Ka Ka-band Tx | S Optional frequency bands | Ka Rx 17.70-21.50 GHz, Tx 27.50-31.00 GHz | Ka Optional frequency bands +3
- Antenna diameter
- 7 m Main reflector · datasheet p.1
- Frequency range
- 17 700–21 500 MHz Ka-band Rx · datasheet p.2 27 500–31 000 MHz Ka-band Tx
- G/T
- 36.9 dB/K Ka Rx 17.70 GHz, clear sky with 120 K LNA @ 20 deg elevation · datasheet p.2 37.6 dB/K Ka Rx 19.60 GHz, clear sky with 120 K LNA @ 20 deg elevation | 37.9 dB/K Ka Rx 21.50 GHz, clear sky with 120 K LNA @ 20 deg elevation | 36.9 dB/K Ka-band Clear Sky 120 K LNA @20° Elevation @17.70 GHz | 37.6 dB/K Ka-band Clear Sky 120 K LNA @20° Elevation @19.60 GHz +1
- Supply voltage
- 220 V Auxiliary circuits (optional) · datasheet p.1 208 V auxiliary circuits, split phase 60 Hz | 208 V De-icing system | 200–240 V drive systems, 3-phase, 50/60Hz | 380–430 V drive systems, 3-phase, 50/60Hz
- Power consumption
- 650 W Ka-band Tx, per port (CW) · datasheet p.2
- Data interface
- Ethernet M&C and user interface · datasheet p.1 other M&C interface
- Operating temperature
- -30–60 °C Operational · datasheet p.2
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector dual reflector Cassegrain design · datasheet p.1
- Mount / pedestal
- az-el with tilt (3-axis) 3 axis motion (no keyhole), elevation over azimuth, with tilt · datasheet p.1
- Polarization
- circular broadband feed options · datasheet p.1 circular CP broadband feed option | linear LP broadband feed option | linear broadband feed options
- Antenna gain
- 61.6 dBi Ka-band Rx @21.5 GHz · datasheet p.2 64.5 dBi Ka-band Tx @31 GHz
- Transmit power
- 650 W power handling per port (CW), Ka Tx · datasheet p.2
- Beamwidth (3 dB)
- 0.16 ° Ka-band Rx, -3dB (printed without degree sign) · datasheet p.2 0.11 ° Ka-band Tx, -3dB
- Cross-pol isolation
- 32.78 dB Ka Rx and Tx · datasheet p.2
- VSWR
- 1.25 feed interface, Ka Rx and Tx · datasheet p.2
- Tracking
- step track datasheet p.1 autotrack (monopulse) monopulse | program track (TLE) program track, NORAD TLE, IESS-412
- Survival temperature
- -40–70 °C Survival · datasheet p.2
- Tracking speed
- 15 °/s azimuth · datasheet p.1 15 °/s elevation | 15 °/s max · up to 15 deg/s in azimuth | 15 °/s max · up to 15 deg/s in elevation
- Pointing accuracy
- 0.013 ° max · < 0.013 deg · datasheet p.1 0.006 ° max · second line printed as Pointing accuracy < 0.0055 deg
- Azimuth travel
- -270–270 ° +/-270 deg in azimuth (540 deg continuous) · datasheet p.1
- Elevation travel
- 0–90 ° datasheet p.1
- Operational wind speed
- 27.8 m/s gusting up to 100 kph (63 mph) · datasheet p.2 20 m/s operational 72 kph (45 mph) | 55.6 m/s survival, 200 kph (125 mph) in stow position
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Reflector diameter
- 7 m
- Antenna type
- Dual reflector Cassegrain
- Mount
- Elevation over azimuth with tilt
- Main reflector material
- Aluminum
- Main reflector surface accuracy
- < 0.008" RMS
- Sub reflector material
- Carbon fibre composite
- Sub reflector surface accuracy
- < 0.002" RMS
- Frequency bands
- C, Ka, Ku, S, X
- Orbits
- LEO, MEO
- Operating temperature
- -30 to +60 °C
- Survival temperature
- -40 to +70 °C
About
Calian’s 7m LEO Earth Station Antenna is designed for tracking fast-moving low-Earth orbit (LEO) and medium-Earth orbit (MEO) satellites including broadband constellation terminals and scientific missions. The system uses a dual-reflector Cassegrain optical design with an elevation-over-azimuth-with-tilt mount to accommodate the high angular slew rates required for LEO tracking. The aluminum main reflector achieves surface accuracy below 0.008 inch RMS and the carbon fibre composite sub-reflector achieves below 0.002 inch RMS. Supported bands include C, Ka, Ku, S, and X. The adaptable antenna interface accepts de-icing, environmentally controlled hub, and adjustable polarization options. Full remote M&C is provided via Ethernet with multiple tracking modes. Calian has supplied 7m LEO earth station systems for government, commercial, and scientific satellite tracking programs.
