7m Satcom Antenna
Calian (SatService)
7m dual-reflector Cassegrain SATCOM antenna for GEO/MEO satellite communications in C, Ka, Ku, S, and X bands.
Typed specifications61 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka Rx 17.70-21.50 GHz, Tx 27.50-31.00 GHz · datasheet p.2
- Antenna diameter
- 7 m datasheet p.1
- Frequency range
- 17 700 MHz min · Rx Ka-band · datasheet p.2 27 500 MHz min · Tx Ka-band | 21 500 MHz max · Rx Ka-band | 31 000 MHz max · Tx Ka-band | 17 700–21 500 MHz Ka-band Rx +1
- G/T
- 37.1 dB/K Clear Sky @ 20° Elevation, 17.70 GHz · datasheet p.2 37.6 dB/K Clear Sky @ 20° Elevation, 19.60 GHz | 37.8 dB/K Clear Sky @ 20° Elevation, 21.50 GHz | 37.1 dB/K Ka Rx 17.70 GHz, clear sky @ 20 deg elevation, 110K LNA | 37.6 dB/K Ka Rx 19.60 GHz, clear sky @ 20 deg elevation, 110K LNA +1
- Supply voltage
- 220 V Auxiliary circuits (optional) · datasheet p.1 208 V auxiliary circuits, split phase 60 Hz | 208 V De-icing system | 200 V min · Drive systems | 240 V max · Drive systems +5
- Power consumption
- 650 W Tx Ka-band, per port (CW) · datasheet p.2
- Data interface
- Ethernet M&C and user interface · datasheet p.1
- Operating temperature
- -30 °C min · Operational · datasheet p.2 60 °C max · Operational | -30–60 °C
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector dual reflector Cassegrain design · datasheet p.1
- Mount / pedestal
- az-el 2 axis motion, elevation over azimuth · datasheet p.1
- Polarization
- other CP and LP Broadband feed options available · datasheet p.1 circular CP broadband feed option | linear LP broadband feed option | circular CP and LP Broadband feed options available | linear CP and LP Broadband feed options available
- Antenna gain
- 60.8 dBi Ka-band Rx @ mid band · datasheet p.2 64.1 dBi Ka-band Tx @ mid band
- Transmit power
- 650 W power handling per port (CW), Ka Tx · datasheet p.2
- Beamwidth (3 dB)
- 0.15 ° Ka-band Rx, -3dB · datasheet p.2 0.11 ° Ka-band Tx, -3dB
- Cross-pol isolation
- 30.8 dB Ka Rx and Tx · datasheet p.2
- VSWR
- 1.3 feed interface, Ka Rx and Tx · datasheet p.2
- Tracking
- step track datasheet p.1 autotrack (monopulse) monopulse | program track (TLE) program track, NORAD TLE, IESS-412
- Survival temperature
- -40 °C min · Survival · datasheet p.2 70 °C max · Survival | -40–70 °C
- Satellite class
- GEO datasheet p.1
- Tracking speed
- 1 °/s in azimuth · datasheet p.1 0.5 °/s in elevation
- Pointing accuracy
- 0.013 ° max · < 0.013 deg · datasheet p.1 0.006 ° max · tracking accuracy < 0.0055 deg
- Azimuth travel
- 400 ° max · up to 400 deg in azimuth · datasheet p.1
- Min elevation
- 0 ° datasheet p.1
- Elevation travel
- 0–90 ° datasheet p.1
- Operational wind speed
- 27.8 m/s gusting up to 100 kph (62 mph) · datasheet p.2 20 m/s operational 72 kph (45 mph) | 55.6 m/s survival, 200 kph (125 mph) in stow position
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Reflector diameter
- 7 m
- Antenna type
- Dual reflector Cassegrain
- Mount
- Elevation over azimuth, 2 axis
- Main reflector material
- Aluminum
- Main reflector surface accuracy
- < 0.008" RMS
- Sub reflector material
- Carbon fibre composite
- Sub reflector surface accuracy
- < 0.002" RMS
- Frequency bands
- C, Ka, Ku, S, X
- Orbits
- GEO, MEO
- Operating temperature
- -30 to +60 °C
- Survival temperature
- -40 to +70 °C
About

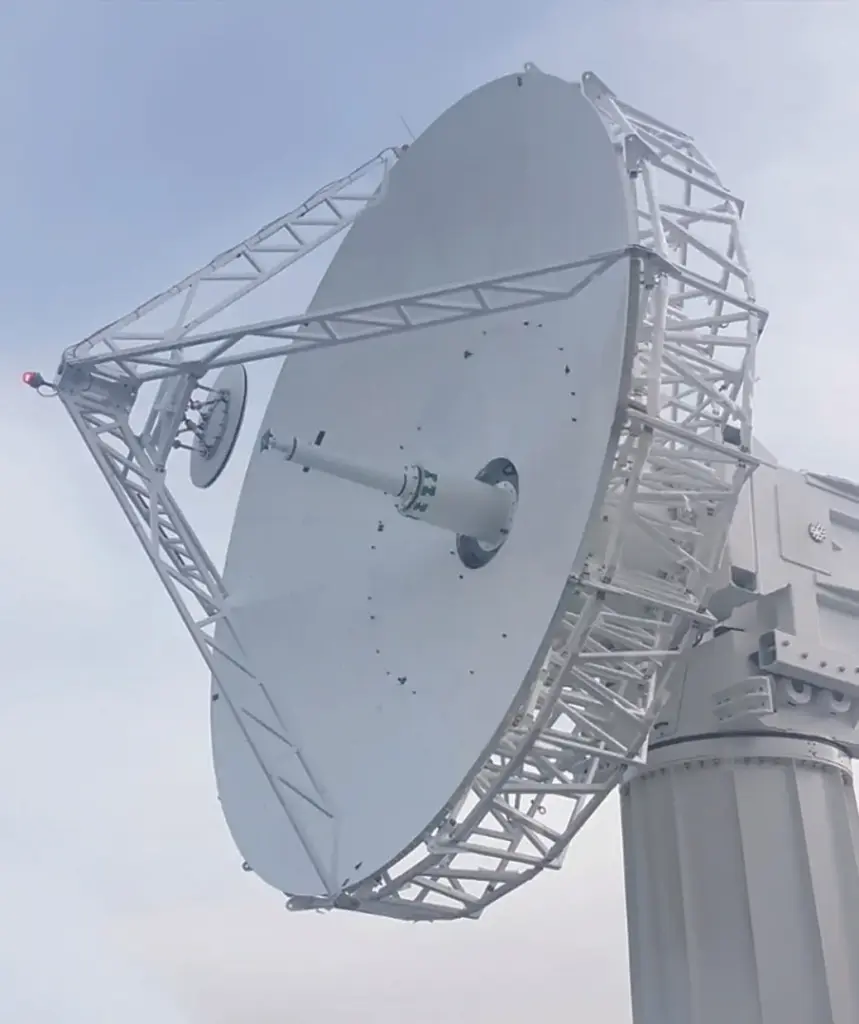

Calian’s 7m Satcom Antenna is a medium-aperture dual-reflector Cassegrain earth station system designed for geostationary (GEO) and MEO satellite communications. Supporting C, Ka, Ku, S, and X frequency bands, it features an aluminum main reflector (surface accuracy < 0.008 inch RMS) and a carbon fibre composite sub-reflector (surface accuracy < 0.002 inch RMS). The elevation-over-azimuth 2-axis pedestal includes a cable wrap system with ample customer cabling space and an optional hub for RF equipment integration. Optional features include a de-icing system, environmentally controlled hub, and adjustable polarization. The M&C interface provides full remote monitoring and operation via Ethernet. Operating range is -30 to +60 °C. Calian has deployed 7m SATCOM systems for gateway operations, broadcast, and telemetry/tracking/command (TT&C) applications worldwide for more than four decades.
