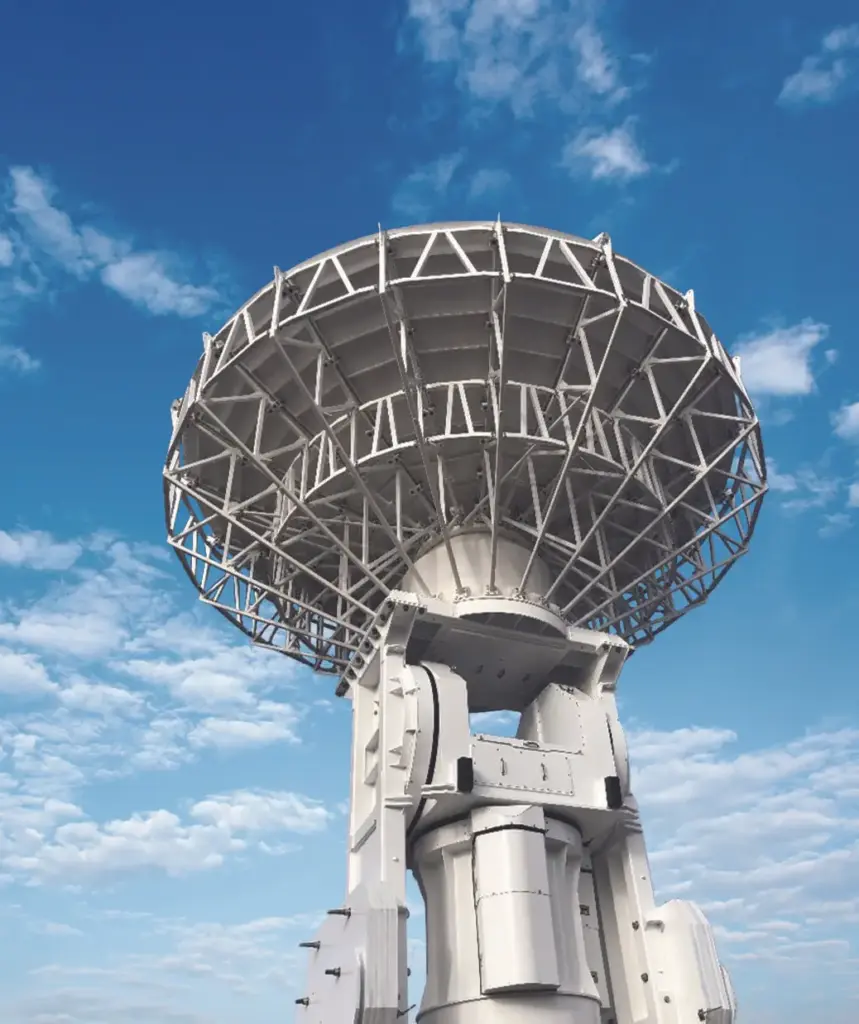

9.2m LEO Earth Station Antenna
Calian (SatService)
9.2m high-performance earth station antenna optimized for LEO and MEO satellite tracking in Ka, Ku, X, C and S bands.
Typed specifications145 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ku Rx 10.7-12.75 GHz, Tx 12.7-14.5 GHz · datasheet p.3 Ka Rx 17.7-21.5 GHz, Tx 27.5-31.0 GHz | S Rx 2.17-2.3 GHz, Tx 1.98-2.12 GHz | C Rx 3.4-4.2 GHz, Tx 5.725-6.725 GHz | X Rx 7.25-7.75 GHz, Tx 7.9-8.4 GHz +8
- Antenna diameter
- 9.2 m datasheet p.1
- Frequency range
- 17 700 MHz min · Rx · datasheet p.2 27 500 MHz min · Tx | 21 500 MHz max · Rx | 31 000 MHz max · Tx | 3 400–4 200 MHz C-band Rx +25
- G/T
- 29.1 dB/K C-band Rx 3.4 GHz, clear sky with 30 K LNA @ 20 deg elevation · datasheet p.4 30.1 dB/K C-band Rx 3.8 GHz, clear sky with 30 K LNA @ 20 deg elevation | 31 dB/K C-band Rx 4.2 GHz, clear sky with 30 K LNA @ 20 deg elevation | 39.3 dB/K Clear Sky with 120 K LNA @ 20° Elevation | 29.1 dB/K Clear Sky with 30 K LNA @ 20° Elevation +25
- Supply voltage
- 220 V Auxiliary circuits (optional) · datasheet p.1 208 V auxiliary circuits, split phase 60 Hz | 208 V De-icing system | 200 V min · Drive systems | 240 V max · Drive systems +5
- Data interface
- Ethernet M&C and user interface · datasheet p.1
- Operating temperature
- -30 °C min · datasheet p.2 60 °C max
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector dual reflector Cassegrain design · datasheet p.1
- Mount / pedestal
- az-el with tilt (3-axis) 3 axis motion (no keyhole), elevation over azimuth, with tilt · datasheet p.1
- Polarization
- circular CP broadband feed option · datasheet p.1 linear LP broadband feed option
- Antenna gain
- 50.2 dBi C-band Rx @4.200 GHz · datasheet p.4 54.3 dBi C-band Tx @6.725 GHz | 63.9 dBi Ka-band Rx @21.5 GHz | 66.7 dBi Ka-band Tx @31 GHz | 59.5 dBi Ku-band Rx @12.75 GHz +5
- Transmit power
- 2 500 W C-band power handling per port (CW) · datasheet p.4 650 W Ka-band power handling per port (CW) | 1 500 W Ku-band power handling per port (CW) | 5 000 W S-band power handling per port (CW) | 2 000 W X-band power handling per port (CW)
- Beamwidth (3 dB)
- 0.62 ° C-band Rx, -3dB · datasheet p.4 0.38 ° C-band Tx, -3dB | 0.12 ° Ka-band Rx, -3dB | 0.08 ° Ka-band Tx, -3dB | 0.2 ° Ku-band Rx, -3dB +5
- Cross-pol isolation
- 32.78 dB C-band Rx and Tx · datasheet p.4 32.78 dB Ka-band Rx and Tx | 35 dB Ku-band Rx and Tx | 32.78 dB S-band Rx and Tx | 32.78 dB X-band Rx and Tx
- VSWR
- 1.25 C-band feed interface · datasheet p.4 1.25 Ka-band feed interface | 1.25 Ku-band feed interface | 1.25 S-band feed interface | 1.3 X-band feed interface
- Tracking
- step track datasheet p.1 autotrack (monopulse) monopulse | program track (TLE) program track, NORAD TLE, IESS-412
- Survival temperature
- -40 °C min · datasheet p.2 70 °C max
- Quasi-static load
- 0.3 g horizontal and vertical · datasheet p.2
- Tracking speed
- 12 °/s azimuth · datasheet p.1 6 °/s elevation | 12 °/s max · up to 12 deg/s in azimuth | 6 °/s max · up to 6 deg/s in elevation
- Pointing accuracy
- 0.015 ° max · < 0.015° · datasheet p.1 0.004 ° max · tracking accuracy < 0.0040°
- Azimuth travel
- -270–270 ° +/-270 deg in azimuth (540 deg continuous) · datasheet p.1
- Min elevation
- 0 ° datasheet p.1
- Elevation travel
- 0–90 ° datasheet p.1
- Operational wind speed
- 27.8 m/s gusting up to 100 kph (62 mph) · datasheet p.2 20 m/s operational 72 kph (45 mph) | 55.6 m/s survival, 200 kph (125 mph) in stow position
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Reflector diameter
- 9.2 m
- Antenna type
- Dual reflector Cassegrain
- Mount
- Elevation over azimuth with tilt
- Main reflector material
- Aluminum
- Main reflector surface accuracy
- < 0.008" RMS
- Sub reflector material
- Carbon fibre composite
- Sub reflector surface accuracy
- < 0.002" RMS
- Frequency bands
- Ka, Ku, X, C, S
- Orbits
- LEO, MEO
- Operating temperature
- -30 to +60 °C
- Survival temperature
- -40 to +70 °C
About
Calian’s 9.2m LEO Earth Station Antenna is designed for tracking low-Earth orbit (LEO) and medium-Earth orbit (MEO) satellite constellations including high-throughput broadband networks. It features a dual-reflector Cassegrain optical design with an elevation-over-azimuth mount with tilt, enabling high-slew-rate operation required for LEO passes. The aluminum main reflector achieves surface accuracy below 0.008 inch RMS, while the carbon fibre composite sub-reflector achieves below 0.002 inch RMS. Supported frequency bands include Ka, Ku, X, C, and S. The system is configurable with an optional RF equipment hub of up to 10 ft diameter, de-icing system, and environmentally controlled hub. Remote M&C is provided via an Ethernet interface with multiple tracking modes. Calian has deployed LEO ground station antennas for satellite operators globally, with heritage on programs including Canadian government LEO satellite tracking.
