Ka/Q/V-Band Gateway Antenna
Calian (SatService)
10m carbon fibre Ka/Q/V-band gateway earth station antenna for high-capacity GEO, LEO, and MEO satellite systems.
Typed specifications30 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka Ka-Tx 27.5-31.0 GHz · datasheet p.2 Q Q-Rx 37.5-42.5 GHz | V V-Tx 47.2-51.4 GHz
- Antenna diameter
- 10 m 10m RF Specification · datasheet p.2
- Frequency range
- 27.5 - 31.0 Ka-Tx · datasheet p.2 27 500–31 000 MHz Ka-band Tx | 37 500–42 500 MHz Q-band Rx | 37 500–42 500 MHz Q-Rx | 47 200–51 400 MHz V-band Tx +1
- G/T
- 42.8 dB/K Q-Rx @40.0 GHz, 30 deg El, 230K LNA, including input losses · datasheet p.2 42.8 dB/K Q-Rx, 30° El, 230K LNA
- Data interface
- Ethernet simplified interface via Ethernet · datasheet p.2
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector composite carbon fiber reflector, medium to large aperture · datasheet p.1
- Mount / pedestal
- az-el 3-axis control: azimuth, elevation, polarization · datasheet p.2
- Polarization
- dual circular transmit and receive, Q/V/Ka · datasheet p.2 circular
- Antenna gain
- 66.9 dBi Ka-Tx @30.0 GHz, 0.25 dB margin · datasheet p.2 69.2 dBi Q-Rx @40.0 GHz, 0.25 dB margin | 71.4 dBi V-Tx @50 GHz, 0.25 dB margin
- Cross-pol isolation
- 30 dB crosspol, axial ratio 0.5, Q/V/Ka · datasheet p.2
- VSWR
- 1.25 1.25:1 (return loss 19 dB), Q/V/Ka · datasheet p.2
- Tracking
- step track datasheet p.2 autotrack (monopulse) Monopulse tracking, 2 channels | program track (TLE) Program Track
- Tracking speed
- 1 °/s avg. velocity (az or el) · datasheet p.2
- Azimuth travel
- -225–225 ° azimuth travel (continuous), +/- 225 deg · datasheet p.2
- Min elevation
- 3 ° datasheet p.2
- Elevation travel
- 3–90 ° elevation travel (continuous) · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Reflector diameter
- 10 m
- Antenna type
- Dual reflector
- Main reflector material
- Carbon fibre composite
- Sub reflector material
- Carbon fibre composite
- Frequency bands
- Ka, Q-V
- Orbits
- GEO, LEO, MEO
About

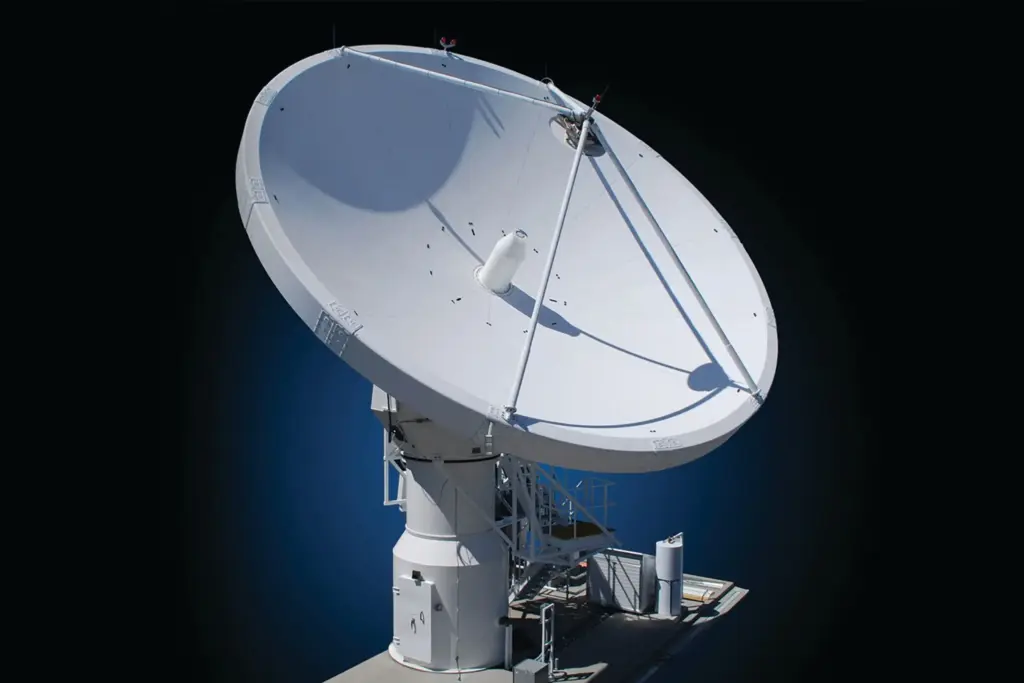

Calian’s Ka/Q/V-Band Gateway Antenna is a 10-metre earth station designed for high-capacity satellite gateway applications at Ka, Q, and V frequency bands, enabling operators to exploit high-throughput satellite capacity on modern GEO and non-geostationary (NGSO) constellations. Both the main and sub reflectors are constructed from carbon fibre composite, delivering excellent surface accuracy and thermal stability required for millimeter-wave operation. The system is compatible with GEO, LEO, and MEO orbits. The pedestal provides ample space for RF equipment. Optional de-icing, environmentally controlled hub, and adjustable polarization are available. The M&C interface uses Ethernet for full remote operation and monitoring. Ka/Q/V gateways are increasingly critical for next-generation HTS and broadband satellite networks requiring frequency reuse and high spectral efficiency.
