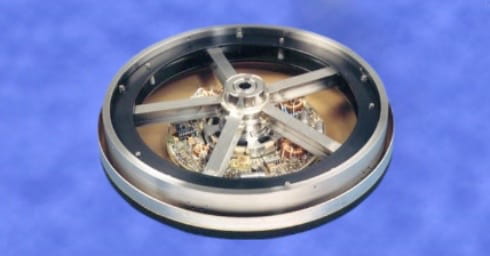

TELDIX RSI 68 Momentum and Reaction Wheels
Collins Aerospace
High-capacity TELDIX momentum and reaction wheels with internal WDE at 14 to 68 Nms, for large satellites weighing 1,500 to 5,000 kg.
Typed specifications3 values
Discloses 1 of 10 fields engineers filter by in this category (category median 5).
- Angular momentum storage
- 68 N·m·s as published, mode unspecified · vendor page (catalogue a
- Design lifetime
- 15 years as published, mode unspecified · vendor page (catalogue a
- Flight heritage
- 7,300+ years cumulative in-orbit operational time product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Momentum range
- 14 to 68 Nms
- Wde
- Internal Wheel Drive Electronics
- Target platform
- Satellites 1,500–5,000 kg
- Design lifetime
- > 15 years
- Flight heritage
- 7,300+ years cumulative in-orbit operational time
- Mode
- Momentum wheel or reaction wheel
About
The Collins Aerospace TELDIX RSI 68 is a high-capacity momentum and reaction wheel with internal Wheel Drive Electronics (WDE) providing angular momentum storage of 14 to 68 Nms. Designed for large spacecraft attitude control systems in the 1,500 to 5,000 kg class, the RSI 68 leverages more than 40 years of TELDIX space-wheel engineering and 7,300 years of cumulative in-orbit operational heritage. The full TELDIX family covers spacecraft from 30 kg up to 7,000 kg with momentum storage spanning 0.04 to 68 Nms, allowing customers to select the right wheel for any mission. The RSI 68 features a modular architecture of independently space-qualified subsystems (rotor, motor, bearing unit, and electronics), hermetic sealing for long service life, and optimization for minimum power/loss torque and volume/mass. It operates as both a momentum wheel and a reaction wheel with a design lifetime exceeding 15 years.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
