Caiman
Dragonfly Aerospace

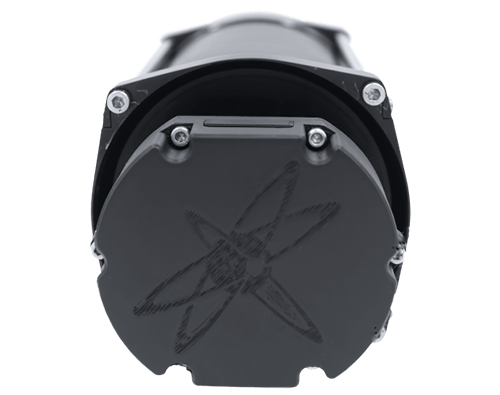

The Caiman is a high-resolution multispectral imager for 6U CubeSats, offering maximum achievable resolution within its form factor and unmatched image detail for small satellite platforms.
Typed specifications49 values
Discloses 8 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 6.5 m MS, multispectral, at 500 km · datasheet p.1 6.5 m Multispectral MS at 500 km | 3.25 m Multispectral PAN at 500 km | 3.25 m PAN, multispectral, at 500 km | 3.25 m RGB at 500 km +1
- Mass
- 1 400 g incl. electronics · datasheet p.1
- Envelope (L×W×H)
- 3U (100 mm x 100 mm x 250 mm with rear-mounted nCCM) datasheet p.1
- Swath width
- 13 km at 500 km · datasheet p.1
- Spectral bands
- 11 MS · datasheet p.1 11 multispectral (11 x MS)
- Supply voltage
- 5 V nom. · 5V DC · datasheet p.1 5 V nom. · DC
- Power consumption
- 10 W max · Imaging mode · datasheet p.1 4 W max · Readout mode
- Data interface
- LVDS datasheet p.1 SPI TMTC | SpaceWire | I2C TMTC | SPI +7
- Operating temperature
- 10 °C min · datasheet p.1 30 °C max | 10–30 °C
- TRL
- 9 datasheet p.1 9
- Camera type
- RGB datasheet p.1 multispectral
- Scan mode
- pushbroom multispectral · datasheet p.1 frame RGB (snap shot)
- Reference altitude
- 500 km datasheet p.1
- Volume
- 3 U datasheet p.1
- Survival temperature
- -20 °C min · datasheet p.1 55 °C max | -20–55 °C
- Bit depth
- 10 bit multispectral (10-bit or 12-bit) · datasheet p.1 8 bit RGB (8-bit or 10-bit) | 12 bit multispectral (10-bit or 12-bit) | 10 bit RGB (8-bit or 10-bit)
- On-board storage
- 128 GB datasheet p.1
- On-board compression
- lossless (CCSDS 122 / JPEG-LS) J2K lossless · datasheet p.1 lossy (JPEG / JPEG 2000) J2K lossy | none (raw) RAW
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier34 lines, in the manufacturer's own wording
- Spatial resolution (GSD) at 500 km (RGB)
- 3.25 m
- Swath at 500 km (RGB)
- 13 km
- Mass (incl. electronics) (RGB)
- 1.4 kg
- Spectral bands (RGB)
- Standard RGB
- Imager type (RGB)
- Snap shot
- Physical size (RGB)
- 3U (100 mm x 100 mm x 250 mm with rear-mounted nCCM)
- Data format (RGB)
- 8-bit or 10-bit
- Integrated mass data storage (RGB)
- 128 Gigabytes
- Compression (RGB)
- RAW or J2K lossless or lossy
- Data interface (RGB)
- LVDS, SpaceWire
- Tmtc interface (RGB)
- SPI, I2C, CAN, RS422/ RS485
- Power usage (imaging mode) (RGB)
- < 10 W
- Power usage (readout mode) (RGB)
- < 4 W
- Power supply (RGB)
- 5 V DC
- Operating temperature (RGB)
- +10°C to +30°C
- Survival temperature (RGB)
- -20°C to +55°C
- TRL (RGB)
- 9
- Spatial resolution (GSD) at 500 km (MULTISPECTRAL)
- PAN 3.25 m; MS 6.5 m
- Swath at 500 km (MULTISPECTRAL)
- 13 km
- Mass (incl. electronics) (MULTISPECTRAL)
- 1.4 kg
- Spectral bands (MULTISPECTRAL)
- 11 x MS
- Imager type (MULTISPECTRAL)
- Push broom
- Physical size (MULTISPECTRAL)
- 3U (100 mm x 100 mm x 250 mm with rear-mounted nCCM)
- Data format (MULTISPECTRAL)
- 10-bit or 12-bit
- Integrated mass data storage (MULTISPECTRAL)
- 128 Gigabytes
- Compression (MULTISPECTRAL)
- RAW or J2K lossless or lossy
- Data interface (MULTISPECTRAL)
- LVDS, SpaceWire
- Tmtc interface (MULTISPECTRAL)
- SPI, I2C, CAN, RS422/ RS485
- Power usage (imaging mode) (MULTISPECTRAL)
- < 10 W
- Power usage (readout mode) (MULTISPECTRAL)
- < 4 W
- Power supply (MULTISPECTRAL)
- 5 V DC
- Operating temperature (MULTISPECTRAL)
- +10°C to +30°C
- Survival temperature (MULTISPECTRAL)
- -20°C to +55°C
- TRL (MULTISPECTRAL)
- 9
