SCR-106 / SCR-106HDR X-Band Software-defined Compact Radio
Innoflight
X-band software-defined radio with up to 20 Mbps downlink (SCR-106) or 100 Mbps (SCR-106HDR), on-orbit configurable, flight heritage since 2022.
Key figurescomparable across the catalogue
- Mass
- 0.23 kg
- Power
- 2 W
- Data rate
- 100 Mbps
- TRL
- 9
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Uplink frequency
- L-Band / S-Band
- Downlink frequency
- X-Band
- RF power
- Up to 2 W
- Downlink data rate (SCR-106)
- Up to 20 Mbps
- Downlink data rate (SCR-106HDR)
- Up to 100 Mbps
- Modulation
- BPSK, QPSK, OQPSK, 8PSK
- CubeSat form factor
- 82 x 82 x 25 mm / 230 g / 3.5-30 W
- SmallSat form factor
- 98 x 82 x 33 mm / 290 g / 3.5-30 W
- Options
- AES-256 (commercial) or KI-103 (Type 1) encryption
- TRL / MRL
- 9 / 9
- Flight heritage
- Since 2022
About

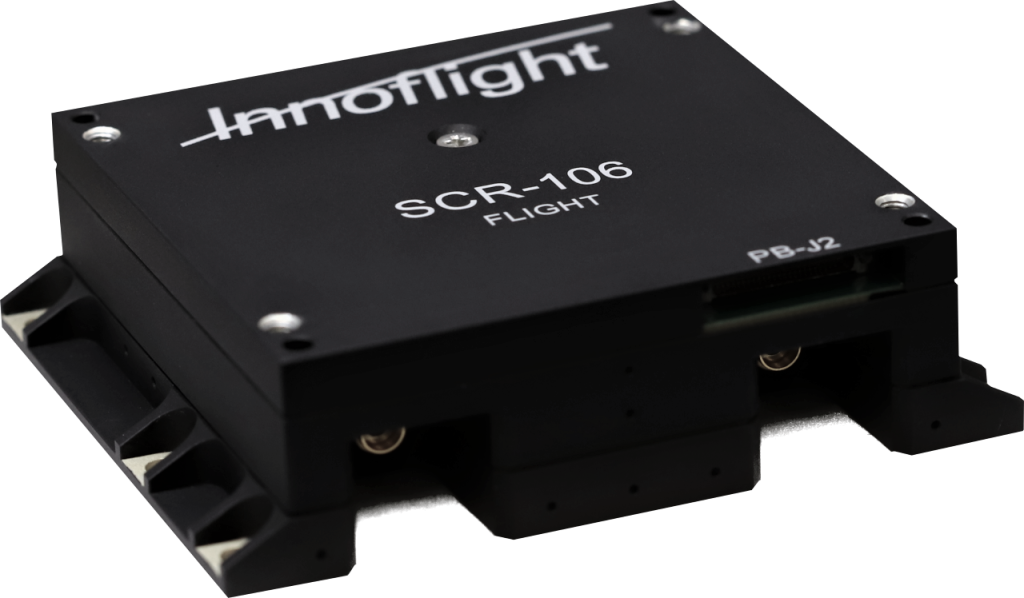

The SCR-106 and SCR-106HDR are X-Band Software-defined Compact Radios (SCR) from Innoflight’s communications and networking line.
Overview: on-orbit configurable; ranging support (PN / PRN).
Key characteristics: uplink frequency L-Band / S-Band, downlink frequency X-Band, RF power up to 2 W, downlink data rate up to 20 Mbps for the SCR-106 and up to 100 Mbps for the SCR-106HDR, modulation BPSK, QPSK, OQPSK and 8PSK.
Options: AES-256 (commercial) or KI-103 (Type 1) encryption.
The unit is offered in CubeSat and SmallSat form factors and has been flying since 2022 at TRL 9 / MRL 9.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
