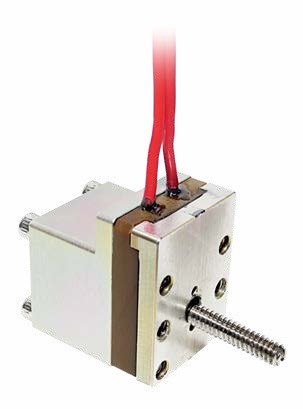

NEA Model 9040 Miniature Hold Down & Release Mechanism (HDRM)
Ensign-Bickford Aerospace & Defense (EBAD)
A non-pyrotechnic Hold Down & Release Mechanism (HDRM) for spacecraft, supporting release loads up to 250 lbf with ultra-low shock.
Key figurescomparable across the catalogue
- Mass
- 0.014 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Proof Load Rating
- 300 lbf (1,300 N)
- Release Load Rating
- 250 lbf (1,100 N)
- Output Shock @ Preload
- <300 g's @ 250 lbf (1,112 N)
- Fuse Wire Resistance
- 0.8 - 1.8 Ω
- Actuation Current
- 3.0 Amps for 50 ms
- No-Fire Current
- 250 mA
- Release Time
- <50 ms
- Temperature Range
- -60°C to 125°C
- Maximum Angular Misalignment
- 3° Cone
- Mass
- <13.6 g (.03 lbm)
About
EBAD’s NEA® Model 9040 Miniature is a non-pyrotechnic Hold Down & Release Mechanism (HDRM) designed for the spacecraft market. It supports release loads up to 250 lbf (1,100 N) and is characterized by its ultra-low release shock (<300 g's @ 250 lbf). NEA® mechanisms were first fielded in 1998 aboard the Intelsat 8 (PAS-8) Geostationary satellite for antenna and solar array release, and have since seen broad industry adoption on LEO, GEO, and scientific missions. EBAD’s NEA® mechanisms have been used on more than 750 spacecraft and have thousands of on-orbit actuations without failure. This mechanism utilizes Non-Explosive Actuator (NEA®) technology for medium-to-high preload applications and offers wide temperature performance. EBAD manufactures thousands of space mechanisms annually, meeting demanding quality requirements and offering robust industrial capacity for high-volume constellation programs. The device has a proof load rating of 300 lbf (1,300 N) and a maximum angular misalignment of 3° Cone.
