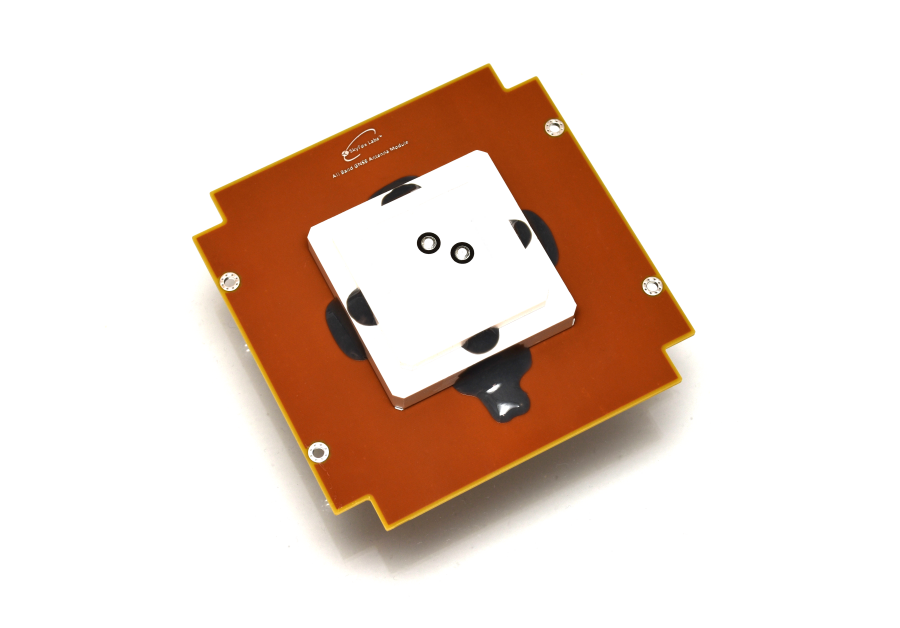

piPATCH-AllBand-TC
SkyFox Labs s.r.o.
Active All-Band CubeSat GNSS patch antenna covering GPS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6 and BeiDou B1/B2a/B2b for Tuna-Can CubeSat deployers.
Typed specifications27 values
Discloses 5 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- other BeiDou B1/B2a/B2b · datasheet p.2 other Galileo E1/E5a/E5b/E6 | other GLONASS G1/G2/G3 | GNSS L1/L2/L5 GPS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou…
- Peak gain
- 20 dBi Lower band and Upper band · datasheet p.2
- Mass
- 139 g datasheet p.2
- Envelope (L×W×H)
- 98×98×+13.5/-8 mm datasheet p.2
- Antenna type
- patch datasheet p.2 stacked patch dual band stacked ceramic patch antenna, 50×50 mm patch
- Supply voltage
- 3.3 V nom. · datasheet p.2 2.7–5.5 V | 2.7–5.5 V power supply
- Operating temperature
- -40–85 °C datasheet p.2
- Export status
- EU dual-use regulated (Dual Use) goods, export licence from the Czech Min… · datasheet p.6
- Passive or active
- active with LNA two wideband RF chains with SAW filters and LNAs · datasheet p.2
- RF connector
- MCX MCX-F straight (right-angle on request) · datasheet p.2 MCX MCX-F, Right-angle (on request) | MCX MCX-F, Straight | MCX
- Connector
- MCX-F datasheet p.2
- Survival temperature
- -55–100 °C datasheet p.3 -55–100 °C storage
- Satellite class
- CubeSat Active GNSS antenna for CubeSats & Microsats · datasheet p.2 microsat 10-100 kg Microsatellites | microsat 10-100 kg
- RF ports
- 1 single MCX-F connector, signal + power · datasheet p.2
- Mounting
- mounted to the satellite structure using four M3 flat head screws; mount in the centre on top of a flat conductive surface at least 0.2 mm thick; antenna footprint 98×82.6 mm; mounting holes DC-insulated from RF connector GND datasheet p.5
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Type
- Active All-Band CubeSat GNSS Antenna with LNAs
- Bands covered
- GPS L1, L2, L5; GLONASS G1, G2, G3; Galileo E1, E5a, E5b, E6; BeiDou B1, B2a, B2b
- GPS l1 SNR
- 49-51+ dBc-Hz (close-to-zenith)
- GPS l2 SNR
- 45-50+ dBc-Hz (close-to-zenith)
- GPS l5 SNR
- 45-50+ dBc-Hz (close-to-zenith)
- Glonass g1 SNR
- 45-53+ dBc-Hz (close-to-zenith)
- Galileo e1 SNR
- 48-51+ dBc-Hz (close-to-zenith)
- RF path gain
- better than +20 dB (lower and upper band)
- Dimensions
- 98 x 98 mm, low profile, MCX-F connector
- Mass
- 139 g (excluding mounting screws)
- Power supply
- 2.7-5.5 V, 3.3 V nominal @ ~30 mA, powered via RF coax
- Mounting
- Tuna Can deployer slot / Z-face CubeSat mount
- Dual use goods
- YES
- Hs code
- 8529.10.69
- Lead time
- 2-4 weeks + shipping
- Country of origin
- Czech Republic
About

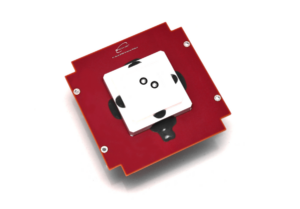

The piPATCH-AllBand-TC is a Space-Friendly, active, All-Band CubeSat GNSS antenna based on state-of-the-art ceramics, built for Tuna-Can deployer slots with a Z-face CubeSat mount. It is a top-notch, high-gain antenna with low noise, RF filters and a uniform hemispherical radiation pattern intended for Nadir/Zenith-oriented satellites, ensuring orientation towards the GNSS zenith. It simultaneously receives GPS L1, L2, L5; GLONASS G1, G2, G3; Galileo E1, E5a, E5b, E6; and BeiDou B1, B2a, B2b bands with SNR figures of 42-53+ dBc-Hz for close-to-zenith satellites, using an Active Input-to-Output RF path with lower and upper band gains better than +20 dB. The module measures 98×98 mm with a low profile and MCX-F connector, is powered from 2.7-5.5 V (3.3 V nominal @ ~30 mA) supplied over the RF coax, and is protected by SAW filters and EMI shielding. It fits all known CubeSat structures with Tuna-Can deployer slot options, and mounting hole positions can be modified free of charge on request. Available as Flight Model (FM), Engineering Model (EM, with red Remove-Before-Flight finish for EMI/EMC and SNR testing prior to launch), and OEM Flight Model (unmarked, no PCB logos).
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
