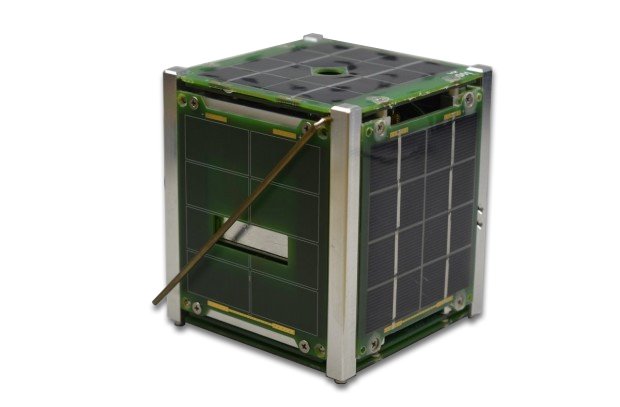

OrbiCraft-Pro 1U Flight (SXC1-GA)

Typed specifications24 values

Discloses 4 of 7 fields engineers filter by in this category (category median 3).

Mass

950 g

max · mass assembled (w/o payload), not more than · datasheet p.3

Envelope (L×W×H)

100x100x113.5 mm

at rails (w/ deployment system pressed) · datasheet p.3 108x108x113.5 mm w/ springs pressed and antenna folded

Data interface

CAN

on-board interface CAN2.0 B · datasheet p.3

Operating temperature

-30–60 °C

operating temperature range · datasheet p.3

Form factor

1U

CubeSat 1U · datasheet p.2

Orbit

LEO

power figures stated for LEO · datasheet p.3

Max payload mass

430 kg

max · max mass of payload, SXC1 column of Table 1 (line-level figure) · datasheet p.2

Payload envelope (L × W × H)

80x70x20 mm

available volume for payload, not less than (see SXC ICD) · datasheet p.3

Power available to payload

0.5 W

max · average power available to payload on LEO, not more than (to … · datasheet p.3 16 W max · peak (max available capacity of payload), SXC1 column of Table 1

Regulated voltages for the payload

5 V

nom. · output voltage 5 V ±0.5 V; output current not more than 2 A · datasheet p.3

Battery capacity

39 Wh

min · battery capacity, not less than; Li-Ion 2S 5000 mAh, rated 7.4 V · datasheet p.3

Attitude control

other

Electromagnetic; B-DOT rotation damping, orientation determin… · datasheet p.2

Payload data downlink rate

9.6 kbps

max · UHF radio channel 435-437 MHz, AX.25; 9600 bit/s default, 480… · datasheet p.3

Radio band

UHF

radio channel 435-437 MHz, FM, AX.25 · datasheet p.3

Subsystems included

battery

battery capacity 39 Wh, Li-Ion 2S 5000 mAh (Table 2) · datasheet p.3 solar arrays number of solar panels: 6 pcs. (Table 2)  |  ADCS type of ADCS: Electromagnetic (Table 1)  |  UHF or VHF radio UHF command radio link: Included

Max satellite wet mass

1.33 kg

max · max mass allowed (w/ payload), not more than · datasheet p.3

Satellite class

CubeSat

CubeSat nanosatellite platform line · datasheet p.1 nanosat 1-10 kg nanosatellite platform line

Form factor, U (number)

1 U

CubeSat 1U · datasheet p.2
