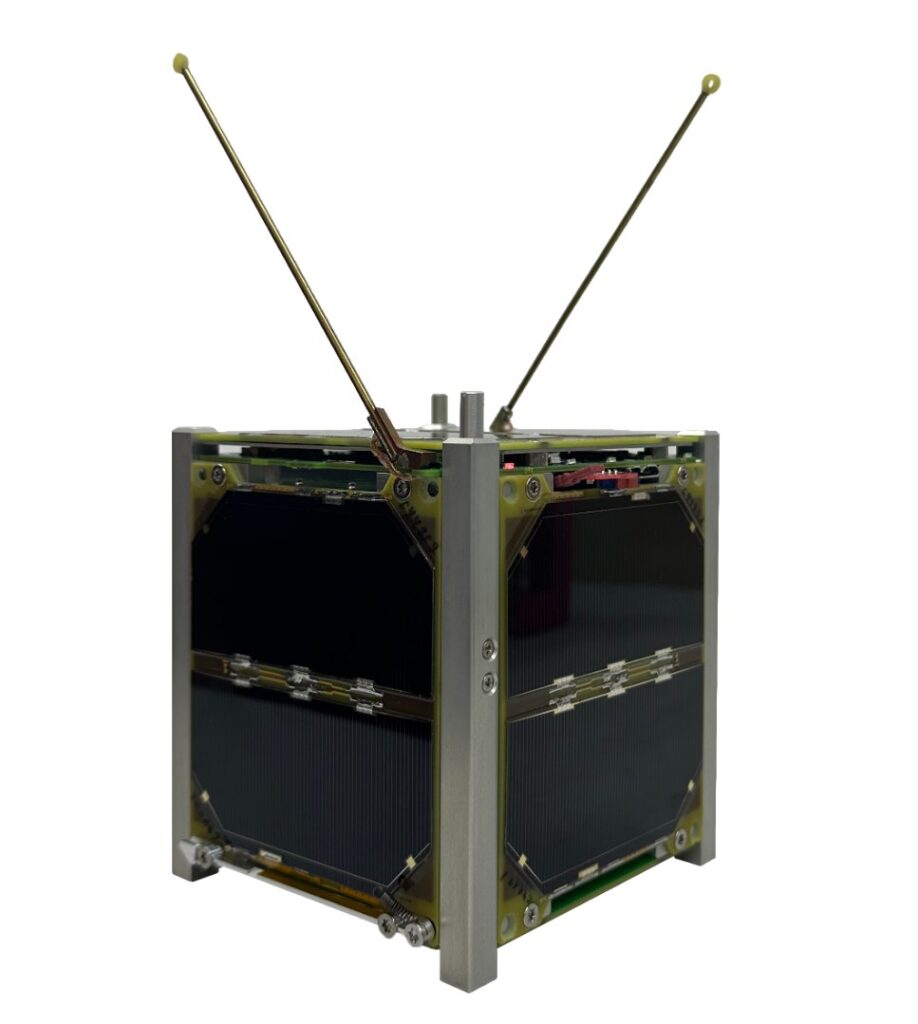

OrbiCraft-Pro 1U CubeSat Platform
SPUTNIX
1U CubeSat satellite platform / assembly kit. The "Flight" (SXC1-GA) version is factory-assembled and tested with GaAs solar panels, ready for payload integration; an "Experimental" (SXC1) lab/educational version is also offered.
Typed specifications26 values
Discloses 4 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 900 g max · SXC1-AS (basic); mass assembled (w/o payload), not more than · datasheet p.3 950 g max · SXC1-GA1-AS; mass assembled (w/o payload), not more than
- Envelope (L×W×H)
- 100x100x113.5 mm all SXC1 modifications; at rails (w/ deployment system pressed) · datasheet p.3 108x108x113.5 mm all SXC1 modifications; w/ springs pressed and antenna folded
- Data interface
- CAN all SXC1 modifications; on-board interface CAN2.0 B · datasheet p.3
- Operating temperature
- -30–60 °C all SXC1 modifications; operating temperature range · datasheet p.3
- Form factor
- 1U all SXC1 modifications; CubeSat 1U · datasheet p.2
- Orbit
- LEO all SXC1 modifications; power figures stated for LEO · datasheet p.3
- Max payload mass
- 430 kg max · all SXC1 modifications; max mass of payload, SXC1 column of T… · datasheet p.2
- Payload envelope (L × W × H)
- 80x70x20 mm all SXC1 modifications; available volume for payload, not les… · datasheet p.3
- Power available to payload
- 16 W max · all SXC1 modifications; peak (max available capacity of paylo… · datasheet p.2 0.2 W max · SXC1-AS (basic); average power available to payload on LEO, n… | 0.5 W max · SXC1-GA1-AS; average power available to payload on LEO, not m…
- Regulated voltages for the payload
- 5 V nom. · all SXC1 modifications; output voltage 5 V ±0.5 V; output cur… · datasheet p.3
- Battery capacity
- 39 Wh min · all SXC1 modifications; battery capacity, not less than; Li-I… · datasheet p.3
- Attitude control
- other all SXC1 modifications; Electromagnetic; B-DOT rotation dampi… · datasheet p.2
- Payload data downlink rate
- 9.6 kbps max · all SXC1 modifications; UHF radio channel 435-437 MHz, AX.25;… · datasheet p.3
- Radio band
- UHF all SXC1 modifications; radio channel 435-437 MHz, FM, AX.25 · datasheet p.3
- Subsystems included
- battery all SXC1 modifications; battery capacity 39 Wh, Li-Ion 2S 500… · datasheet p.3 solar arrays all SXC1 modifications; number of solar panels: 6 pcs. (Table 2) | ADCS all SXC1 modifications; type of ADCS: Electromagnetic (Table 1) | UHF or VHF radio all SXC1 modifications; UHF command radio link: Included
- Max satellite wet mass
- 1.33 kg max · all SXC1 modifications; max mass allowed (w/ payload), not mo… · datasheet p.3
- Satellite class
- CubeSat all SXC1 modifications; CubeSat nanosatellite platform line · datasheet p.1 nanosat 1-10 kg all SXC1 modifications; nanosatellite platform line
- Form factor, U (number)
- 1 U all SXC1 modifications; CubeSat 1U · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Form factor
- 1U CubeSat
- Dimensions
- 108 × 108 × 113.5 mm
- Mass (without payload)
- ≤ 0.95 kg (GaAs)
- Max mass (with payload)
- ≤ 1.33 kg
- Payload volume
- 80 × 70 × 20 mm
- Solar cells
- 6 (GaAs / Si)
- Battery
- Li-Ion 2S 5000 mAh, ≥ 39 Wh
- Supply voltage
- 7.4 V nominal
- Radio
- 435–437 MHz, AX.25, up to 9600 bit/s
- ADCS
- Electromagnetic, B-DOT detumbling
- Bus interface
- CAN 2.0B
- Operating temperature
- −30 … +60 °C
- Variants
- SXC1 (Experimental), SXC1-GA (Flight)
About
1U CubeSat satellite platform / assembly kit. The “Flight” (SXC1-GA) version is factory-assembled and tested with GaAs solar panels, ready for payload integration; an “Experimental” (SXC1) lab/educational version is also offered.
