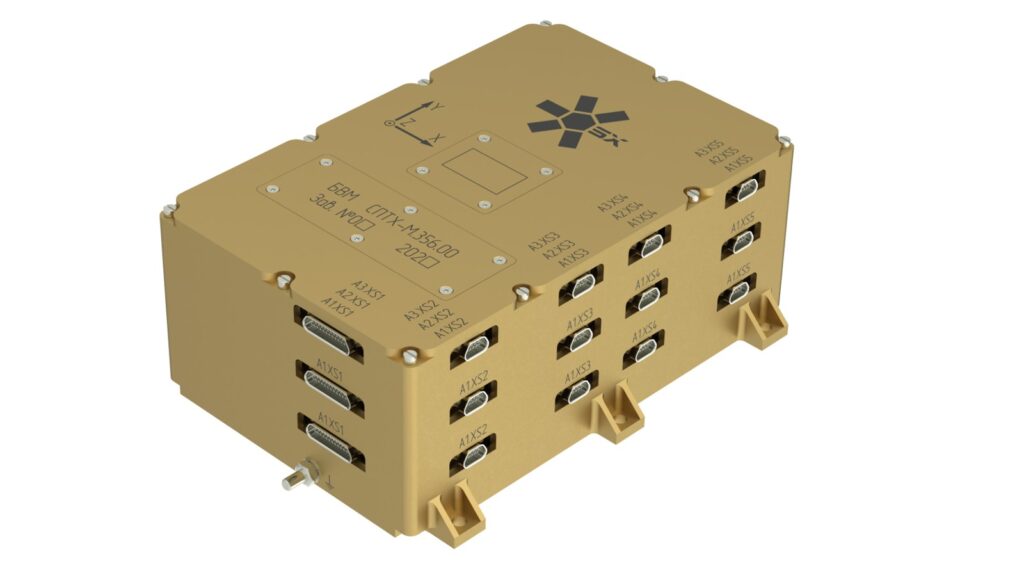

SX-SBOX Onboard Computing (Microsatellite)
SPUTNIX
Onboard computing line of the SX-SBOX instrument suite for microsatellite (Pallada-class) platforms: the onboard computer, a SpaceWire router with onboard mass memory, and flight software.
Typed specifications8 values
Discloses 2 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 860 g description
- Envelope (L×W×H)
- 171 × 111 × 51 mm description
- Supply voltage
- 22 V min · description 34 V max
- Power consumption
- 10 W max · description
- Data interface
- CAN description SpaceWire | MIL-STD-1553
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Family
- Onboard computing (SX-SBOX line)
- Onboard computer sx-sbox-OBC-01
- 171 × 111 × 51 mm, 0.86 kg, ≤10 W; CAN2B, SpaceWire, MIL-STD-1553 (opt)
- Spacewire router + memory sx-sbox-spw-obdh-mem-01
- 8 MB, up to 16 ports, SpaceWire up to 200 Mbit/s, RMAP (ECSS-E-ST-50-52C)
- Flight software
- SX-SBOX-KINOSOFT
- Supply voltage
- 22–34 V (500 V galvanic isolation)
- Interfaces
- CAN 2.0B, SpaceWire
About
Onboard computing line of the SX-SBOX instrument suite for microsatellite (Pallada-class) platforms: the onboard computer, a SpaceWire router with onboard mass memory, and flight software.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
