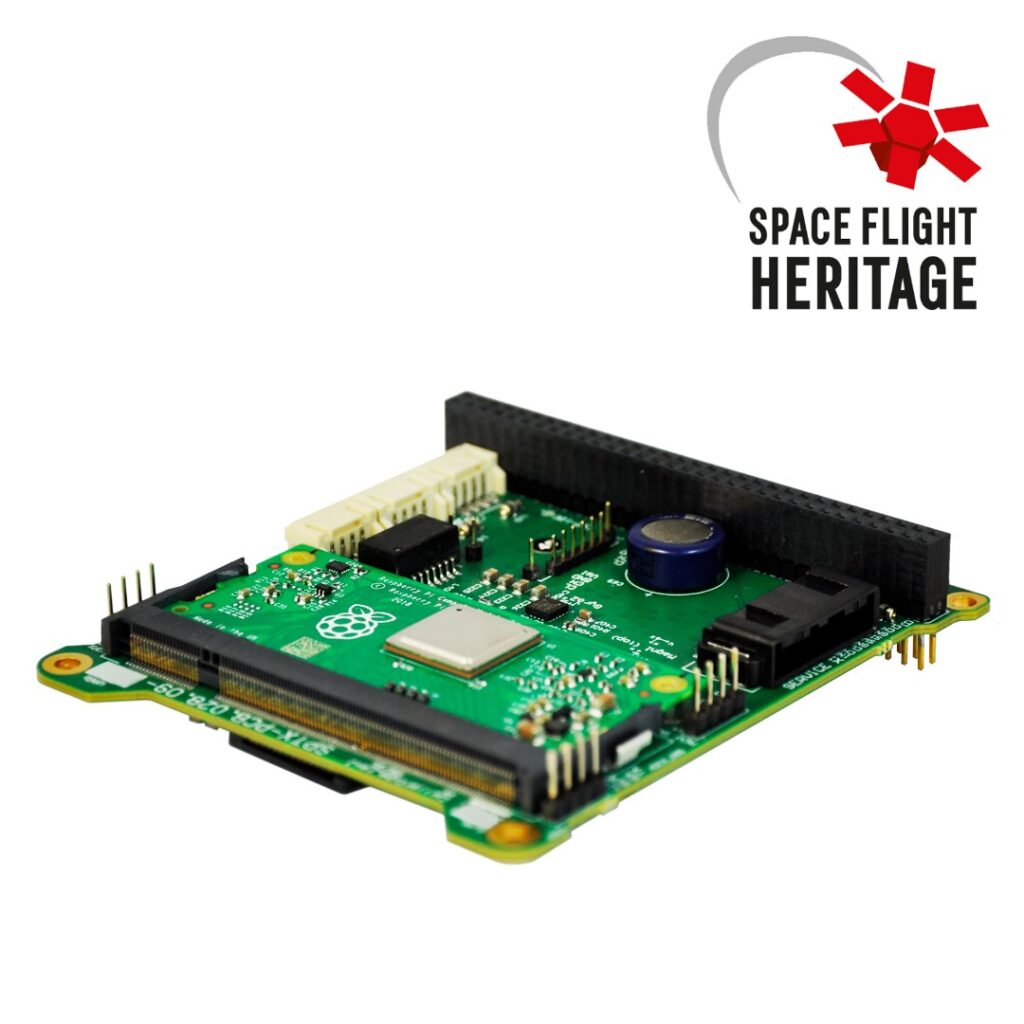

CubeSat OBC / ADCS Motherboard SXC-MB-04-ADC
SPUTNIX
Raspberry Pi CM3+ carrier board with integrated ADCS controller, magnetometer, gyroscope, EM coil driver, temperature sensor, RTC, and 3-channel power switch. CAN bus throughout.
Technical specifications
- Form factor
- PC/104
- Computer
- Raspberry Pi CM3/CM3+
- ADCS
- Integrated standalone controller
- Interfaces
- CAN, SPI, I2C, UART, USB 2.0, Ethernet
- Connectivity
- WiFi hotspot/client module
About
SPUTNIX SXC-MB-04-ADC is a Raspberry Pi Compute Module carrier combining the main OBC, a standalone ADCS controller, and a sensor suite on a single PC/104 board. All onboard devices accessible on CAN bus. Features flexible hierarchy: LP-MCU only mode for efficient energy harvesting, ADCS mode for pointing, or full Raspberry Pi for payload operations. Every programmable device has bootloader with in-flight firmware update.
Integrated subsystems
- Raspberry Pi CM3/CM3+ compute module slot
- Standalone ADCS controller MCU
- 3-axis gyroscope and magnetometer sensors
- Electromagnetic coil driver
- Temperature sensor
- Real-time clock with backup power
- 3-channel power switch
- Raspberry Pi camera connector
- Removable WiFi hotspot/client module
Interfaces on PC/104
- 10 Mbit/s Ethernet
- USB 2.0 HS
- SPI (dual chip select), I2C, UART
- CAN bus with separate power (for external sun sensors)
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
