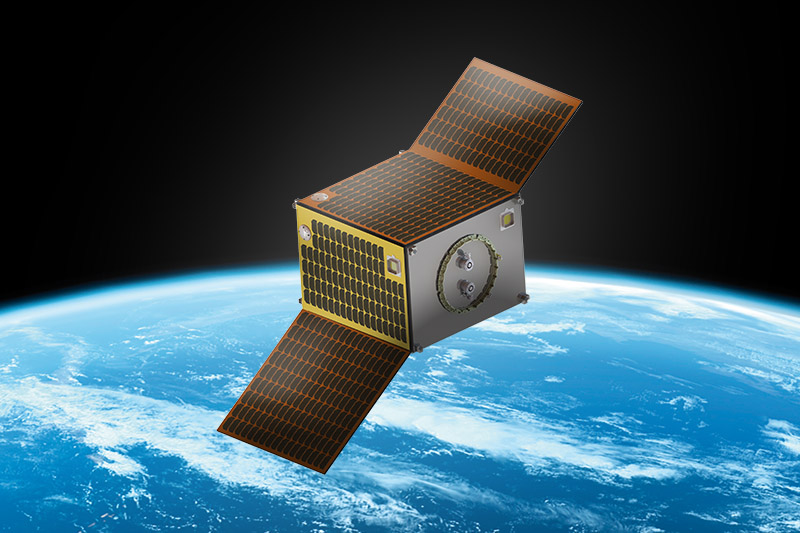

SITAEL S-200 — All-Electric Minisatellite Platform
SITAEL S.p.A.
STRIVING/SITAEL's S-200 is a 200 kg all-electric minisatellite bus with up to 90 kg payload capacity, deployable solar arrays, 10 krad radiation tolerance, star tracker + momentum AOCS — designed for high-resolution EO, SAR, and telecom constellation missions.
Typed specifications30 values
Discloses 5 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 200 kg product page
- Envelope (L×W×H)
- 900 x 700 x 900 mm S/C envelope LxWxH · datasheet p.2
- Design lifetime
- 5 years max · lifetime up to 5 years · datasheet p.2
- Orbit
- VLEO targeted mission: EO SSO in very-LEO @350-800 km · datasheet p.2 SSO targeted mission: EO SSO in very-LEO @350-800 km
- Max payload mass
- 80 kg max · P/L max mass up to 80 kg · datasheet p.2
- Payload envelope (L × W × H)
- 900x700x560 mm P/L allowable volume up to 900x700x560 mm3 · datasheet p.2
- Power available to payload
- 120 W max · P/L avg power consumption up to 120 W · datasheet p.2
- Onboard storage for payload data
- 256 GB max · PDHT data storage up to 256 GB · datasheet p.2
- Power generation (orbit average)
- 510 W peak; S/C power generation · datasheet p.2 200 W max · S/C power generation, orbit average, up to 200 W
- Battery capacity
- 880 Wh Li-Ion · datasheet p.2
- Attitude control
- 3-axis stabilised 3-axis stabilization; star tracker, torque/momentum actuators… · datasheet p.2
- Pointing accuracy
- 0.05 ° max · <0.05°, 3-axis stabilization · datasheet p.2
- Attitude knowledge
- 0.006 ° datasheet p.2
- Propulsion
- included all-electric platform with SITAEL low power Hall effect elect… · datasheet p.1
- Payload data downlink rate
- 400 000 kbps max · PDHT (payload data), X-band · datasheet p.2
- Radio band
- X PDHT X-band, up to 400 Mbps · datasheet p.2 S TT&C S-band, up to 1 Mbps (TM TX)
- Subsystems included
- ADCS high performance AOCS: fine pointing with star tracker, torqu… · datasheet p.1 solar arrays large deployable solar arrays; GaAs TJ, 30% eff. cells | battery Li-Ion, 880 Whr | X-band downlink PDHT X-band, up to 400 Mbps | propulsion SITAEL low power Hall effect electric propulsion subsystem +1
- Max satellite wet mass
- 150 kg max · S/C launch mass <150 kg, smaller of two scaled versions · datasheet p.2 200 kg max · S/C launch mass <200 kg, larger of two scaled versions
- Deployables
- hinges for solar wings large deployable solar arrays · datasheet p.1
- Deployables (as printed)
- Large deployable solar arrays datasheet p.1
- Satellite class
- smallsat 100-500 kg Minisatellite-class Platform, up to 200 kg max launch mass · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Max launch mass
- 200 kg
- Propulsion
- All-electric — Hall effect thrusters
- Payload mass
- up to 90 kg
- Power
- Deployable solar arrays + high-capacity batteries
- AOCS
- Star tracker + momentum actuators (3-axis)
- Radiation tolerance
- up to 10 krad TID
- Orbital autonomy
- Autonomous orbit deployment capability
- Applications
- High-res EO, SAR, telecom constellations
- Service
- STRIVING IOD/IOV — end-to-end from test campaign to launch to operations
About
The SITAEL S-200 is an all-electric minisatellite platform with maximum launch mass of 200 kg, offering up to 90 kg of payload capacity — the largest in SITAEL’s S-series smallsat family. Like the S-75, the S-200 uses Hall effect electric propulsion for orbit raising, station keeping, and controlled deorbit. The platform features deployable solar arrays and high-capacity battery storage for extended payload operations, combined with star trackers and momentum actuators for precise three-axis attitude determination and control. Radiation tolerance is up to 10 krad Total Ionizing Dose (TID), enabling longer mission lives in LEO. The S-200 includes autonomous orbit deployment capability, making it suitable for independent deployment from shared rideshare launches into desired operational orbits. Target applications include high-resolution optical Earth observation, synthetic aperture radar (SAR) missions, and telecommunications constellation satellites. The S-200 is offered through STRIVING, SITAEL’s ESA-backed commercial IOD/IOV service, providing full mission support from pre-launch testing through in-orbit operations.
Documentation
- SatCatalog_-_SITAEL_-_S-200_Microsatellite_Platform_-_Datasheet.pdf PDF source: satcatalog.s3.amazonaws.com ↗
