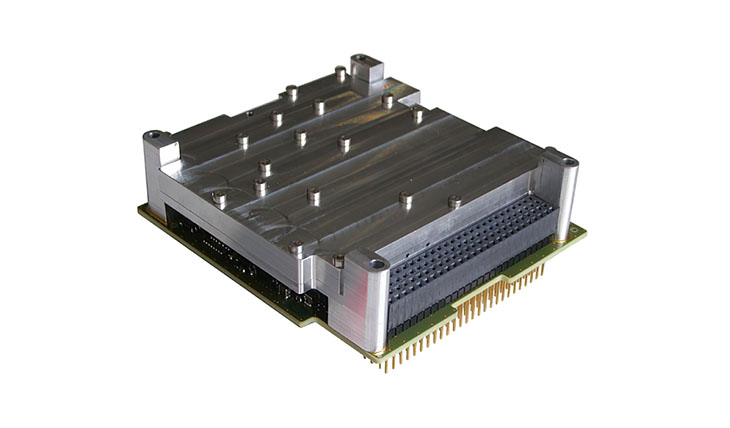

EWC27 – X-Band Transmitter
Syrlinks
The EWC27 is an X-band transmitter designed for small satellites, offering high data rate telemetry up to 100 Mbps and robust transmission in the 8GHz X-band.
Typed specifications8 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Data rate
- 100 000 kbps High DataRate TeleMetry · datasheet p.1
- Design lifetime
- 2 years LEO missions · datasheet p.1
- Flight heritage
- GOMX-3, ESA-Gomspace (2015) datasheet p.1 OHB group (2017) | EYE-SAT, CINES (2017) | OPS-SAT, ESA (2018) | HawkEye 360 (2017/2018) +1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Subsystem
- Telecom Subsystem
- Component type
- Transmitter
- Form factor
- CubeSat
- Vendor
- Syrlinks
- Flight heritage
- Yes
- Status
- In Production
- Data rate
- Up to 100 Mbps
- Lifetime
- 2 years
About
The EWC27 X-Band Transmitter addresses the challenge of low power consumption in small satellites, providing high data rate telemetry up to 100 Mbps (optional) and robust transmission in the X-band (8GHz). It incorporates a smart concept for controlling power amplifier supplies to optimize efficiency for each RF power level, ensuring power consumption is always optimized. The power supply architecture is designed to protect the transmitter against latch-up effects caused by heavy ions in space. Syrlinks’ ‘nano’ radios, including the EWC27, are designed for 2-year lifetime LEO missions, leveraging Syrlinks’ experience from the ROSETTA mission in designing and manufacturing radios for micro and mini satellites. The product quality approach has been refined since the MYRIADE platform and ROSETTA mission with CNES. The EWC27’s design and manufacturing primarily rely on qualified COTS components, with stressing tests performed on QM units. Its architecture inherits from the EWC28 X-Band transmitter, which is already in-flight proven on various missions, notably PROBA-V (ESA/QinetiQ Space nv). The EWC27 XBT can be adapted for Deep Space applications, particularly in terms of frequency band and bitrate. The SME label awarded by CNES highlights Syrlinks’ excellence as a key space supplier.
Documentation
- SatCatalog_-_Syrlinks_-_EWC27_-_X-Band_Transmitter_-_Datasheet.pdf PDF source: satcatalog.s3.amazonaws.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
