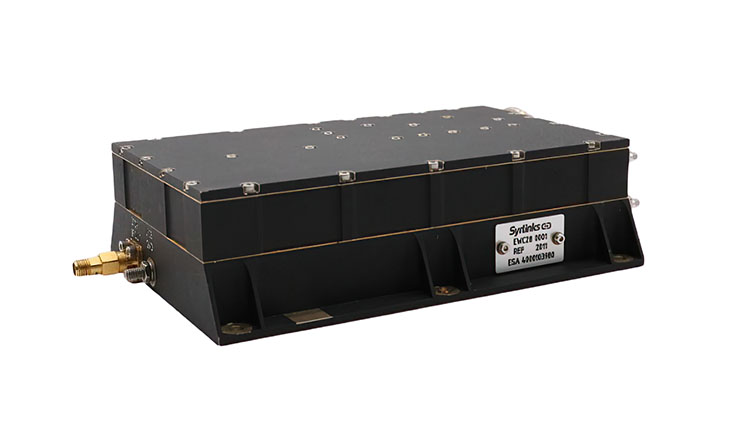

EWC28 – X-Band Transmitter
Syrlinks
The EWC28 is an X-Band Transmitter operating in the 8025–8400MHz frequency range, offering data rates up to 100Mbps and programmable RF output power from 30 to 39dBm.
Key figurescomparable across the catalogue
- Power
- 30 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Name
- EWC28 - X-Band Transmitter
- Vendor
- Syrlinks
- Subsystem
- Telecom Subsystem
- Component Type
- Transmitter
- Form Factor
- SmallSat
- Heritage
- Yes
- Subsystem
- Telecom Subsystem
- Component Type
- Transmitter
- Form Factor
- SmallSat
- Vendor
- Syrlinks
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
About
The EWC28 is an X-Band Transmitter designed for space missions, with a heritage on the Proba-V mission and selected for a lunar mission (EWC28-DS variant). It operates in the 8025–8400MHz frequency range and supports data rates up to 100Mbps. The RF output power is programmable from 30 to 39dBm, with an optional +40dBm, in 1dB steps. The equipment is designed for a 5-year lifetime in Low Earth Orbit (LEO). It includes a DC-DC converter with galvanic isolation. The power supply architecture is specifically designed to protect the transmitter against latch-up effects caused by heavy ions in space, incorporating an electronic fuse after the main DCDC converter and current limitations for individual functions. A smart strategy is implemented for controlling the internal power amplifier’s supplies to optimize efficiency across different RF power levels. The EWC28 XBT can be adapted for Deep Space missions, particularly in terms of frequency band and bitrate, with the EWC28-DS variant already commissioned for a lunar mission.
Documentation
- SatCatalog_-_Syrlinks_-_EWC28_-_X-Band_Transmitter_-_Datasheet.pdf PDF source: satcatalog.s3.amazonaws.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
