Spacemanic CubeSat Platforms
Spacemanic s.r.o.
Modular CubeSat satellite platforms offered in 1U–3U, 6U–8U, and 12U–16U configurations, available for dedicated or rideshare launch.
Typed specifications73 values
Discloses 4 of 7 fields engineers filter by in this category (category median 3).
- Data interface
- RS-422 1x RS422 CSP v1 (optional) · datasheet p.2 other ADC, PWM (possible extension through CDHS) | CAN platform communication bus: 1x CAN CSP v1 | I2C platform communication bus: 1x I2C CSP v1; also via CDHS exte… | RS-485 platform communication bus: 1x RS485 CSP v1 +3
- Design lifetime
- 5 years max · design lifetime up to 5 years · datasheet p.3
- Form factor
- 12U CORVUS platform size 12U · datasheet p.2 16U CORVUS platform size 16U | 1U CORVUS platform size 1U | 2U CORVUS platform size 2U | 3U CORVUS platform size 3U +2
- Max payload mass
- 16 kg max · 12U, with AOCS · datasheet p.2 22 kg max · 16U, with AOCS | 1 kg max · 1U, no AOCS | 500 kg max · 1U, with AOCS | 2.5 kg max · 2U, no AOCS +7
- Payload volume, U
- 0.5 U 1U, no AOCS · datasheet p.2 0.25 U 1U, with AOCS | 1.5 U 2U, no AOCS | 1.25 U 2U, with AOCS | 1 U 2U, with AOCS & S Band +9
- Regulated voltages for the payload
- 3.3 V 1U: 1x reg. 3.3 V plus 4x configurable reg. channels 3.3/5 V,… · datasheet p.2 5 V 1U: 1x reg. 5 V plus 4x configurable reg. channels 3.3/5 V, m… | 3.3 V 2U-16U: 6x configurable reg. channels 3.3/5/12 V and 3x confi… | 5 V 2U-16U: configurable reg. channels 3.3/5/12 V, 4 A per channel | 12 V 2U-16U: configurable reg. channels 3.3/5/12 V, 4 A per channe…
- Unregulated bus for the payload
- 6.8–8.4 V 1U: 1x unreg. VBat. (6.8 – 8.4 V) · datasheet p.2 13.6–16.8 V 2U-16U: 1x unreg. VBat. (13.6 – 16.8 V)
- Battery capacity
- 46 Wh 2U | 3U: baseline 46 Wh, 4 cells, possible increase based on … · datasheet p.2 92 Wh 6U | 8U | 12U | 16U: baseline 92 Wh, 8 cells, possible increa… | 23 Wh max · 1U: up to 23 Wh, 2 cells
- Pointing accuracy
- 1 ° APE 1.0° @ 1σ, baseline for 6U with STR (star tracker); slew … · datasheet p.3
- Attitude knowledge
- 0.5 ° AKE 0.5° @ 1σ, baseline for 6U with STR (star tracker) · datasheet p.3
- Payload data downlink rate
- 250–512 kbps S Band down 2200–2290 MHz: baseline 6U-16U, optional 2U | 3U · datasheet p.3
- Radio band
- S S Band down 2200–2290 MHz, up 2025–2110 MHz: optional 2U | 3U… · datasheet p.3 UHF UHF Amateur 430–440 MHz (1U-3U baseline, 6U-16U optional) and… | VHF VHF Amateur 144–146 MHz: baseline 1U-3U, optional 6U-16U | X X Band optional, 6U-16U
- Subsystems included
- ADCS AOCS baseline for 2U-16U (2U | 3U: 3x RW, 3x MTQ, 6x FSS, mag… · datasheet p.3 battery battery stored energy (baseline) | OBC CDHS: baseline Deep Thought | GNSS receiver GNSS accuracy row: Celeste GNSS (position 2.0 m CEP, velocity… | EPS PSU channels, power interface to payload +2
- Form factor, U (number)
- 12 U CORVUS 12U · datasheet p.2 16 U CORVUS 16U | 1 U CORVUS 1U | 2 U CORVUS 2U | 3 U CORVUS 3U +2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier4 lines, in the manufacturer's own wording
- Configuration options

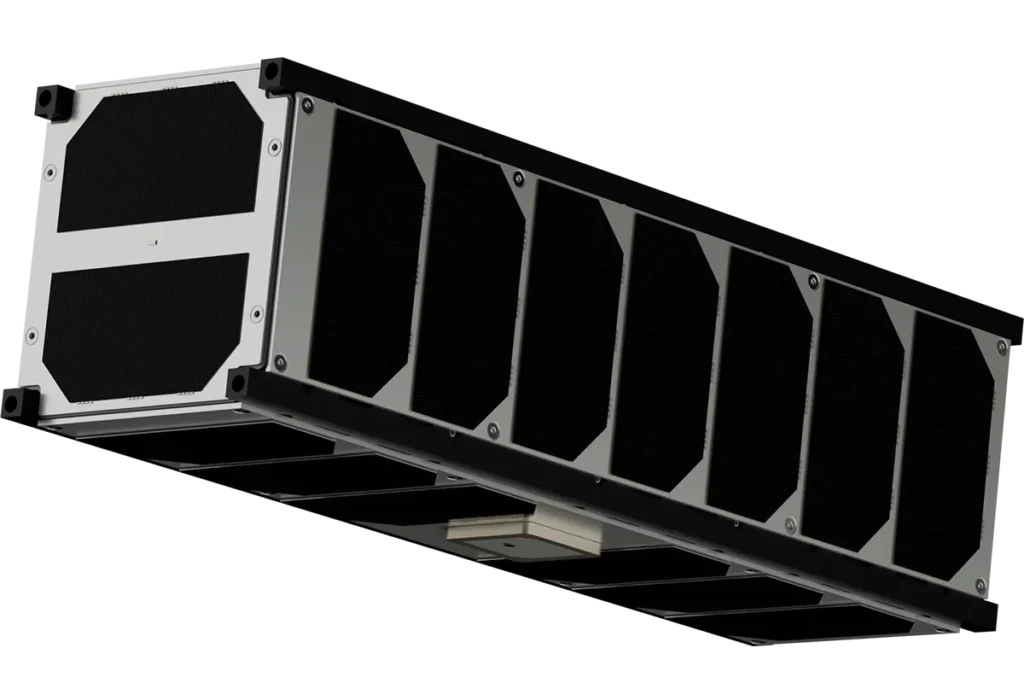

- 1U – 3U
- Configuration options (2)
- 6U – 8U
- Configuration options (3)
- 12U – 16U
- Launch options
- Dedicated or rideshare
About
Spacemanic offers a family of modular CubeSat satellite platforms scaled across three configuration classes: 1U–3U, 6U–8U, and 12U–16U, allowing customers to select a bus size matched to mission payload and objectives. Platforms can be launched either as a dedicated mission or via rideshare, enabling affordable multi-satellite launch campaigns. The platforms are supported by Spacemanic’s full mission services stack, including satellite design tailored to mission objectives using engineering expertise and simulations, research and development to identify optimal mission solutions, and preflight environmental and functional testing including vibration qualification and thermal vacuum (TVAC) qualification. Spacemanic also arranges launch campaigns and provides ground station services with satellite tracking accurate to under 0.1°, telemetry decoding software, and signal reception integration, as well as stratospheric flight services. Flight heritage includes satellites built on Spacemanic platforms and technology such as LASARsat (1U CubeSat testing laser technology for satellite repair and debris mitigation), CroCube (first Croatian satellite, built with Croatian volunteers), and GRBBeta (2U satellite launched on the Ariane 6 maiden flight).
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
