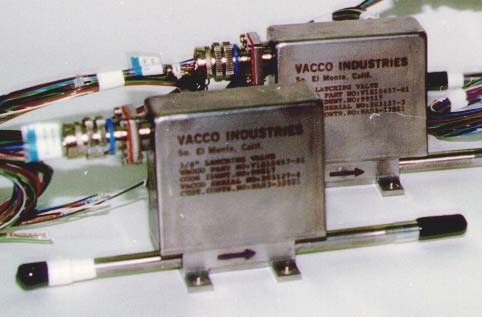

VACCO V1E10362-01 Low Pressure Dual Coil 3/8” Latch Valve
VACCO Industries
A 3/8” low-pressure latch valve with dual coils for redundancy, featuring all-titanium construction, flight qualification, and an integral microswitch.
Typed specifications3 values
Discloses 2 of 8 fields engineers filter by in this category (category median 2).
- Max operating pressure (MEOP)
- 17.93 bar product page 41.37 bar
- Supply voltage
- 21.5–54 V product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Operating pressure range
- 260 psig
- Operating temperature
- 14° to 150° F
- Proof pressure
- 600 psig
- Response time (Opening)
- 50 msec @ 43 VDC
- Burst pressure
- 1600 psig
- Response time (Closing)
- 50 msec @ 21.5 VDC
- Flow
- 0.175 lbm/sec H2O
- Back pressure relief
- 50 to 160 psid
- Pressure drop
- 4 psid
- Inlet filter rating
- 40 microns absolute
- Internal leakage
- <5.0 scch GHe
- Operating voltage
- 21.5 – 54 VDC
- External leakage
- <1 X 10-6 sccs GHe
- Dielectric strength
- 500 VAC RMS @ 60 Hz – 1 min
- Mass
- 1.60 lbm (725 grams)
- Cycle life
- 150,000
About
The VACCO V1E10362-01 is a 3/8” low-pressure latch valve that incorporates VACCO’s proven torque tube technology. Its all-titanium construction contributes to its light weight, and dual coils are provided for redundancy, enhancing reliability. This valve is fully flight-qualified and has extensive heritage. It features an integral microswitch and is designed for a cycle life of 150,000 cycles. The valve is equipped with a 40µ absolute inlet filter and operates within a pressure range of 260 psig.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
