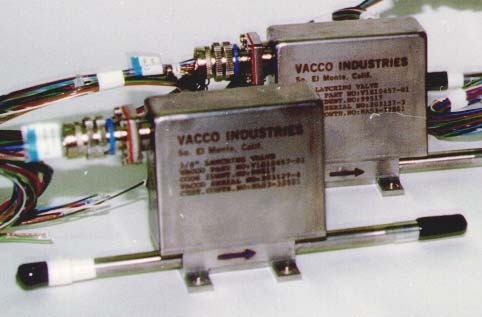

VACCO V1E10362-04 Low Pressure Dual Coil 3/8” Latch Valve
VACCO Industries
A flight-qualified, all-titanium 3/8” latch valve with dual coils for redundancy, designed for high reliability and tight leakage in space applications.
Typed specifications3 values
Discloses 2 of 8 fields engineers filter by in this category (category median 2).
- Max operating pressure (MEOP)
- 17.93 bar product page 41.37 bar
- Supply voltage
- 21.5–54 V product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Operating pressure range
- 260 psig
- Operating temperature
- 14° to 150° F
- Proof pressure
- 600 psig
- Burst pressure
- 1600 psig
- Flow
- 0.175 lbm/sec H2O
- Pressure drop
- 4 psid
- Internal leakage
- <5.0 scch GHe
- Inlet filter rating
- 40 microns absolute
- External leakage
- <1 X 10-6 sccs GHe
- Mass
- 1.60 lbm (725 grams)
- Opening response time
- 50 msec @ 43 VDC
- Closing response time
- 50 msec @ 21.5 VDC
- Back pressure relief
- 50 to 160 psid
- Operating voltage
- 21.5 – 54 VDC
- Dielectric strength
- 500 VAC RMS @ 60 Hz – 1 min
- Cycle life
- 150,000
About
The VACCO V1E10362-04 is a low-pressure dual coil 3/8” latch valve, part of VACCO Industries’ product line of titanium latching valves. It is designed to meet industry demands for high reliability, tight leakage, and quick response capabilities. The valve utilizes VACCO’s proven torque tube technology and features all-titanium construction for light weight. Dual coils are provided for redundancy, and it includes an integral microswitch. This valve is fully flight-qualified and holds extensive heritage, offering a 150,000 cycle life and a 40µ absolute inlet filter. It operates within a pressure range of 260 psig and a temperature range of 14° to 150° F.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
