Antartix – Computadora OBC
VENG S.A.

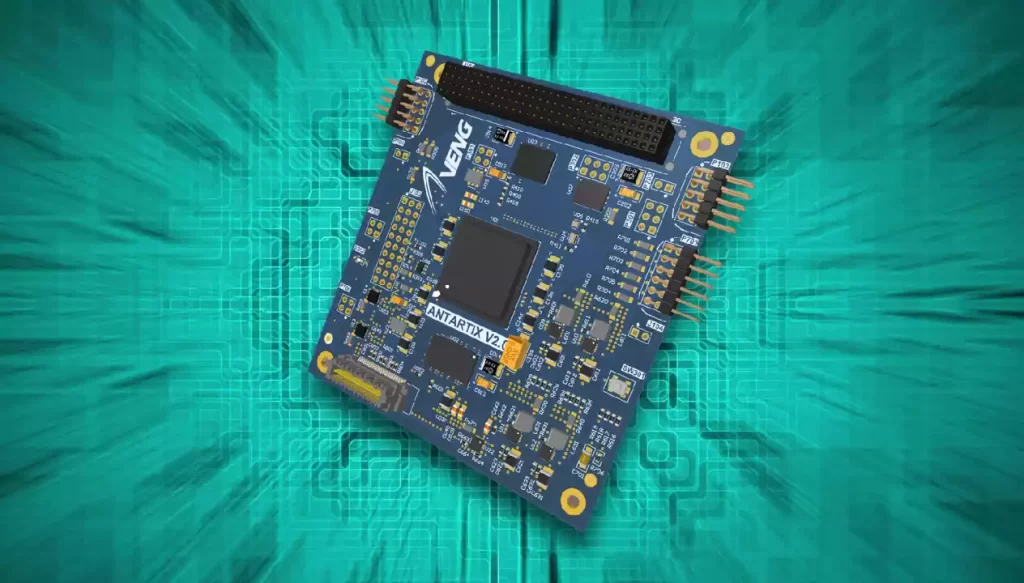

The Antartix v2.0 OBC is a high-performance, easy-to-integrate on-board computer and FPGA development board built on the AMD Xilinx Artix-7 FPGA, optimized for MicroBlaze and PetaLinux.
Typed specifications27 values
Discloses 7 of 13 fields engineers filter by in this category (category median 5).
- Processor
- AMD Xilinx Artix-7 FPGA datasheet p.2
- Envelope (L×W×H)
- 95.89 mm x 90.17 mm x 15.24 mm datasheet p.3 95.89 mm x 90.17 mm x 15.24 mm (stand-off height) 3.775 x 3.550 x 0.600 inches
- RAM
- 4 096 MB datasheet p.3 4 096 MB DDR3L SDRAM 933 MHz, 20 ns, MT41J128M16HA-125:K
- Mass storage
- 0.125 GB datasheet p.3 0.5 GB
- Operating system
- Linux PetaLinux · datasheet p.2
- Supply voltage
- 5 V nom. · datasheet p.3
- Data interface
- other PCI BUS / Local Bus · datasheet p.3 PCIe x1 lane PCIe Gen1.0 (2.5GT/s) | GPIO x11 @ 3.3V, x7 @ 1.8V
- Processor architecture
- soft-core in FPGA MicroBlaze · datasheet p.2
- Board format
- custom datasheet p.2 PC/104 PCI/104-Express fully compatible
- Satellite class
- nanosat 1-10 kg LEO nanosatellites · datasheet p.2 microsat 10-100 kg microsatellites
- FPGA
- AMD Artix-7 XC7A200T-1FBG484I (variant populated with XQ7A200T-1RB484M, defense-grade qualification) datasheet p.3 AMD Xilinx XC7A200T–FBG484I | XQ7A200T-1RB484M
- GPIO lines
- 7 1.8V · datasheet p.3 11 3.3V | 7
- RAM type
- DDR3 DDR3L SDRAM · datasheet p.3
- Program / boot memory
- 512 MB BPI on board NOR memory IC, parallel 133 MHz 96 ns · datasheet p.3 16 MB on board NOR memory IC, SPI Quad I/O 104 MHz
- Data interface speed
- 2.5 Mbps PCIe Gen1.0 x1 lane · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Factor de forma
- PCI/104-Express totalmente compatible
- FPGA
- AMD Artix-7 XC7A200T-1FBG484IHz
- Memoria
- DDR3L SDRAM 4Gb 933 MHz20 ns MT41J128M16HA-125:K
- Memoria flash
- A bordo – NOR Memory IC 128 Mbit SPI – Quad I/O 104 MHz
- Memoria adicional
- BPI a bordo – NOR Memory IC 512 Mbit Paralela 133 MHz – 96 ns
- Interfaz pcie
- x1 lane PCIe Gen1.0(2.5GT/s)
- Pci bus
- Local Bus
- Entradas/salidas de propósito general (GPIO)
- x11 @ 3.3 V, x7 @ 1.8 V
- Consumo de energía
- 5 VDC, X.X A
- Dimensiones
- Largo: 3.775 pulgadas (95.89 mm) Ancho: 3.550 pulgadas (90.17 mm) Altura separador: 0.600 pulgadas
About
The Antartix v2.0 OBC is a high-performance and easy-to-integrate on-board computer, which also functions as an FPGA development board. It is built upon the AMD Xilinx Artix-7 FPGA and optimized to run MicroBlaze and PetaLinux, offering exceptional processing capabilities ideal for a wide range of space applications. It is fully compatible with the PCI/104-Express format, ensuring seamless integration into LEO nanosatellites, microsatellites, and launch vehicles. Its comprehensive set of interfaces allows for reliable connectivity for subsystems and payloads, making it a versatile and adaptable solution for any mission’s demands. Designed for versatility and reliability, the Antartix v2.0 OBC is constructed entirely with extended temperature range components, guaranteeing robust performance in harsh environments. It is equipped with the AMD Xilinx XC7A200T–FBG484I FPGA, and is also available in a variant with the XQ7A200T-1RB484M, offering defense-grade qualification for critical mission applications.
