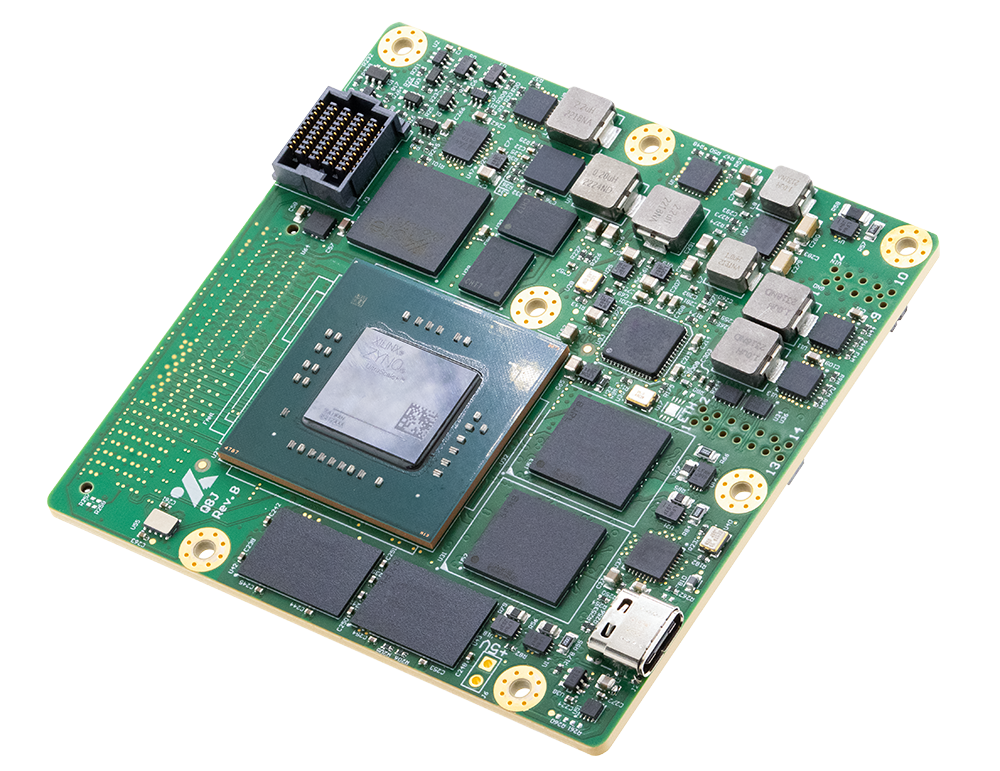

Q8J Low SWaP with GTH Computer-on-Module
Xiphos Technologies
The Q8J is a low SWaP processor board designed for space applications, featuring a Xilinx Zynq UltraScale+ MPSoC and multi-Gigabit transceivers for high-speed interfaces.
Typed specifications105 values
Discloses 10 of 13 fields engineers filter by in this category (category median 5).
- Processor
- quad core ARM Cortex A53 Application Processing Unit; dual core ARM Cortex R5 Real Time Processing Unit; ARM Mali 400 GPU datasheet p.1
- Mass
- 56 g without connectors · datasheet p.2
- CPU clock
- 1 200 MHz max · ARM Cortex A53 · datasheet p.2 1 200 MHz max · ARM Cortex A53 APU, up to | 500 MHz max · ARM Cortex R5 | 500 MHz max · ARM Cortex R5 RPU, up to | 600 MHz max · ARM Mali-400 GPU +1
- Envelope (L×W×H)
- 80 mm x 80 mm x 11.2 mm datasheet p.1 80 mm x 80 mm x 11.2 mm without connectors
- RAM
- 4 096 MB datasheet p.2 4 096 MB LPDDR4 DRAM
- Mass storage
- 128 GB 2x eMMC, 128 GB each, on independent buses / power control · datasheet p.2 128 GB eMMC | 0.25 GB QSPI Flash
- Operating system
- Yocto Linux BSP (LTS distribution) datasheet p.2 Linux Yocto Linux BSP (LTS distribution)
- Supply voltage
- 9 V nom. · datasheet p.2 9 V
- Power consumption
- 5 W typical · datasheet p.2 5 W as little as | 5 W typ. | 5 W nom. · typical
- Data interface
- Ethernet datasheet p.1 SATA 1 PS GTR transceiver (up to 6 Gbps, for SATA, PCIe) | other 1-Wire | other 1-Wire, on Product Integration Module (PIM) | USB 1x USB Type-C Host port (USB 2.0 & USB 3.1 Gen 1) +34
- Operating temperature
- -40–60 °C derated · datasheet p.2
- Processor architecture
- GPU / NPU ARM Mali-400 GPU · datasheet p.2 ARM Cortex-R dual core ARM Cortex R5 Real Time Processing Unit | ARM Cortex-A quad-core ARM Cortex A53 Application Processing Unit
- Board format
- custom datasheet p.1
- Radiation and fault mitigation
- EDAC / ECC on RAM EDAC-protected RAM (Q8JS flight model) · datasheet p.2 FPGA bitstream scrubbing FPGA bit stream scrubbing | latch-up protection (current limiting) over-current protection (multiple); overcurrent detection & p… | software watchdog software robustness / watchdog | TMR in FPGA triple mode redundancy in Control FPGA (Q8JS flight model) +6
- Connector
- RJ45 datasheet p.1 mezzanine connector | RJ45 | USB Type-C Host port | Mezzanine connector
- Flight heritage
- The Q8JS, the Flight Model (FM) version of the Q8J, has been flying since September 2023 datasheet p.1
- Cores
- 4 ARM Cortex A53 Application Processing Unit · datasheet p.2 2 ARM Cortex R5 Real Time Processing Unit
- FPGA
- Xilinx Zynq UltraScale+ XCZU7EG: 504,000 system logic cells, 461,000 flip-flops (FF), 274,000 lookup tables (LUT), 1,728 DSP slices; Control FPGA Microchip ProASIC3 datasheet p.2 Microchip ProASIC3
- GPIO lines
- 76 datasheet p.1 13 Product Integration Module (PIM) | 51 single-ended GPIO 1.8 V | 25 up to, single-ended GPIO 3.3 V | 12 +5
- RAM type
- LPDDR4 datasheet p.2 DDR3 external PL-accessible DDR3 DRAM | DDR4 external PL-accessible DDR4 DRAM
- Program / boot memory
- 256 MB 2x 256 MB QSPI Flash (NOR) · datasheet p.2
- Data interface speed
- 6 000 Mbps max · 1 PS GTR transceiver, SATA / PCIe · datasheet p.2 12 500 Mbps max · 16 PL GTH transceivers, JESD204B / PCIe
- Analog inputs
- 8 Product Integration Module (PIM), plus 4 analog outputs · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Processor
- Xilinx Zynq UltraScale+ Multi-Processor System-on-Chip (MPSoC) Processing FPGA
- Application processing unit
- quad-core ARM Cortex-A53
- Real-time processing unit
- dual-core ARM Cortex-R5
- Gpu
- ARM Mali-400
- Ram
- 4 GB LPDDR4 (with ECC)
- Qspi flash (NOR)
- 2 x 256 MB
- Emmc
- 2 x 128 GB
- External memory support
- PL-accessible DDR3 or DDR4 via mezzanine connector
- Typical power
- 6 W @ 5 V to 9 V
- Interfaces
- Gigabit Ethernet, USB 2.0 & 3.1, serial, multiple high-speed I/O via mezzanine connector (GPIO, LVDS, GTH and GTR multi-Gbps transceivers for SATA, PCIe, JESD204B)
- Sdk
- Linux SDK
- Radiation effects mitigation
- Yes
- TID lifetime
- 30krad
- Flight heritage
- Numerous LEO applications, launchers, and on the moon
About
The Xiphos Q8J is a processor board specifically engineered for space applications, building upon the capabilities of the Q8 processor. It incorporates a Xilinx Zynq UltraScale+ Multi-Processor System-on-Chip (MPSoC) Processing FPGA, which includes a quad-core ARM Cortex-A53 Application Processing Unit, a dual-core ARM Cortex-R5 Real-Time Processing Unit, and an ARM Mali-400 GPU, all supported by extensive programmable logic resources. A key enhancement in the Q8J is the addition of multi-Gigabit per second transceivers for JESD204B and PCIe interfaces, enabling access to external DDR3 or DDR4 memory and supporting the next generation of Software Defined Radio (SDR).
Memory features include 4 GB of LPDDR4 RAM with ECC, 2 x 256 MB QSPI Flash (NOR), and 2 x 128 GB eMMC. It also supports external PL-accessible DDR3 or DDR4 memory via its mezzanine connector. The board operates with a typical power consumption of 6W at 5V to 9V. Interfaces provided are Gigabit Ethernet, USB 2.0 & 3.1, serial, and multiple high-speed I/O via a mezzanine connector, including GPIO, LVDS, GTH and GTR multi-Gbps transceivers for SATA, PCIe, and JESD204B. A Linux SDK is provided for development. The Q8J is designed with radiation effects mitigation and boasts a 30krad TID lifetime. Xiphos offers application-specific development and customization for integrating their Q-Card processors with specific interfacing options and electronics. The product has flight heritage in numerous LEO applications, launchers, and lunar missions.
