PEB1 VA416X0 Radiation-Hardened MCU Development Kit
VORAGO Technologies

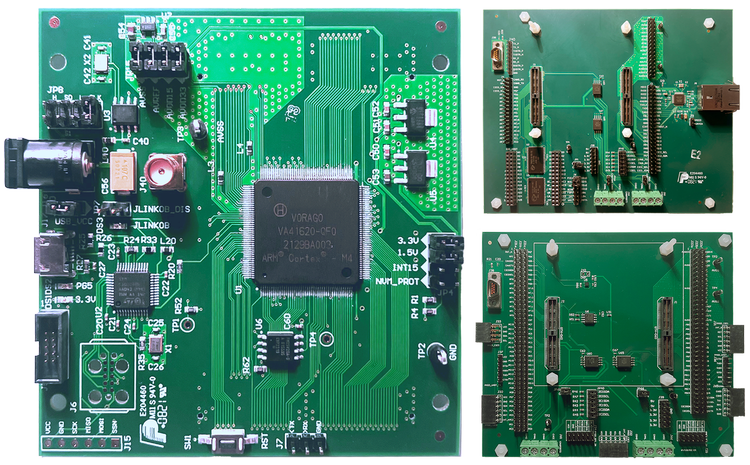

The VORAGO PEB1 is the primary development and evaluation platform for the VA416X0 family of radiation-hardened ARM Cortex-M4 microcontrollers (VA41620 and VA41630). The kit comprises three boards: a central single board computer (SBC) hosting the target MCU, plus two interchangeable daughter cards providing comprehensive interface coverage for system integration validation. The SBC hosts the VA41620 […]
Technical specifications
- Target MCU Options
- VA41620 or VA41630 (ARM Cortex-M4, HARDSIL)
- SBC Dimensions
- 3.15 x 3.3 inches
- Boot NVM (SBC)
- 256 KB SPI FRAM
- Clock Generation
- 20 MHz - 80 MHz programmable
- Crystal Oscillator
- 10 MHz
- Power Supply
- USB-powered; 3.3 V and 1.5 V on-board regulators
- Debugger
- Segger J-Link OB (integrated)
- Daughter Card A Dimensions
- 5.55 x 4.95 inches
- Daughter Card A Interfaces
- I2C accelerometer, dual CAN, PMOD (I2C/UART/SPI), SpaceWire (micro DB9)
- Daughter Card B Dimensions
- 6.95 x 5.6 inches
- Daughter Card B Memory
- 512 KB EBI FRAM + 512 KB EBI SRAM
- Daughter Card B Interfaces
- Dual CAN, Ethernet RJ45, SpaceWire (micro DB9)
- Ordering Options
- PEB1-VA41620, PEB1-VA41630
About
The VORAGO PEB1 is the primary development and evaluation platform for the VA416X0 family of radiation-hardened ARM Cortex-M4 microcontrollers (VA41620 and VA41630). The kit comprises three boards: a central single board computer (SBC) hosting the target MCU, plus two interchangeable daughter cards providing comprehensive interface coverage for system integration validation.
The SBC hosts the VA41620 or VA41630 MCU with a 256 KB boot SPI FRAM, 3.3 V and 1.5 V voltage regulators, 20-80 MHz clock generation, and an integrated Segger J-Link OB debugger for immediate out-of-box programming. Daughter Card A provides peripheral access: 256 KB SPI FRAM, I2C accelerometer, dual CAN transceivers, PMOD-compatible connectors, and a SpaceWire micro-DB9 connector. Daughter Card B enables bus-expansion testing: 512 KB EBI FRAM + 512 KB EBI SRAM, dual CAN transceivers, Ethernet RJ45, and a second SpaceWire micro-DB9.
Ordering options include PEB1-VA41620 (populated with VA41620) and PEB1-VA41630 (populated with the FRAM-integrated VA41630). A software kit, Board Support Package, and Programmer’s Guide are available on request.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
