VA41630 Radiation-Hardened ARM Cortex-M4 Microcontroller
VORAGO Technologies
The VORAGO VA41630 is the company’s flagship radiation-hardened microcontroller and the first product from a small private semiconductor designer to earn QML-Q+ qualification from the U.S. Defense Logistics Agency (DLA) under MIL-PRF-38534 Class K. Built on an ARM Cortex-M4 core with FPU at up to 100 MHz and manufactured with VORAGO’s patented HARDSIL technology, it […]
Technical specifications
- Cpu core
- ARM Cortex-M4 with single-precision FPU
- Clock frequency
- Up to 100 MHz
- Core voltage
- 1.5 V +/- 10%
- I/o voltage
- 3.3 V +/- 10%
- Data sram
- 64 KB (on-chip, with EDAC)
- Program sram
- 256 KB (on-chip, with EDAC & Scrub)
- Integrated nvm
- 256 KB FRAM (on-chip)
- Gpio
- 104 configurable pins
- UART interfaces
- 3x
- I2C interfaces
- 3x
- SPI interfaces
- 3x
- CAN interfaces
- 2x CAN 2.0B
- Ethernet
- 10/100 MAC
- Spacewire
- 1x full-duplex
- Dma controller
- 4-channel
- ADC
- 8-channel, 12-bit, 600 ksps
- DAC
- 2-channel, 12-bit
- Timers
- 24x configurable 32-bit (PWM, input capture, watchdog)
- Operating temperature
- -55 to +125 deg C
- TID (Total Ionizing Dose)
- >200 krad(Si)
- SEL immunity
- >110 MeV·cm2/mg @ 125 deg C
- Ser (with EDAC & Scrub)
- <1e-15 errors/bit-day
- Radiation technology
- HARDSIL
- Space qualification
- QML Q+ / MIL-PRF-38534 Class K (DLA)
- Package options
- 176 CQFP, 176 PQFP, 196 BGA
About
The VORAGO VA41630 is the company’s flagship radiation-hardened microcontroller and the first product from a small private semiconductor designer to earn QML-Q+ qualification from the U.S. Defense Logistics Agency (DLA) under MIL-PRF-38534 Class K. Built on an ARM Cortex-M4 core with FPU at up to 100 MHz and manufactured with VORAGO’s patented HARDSIL technology, it is deployed by both commercial and government space agencies in the most demanding mission-critical systems.
The VA41630 distinguishes itself from the VA41620 by incorporating 256 KB of integrated non-volatile memory (NVM) on-chip, eliminating the need for external boot memory and reducing system complexity. All on-chip memories are protected by EDAC and memory scrub engines, delivering a soft error rate below 1e-15 errors/bit-day. TID performance exceeds 200 krad(Si) and SEL immunity exceeds 110 MeV·cm²/mg at 125 deg C.
The peripheral set mirrors the VA41620: three each of UART, I2C, and SPI, two CAN 2.0B interfaces, a 10/100 Ethernet MAC, a full-duplex SpaceWire interface, 104 configurable GPIO, an 8-channel 12-bit ADC, a 2-channel 12-bit DAC, a 4-channel DMA controller, and 24 configurable 32-bit timers.

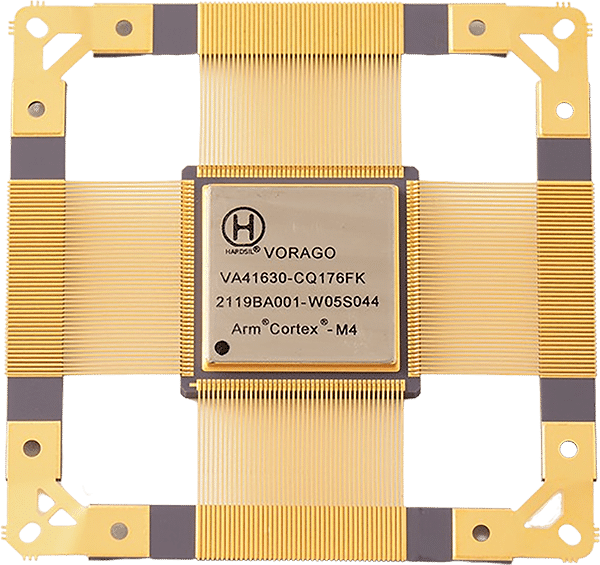

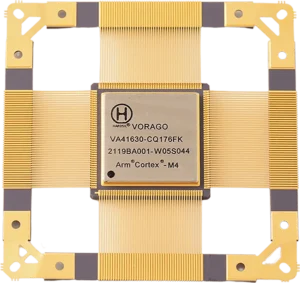

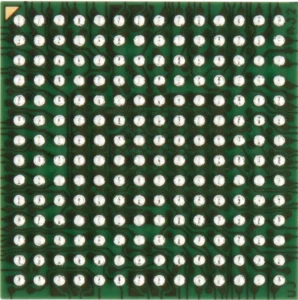

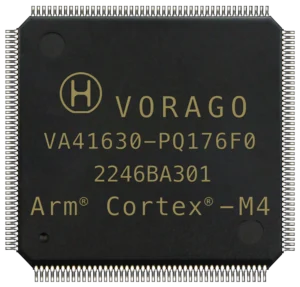

Available in 176-pin CQFP, 176-pin PQFP, and 196-pin BGA packages.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
