VA41620 Radiation-Hardened ARM Cortex-M4 Microcontroller
VORAGO Technologies
The VORAGO VA41620 is a radiation-hardened, high-performance 32-bit microcontroller built on an ARM Cortex-M4 core with single-precision Floating Point Unit (FPU), manufactured using VORAGO’s patented HARDSIL technology. Designed for mission-critical spaceborne systems, the VA41620 delivers best-in-class radiation immunity — exceeding 300 krad(Si) Total Ionizing Dose and latch-up immunity above 110 MeV·cm²/mg — making it suitable […]
Technical specifications
- Cpu core
- ARM Cortex-M4 with single-precision FPU
- Clock frequency
- Up to 100 MHz
- Core voltage
- 1.5 V +/- 10%
- I/o voltage
- 3.3 V +/- 10%
- Data sram
- 64 KB (on-chip, with EDAC)
- Program sram
- 256 KB (on-chip, with EDAC & Scrub)
- Non-volatile memory
- External SPI NVM
- Gpio
- 104 configurable pins
- UART interfaces
- 3x
- I2C interfaces
- 3x
- SPI interfaces
- 3x
- CAN interfaces
- 2x CAN 2.0B
- Ethernet
- 10/100 MAC
- Spacewire
- 1x full-duplex
- Dma controller
- 4-channel
- ADC
- 8-channel, 12-bit, 600 ksps
- DAC
- 2-channel, 12-bit
- Timers
- 24x configurable 32-bit (PWM, input capture, watchdog)
- Operating temperature
- -55 to +125 deg C
- TID (Total Ionizing Dose)
- >300 krad(Si)
- SEL immunity
- >110 MeV·cm2/mg @ 125 deg C
- Ser (with EDAC & Scrub)
- <1e-15 errors/bit-day
- Radiation technology
- HARDSIL
- Package options
- 176 CQFP, 176 PQFP, 196 BGA
About
The VORAGO VA41620 is a radiation-hardened, high-performance 32-bit microcontroller built on an ARM Cortex-M4 core with single-precision Floating Point Unit (FPU), manufactured using VORAGO’s patented HARDSIL technology. Designed for mission-critical spaceborne systems, the VA41620 delivers best-in-class radiation immunity — exceeding 300 krad(Si) Total Ionizing Dose and latch-up immunity above 110 MeV·cm²/mg — making it suitable for GEO, MEO, and deep-space missions with long operational lifetimes.
The device integrates 64 KB of on-chip data SRAM and 256 KB of program SRAM, both protected by EDAC and a memory scrub engine to suppress soft errors. Unlike the VA41630, the VA41620 relies on external SPI NVM for non-volatile storage, providing design flexibility for applications requiring large external flash memories or custom boot configurations.
Connectivity options are extensive and tailored for space applications: three each of UART, I2C, and SPI interfaces, two CAN 2.0B buses, a 10/100 Ethernet MAC, a full-duplex SpaceWire interface, and 104 configurable GPIO pins. An 8-channel 12-bit ADC (600 ksps) and 2-channel 12-bit DAC support analog signal processing.

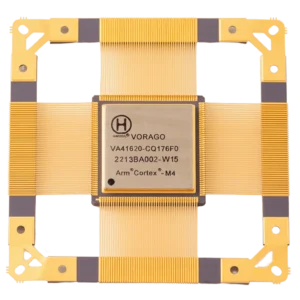

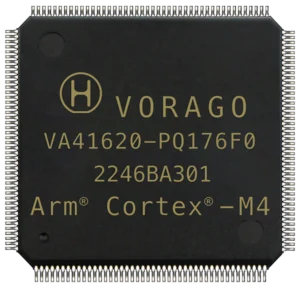

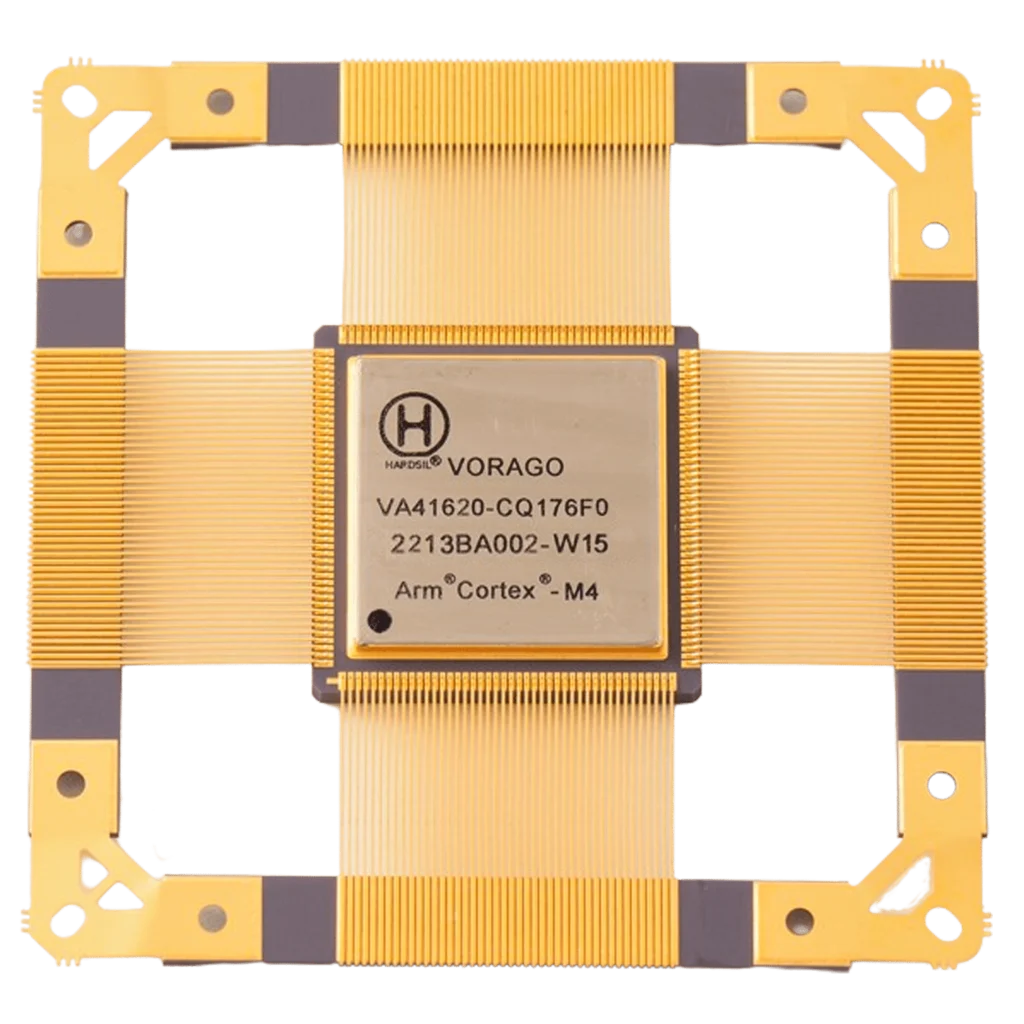

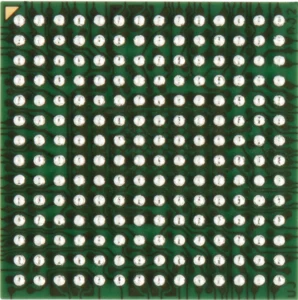

The VA41620 is fully spaceflight-qualified and available in 176-pin Ceramic QFP (CQFP), 176-pin Plastic QFP (PQFP), and 196-pin BGA packages.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
