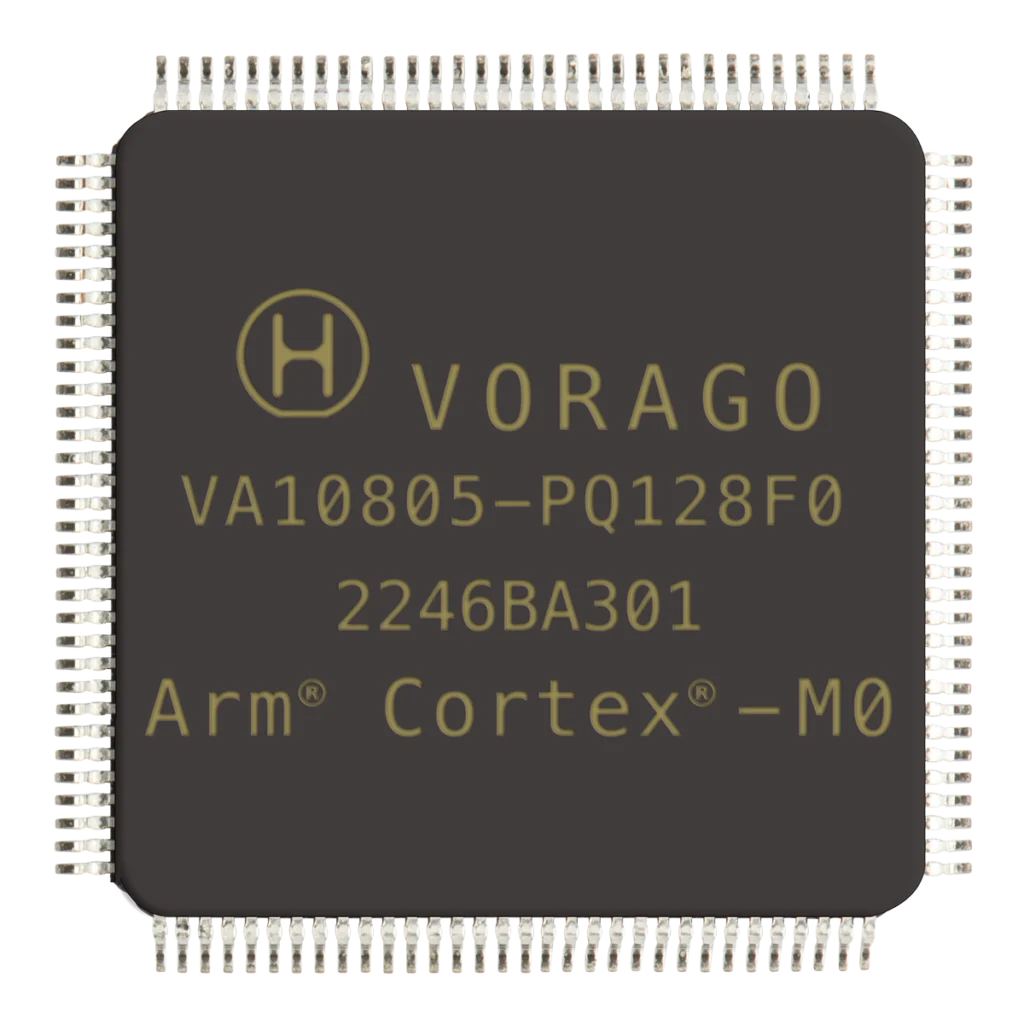

VA10805 Radiation-Hardened ARM Cortex-M0 Microcontroller
VORAGO Technologies
HARDSIL 50 MHz ARM Cortex-M0 MCU with >300 krad(Si) TID for CubeSats, power sequencing, and relay control in LEO missions.
Technical specifications
- Cpu core
- ARM Cortex-M0
- Clock frequency
- Up to 50 MHz
- Core voltage
- 1.5 V +/- 10%
- I/o voltage
- 3.3 V +/- 10%
- Program sram
- 256 KB (on-chip)
- Data sram
- 32 KB (on-chip)
- Otp memory
- 1 Kb (user-programmable)
- Gpio
- 56 configurable pins
- UART interfaces
- 2x
- I2C interfaces
- 2x
- SPI interfaces
- 3x
- Timers
- 24x configurable 32-bit (PWM, input capture, watchdog)
- Operating temperature
- -55 to +125 deg C
- TID (Total Ionizing Dose)
- >300 krad(Si)
- SEL immunity
- >110 MeV·cm2/mg
- Radiation technology
- HARDSIL
- Package
- 128 PQFP (Plastic)
About
The VORAGO VA10805 is the current-generation, actively sold ARM Cortex-M0 radiation-hardened microcontroller in VORAGO’s M0 family. Built with HARDSIL technology, the VA10805 delivers >300 krad(Si) Total Ionizing Dose immunity and >110 MeV·cm²/mg SEL immunity, making it highly resilient to the radiation environments encountered by LEO CubeSats, SmallSat constellations, and rideshare payloads.
Operating at up to 50 MHz, the VA10805 is purpose-designed for simpler and lower-power tasks: power sequencing, relay control, valve actuation, and data logging functions where a full M4 would be over-specified. It includes 256 KB of program SRAM and 32 KB of data SRAM, along with 1 Kb of user-programmable OTP memory, providing flexible configuration storage without an external non-volatile device.
Peripheral integration includes 56 configurable GPIO pins, two UART and two I2C interfaces, three SPI interfaces, and 24 configurable 32-bit timers with full timer function support. The VA10805 ships in a plastic 128-pin PQFP package and supersedes the legacy VA10820 (support-only) and VA10800 (discontinued).
