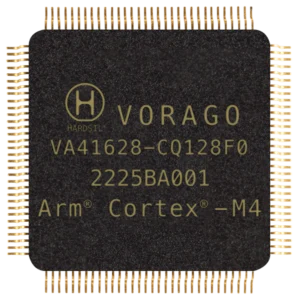

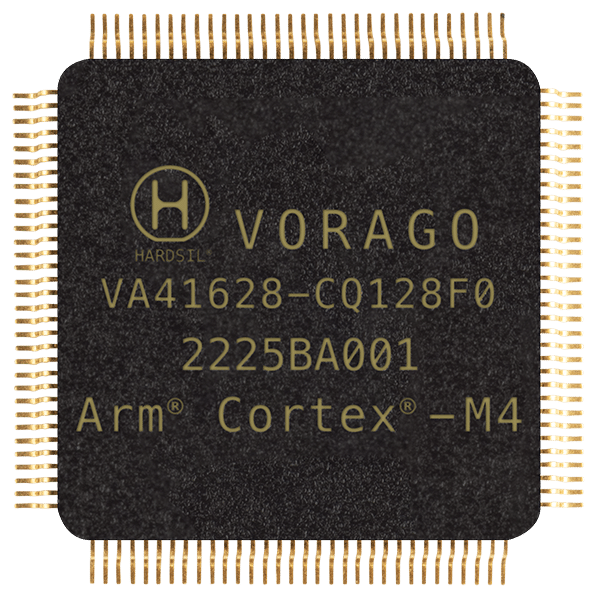

VA41628 Radiation-Hardened ARM Cortex-M4 Microcontroller (128-pin)
VORAGO Technologies
Cost-effective 50 MHz HARDSIL ARM Cortex-M4 MCU in 128-pin ceramic package with >300 krad(Si) TID for digital-centric space designs.
Technical specifications
- Cpu core
- ARM Cortex-M4 with FPU
- Clock frequency
- Up to 50 MHz
- Core voltage
- 1.5 V +/- 10%
- I/o voltage
- 3.3 V +/- 10%
- Data sram
- 64 KB (on-chip, with EDAC)
- Program sram
- 256 KB (on-chip, with EDAC & Scrub)
- Gpio
- 75 configurable pins
- UART interfaces
- 3x
- I2C interfaces
- 3x
- SPI interfaces
- 3x
- Dma controller
- 4-channel
- Timers
- 24x configurable 32-bit (PWM, input capture, watchdog)
- Operating temperature
- -55 to +125 deg C
- TID (Total Ionizing Dose)
- >300 krad(Si)
- SEL immunity
- >110 MeV·cm2/mg @ 125 deg C
- Radiation technology
- HARDSIL
- Package options
- 128 CQFP, 196 BGA
About
The VORAGO VA41628 is a high-reliability, radiation-hardened ARM Cortex-M4 microcontroller optimized for digital-centric space applications that do not require Ethernet, SpaceWire, CAN, or analog I/O. Manufactured with VORAGO’s HARDSIL technology, the VA41628 delivers the same radiation performance as the VA41620 — exceeding 300 krad(Si) TID and 110 MeV·cm²/mg SEL immunity — in a compact 128-pin ceramic flatpack.
Clocked at up to 50 MHz (half the rate of the VA41620/VA41630), the VA41628 is targeted at power-sensitive subsystems and simpler control tasks within spacecraft, where high-speed processing is not required. It includes 64 KB of data SRAM and 256 KB of program SRAM with EDAC and memory scrubbing, along with 75 configurable GPIO pins and three each of UART, I2C, and SPI interfaces.
With 24 configurable 32-bit timers and a 4-channel DMA controller, the VA41628 is suited for power management, attitude control subsystems, and payload control functions. It is designated as the recommended replacement for the legacy VA10820 Cortex-M0 at equivalent cost, providing a significant capability upgrade.
Available in 128-pin CQFP and 196-pin BGA packages.
