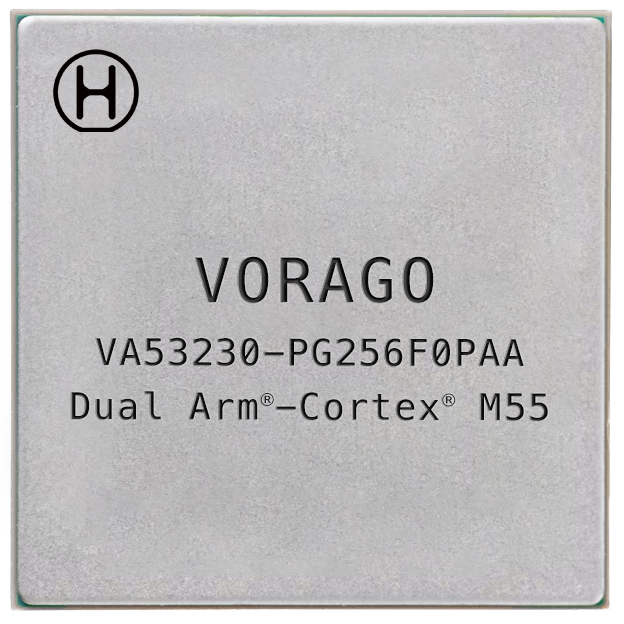

VA53230 Dual-Core Radiation-Hardened ARM Cortex-M55 Microcontroller
VORAGO Technologies
The VORAGO VA53230 is the lead product of the VA5 family — VORAGO’s first generation of dual-core microcontrollers — and represents a major leap in on-board processing capability for space and defense applications. Each of the two ARM Cortex-M55 cores incorporates a Floating Point Unit and Helium SIMD extensions for digital signal processing and machine […]
Technical specifications
- Cpu cores
- 2x ARM Cortex-M55 with FPU and Helium SIMD
- Clock frequency
- Up to 200 MHz
- Nvm (On-chip)
- 256 KB
- Sram (Double Word)
- 512 KB
- Sram (Byte)
- 128 KB
- ADC
- 2x 12-bit (dual)
- DAC
- 4x outputs
- Analog comparators
- 8x
- Motor controllers
- 4x
- CAN fd interfaces
- 4x
- UART interfaces
- 4x
- SPI interfaces
- 4x
- I2C interfaces
- 4x
- Spacewire interfaces
- 2x
- Ethernet
- MAC with QoS
- Operating temperature
- -55 to +125 deg C
- TID (Rad-Hard variant)
- >200 krad(Si)
- SEL immunity (Rad-Hard)
- >110 MeV·cm2/mg
- TID (Rad-Tolerant variant)
- >50 krad(Si)
- SEL immunity (Rad-Tolerant)
- >60 MeV·cm2/mg
- Package options
- 256-pin BGA (Plastic), 216-pin QFP (Ceramic)
- Availability (Engineering Samples)
- Q3 2026
About
The VORAGO VA53230 is the lead product of the VA5 family — VORAGO’s first generation of dual-core microcontrollers — and represents a major leap in on-board processing capability for space and defense applications. Each of the two ARM Cortex-M55 cores incorporates a Floating Point Unit and Helium SIMD extensions for digital signal processing and machine learning inference, running at up to 200 MHz.
The VA5 family is offered in both radiation-hardened (RH, >200 krad(Si) TID) and radiation-tolerant (RT, >50 krad(Si) TID) variants. The VA53230 offers substantially more memory than the VA4 family: 512 KB of double-word SRAM, 128 KB of byte-addressable SRAM, and 256 KB of on-chip non-volatile memory accessible to both cores.
Connectivity is greatly expanded: 4x CAN FD, 4x UART, 4x SPI, 4x I2C, 2x SpaceWire, Ethernet MAC with QoS support, dual 12-bit ADCs, 4x DAC outputs, 8 analog comparators, and 4 motor controllers. Engineering samples are targeted for Q3 2026.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
