WiRan X-Band Antenna
WiRan

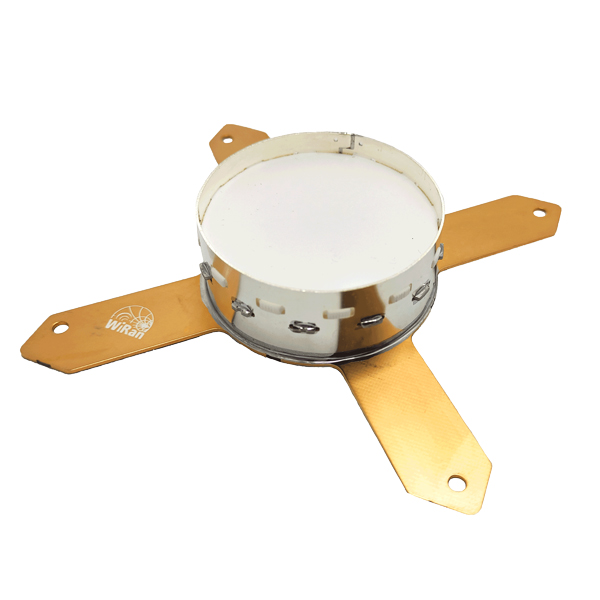

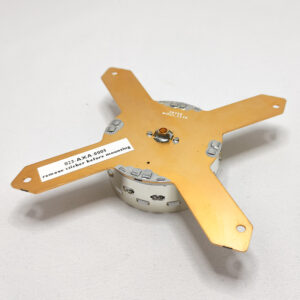

The WiRan X-Band Antenna is a compact, full-duplex antenna designed for data transmission and swarm radiocommunication in the X-band, compatible with CubeSat nanosatellites.
Typed specifications13 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- X datasheet p.1
- Peak gain
- 9.5 dBi datasheet p.2
- Mass
- 39 g datasheet p.2
- Frequency range
- 7 145–7 235 MHz datasheet p.2 8 000–8 500 MHz
- Beamwidth (-3 dB)
- 45 ° datasheet p.2
- Envelope (L×W×H)
- 95 (X or Y) datasheet p.2 24.5 (Z) | 21.5 (height without connector)
- Polarization
- RHCP datasheet p.1
- Power consumption
- 15 W datasheet p.2
- Operating temperature
- -75–90 °C datasheet p.2
- Connector
- SMP male connector datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Operating bands
- 7145-7235 & 8000-8500 MHz
- Compatibility

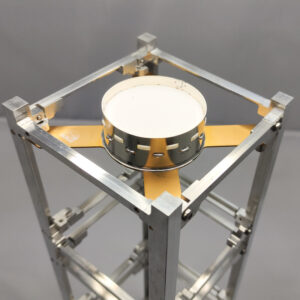

- CubeSat nanosatellite standard
- Polarization
- RHCP by default
- Availability
- First Engineering Models expected in 2021/22
- Frequency
- 7145-7235; 8000-8500 MHz
- Return Loss
- >15 dB
- HPBW
- 45 ±5 °
- Gain
- 9.5 ±0.5 dBi
- AR (RHCP) @ 0°
- <3 dB
- AR (RHCP) @ ±20°
- <5 dB
- AR (RHCP) max @ ±40°
- <12 dB
- Power
- 15 W
- Operating temperature
- -75 / +90 °C
- Mass
- 39 ±1 g
- Maximum linear dimension (X or Y)
- 95 ±0.5 mm
- Maximum height (Z)
- 24.5 ±0.5 mm
- Height without connector (Z)
- 21.5 ±0.5 mm
- RF interface
- SMP male connector
About
The WiRan X-Band Antenna is a component currently under development, intended for full-duplex communication, specifically for data transmission and swarm-dedicated radiocommunication within the X-band. It is engineered to operate across two distinct frequency bands: 7145-7235 MHz and 8000-8500 MHz. A key feature of this antenna is its full compatibility and easy integration with the WiRan X-Band Diplexer. The antenna is designed to be compliant with the CubeSat nanosatellite standard, making it suitable for small satellite applications. It supports full duplex operation and is configured for Right-Hand Circular Polarization (RHCP) by default. Its design emphasizes a light and compact form factor, which is crucial for space-constrained applications like CubeSats. First Engineering Models were expected to be available in 2021/22.
