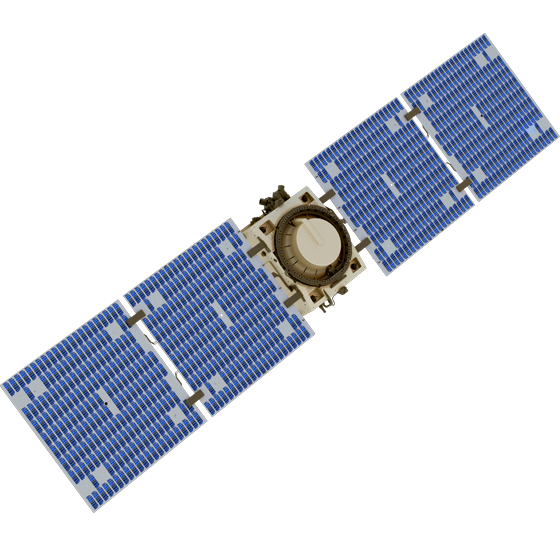

METEORITE Satellite Bus
Description
METEORITE is Moog's purpose-built small satellite bus targeting ESPA rideshare and dedicated launches into LEO, MEO, and GEO orbits. The platform carries up to 220 kg payload with 150 W average and 2 kW peak power, supplied from body-mounted and deployable solar panels feeding an unregulated 28 VDC bus. Attitude control achieves better than 60 arcsec (1σ) pointing accuracy with less than 10 arcsec stability and jitter, with a maximum slew rate of 2.5 deg/sec. The baseline propulsion uses Moog's ASCENT green monopropellant system delivering more than 175 m/s delta-V at 200 kg dry mass. Avionics are built around Moog's BRE440 radiation-hardened CPU. Total bus dry mass is 120 kg within a 22 × 28 × 23.65 inch envelope. Position knowledge is better than 4 m. The METEORITE bus supports 2–5 year mission life in the 500–1200 km altitude range with 25.5 kRad total dose tolerance at 0.200 inch aluminum shielding.
Specifications
| Orbital range | 500–1200 km LEO, MEO, GEO (ESPA class) |
|---|---|
| Mission life | 2–5 years |
| Bus dry mass | 120 kg |
| Payload mass capacity | 220 kg |
| Dimensions | 22 × 28 × 23.65 inches |
| Delta-v | >175 m/s at 200 kg dry |
| Payload power (average) | ~150 W |
| Payload power (peak) | 2 kW |
| Supply voltage | 28 VDC unregulated (25–33 V range) |
| Pointing accuracy | <60 arcsec (1σ) |
| Jitter / stability | <10 arcsec |
| Max slew rate | 2.5 deg/sec |
| Radiation tolerance | 25.5 kRad TID at 0.200 in Al shielding |
| Position knowledge | <4 m |

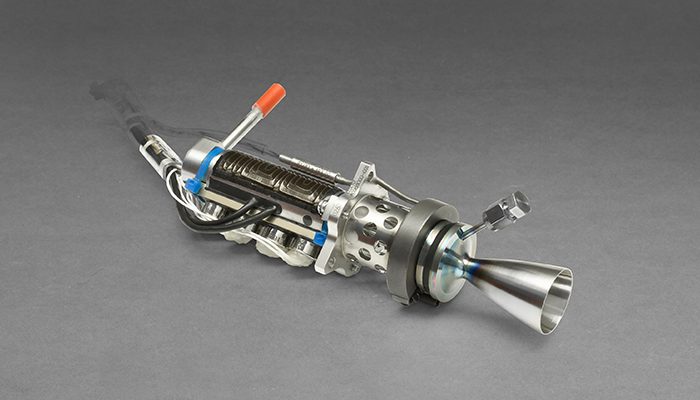

| Propulsion | Moog ASCENT green monopropellant (AF-M315E) |
| Cpu | Moog BRE440 radiation-hardened processor |
