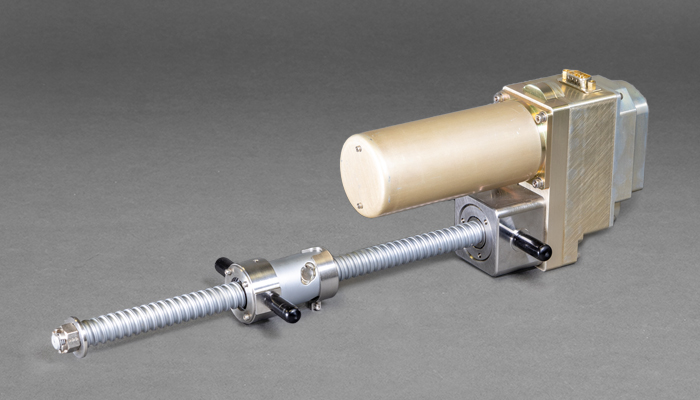

Model 290 Linear Servo Actuator
Moog Space Defense Group
The Model 290 is one of the highest performance linear servo actuators available on the market, offering 1,500 lbf at 0.26 inches/second for up to 7.75 inch strokes.
Typed specifications23 values
Discloses 5 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 2.72 kg nom. · nominal · datasheet p.3
- Envelope (L×W×H)
- 3.88 x 4.75 x 14.75 inches long product page
- Supply voltage
- 18 V min · Operating Voltage · datasheet p.3 32 V max · Operating Voltage | 18–32 V operating voltage
- Data interface
- RS-485 digital communications protocol · datasheet p.2 RS-485 Electrical Command Interface | RS-485 isolated half duplex RS-485
- Operating temperature
- -40–71 °C operating · datasheet p.2
- Export status
- ITAR falls under the jurisdiction of the ITAR · datasheet p.5
- Mechanism type
- linear actuator datasheet p.1
- Propulsion family
- 7.75 product page
- Motor type
- brushed DC 24 VDC permanent magnet brush-type motor · datasheet p.3
- Transmission
- lead screw or ball screw precision ball screw and nut assembly, 0.2 inches / turn · datasheet p.2
- Stroke
- 196.85 mm electrical stroke · datasheet p.3 203.2 mm mechanical stroke
- Output force
- 6 670 N rated, 1,500 lbf @ 0.26 inches/sec, 10% duty cycle · datasheet p.3 11 120 N max · maximum static load, 2,500 lbf
- Drive electronics
- integrated integrated position servo loop control · datasheet p.2
- Position feedback
- magnetic encoder high resolution magnetic encoder · datasheet p.2
- Linear speed
- 0.26 mm/s at rated 1,500 lbf, 10% duty cycle · datasheet p.3 0.6 mm/s no load @ 28 VDC
- Linear backlash
- 300 µm free play, 0.012 inches with 50 lbf · datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Size
- 3.88 x 4.75 x 14.75 inches long
- Power
- 28 VDC
- Rated power point
- 1500 lb @ 0.26 in/sec
- Weight
- 8.1 lbs
- Motor Type
- 24 VDC permanent magnet brush-type
- Brake Type
- 24 VDC permanent magnet static
- Output Shaft
- Ball screw 0.2 inches / turn
- Electrical Stroke
- 7.75 inches
- No Load Speed @ 28 VDC
- 0.6 inches / sec
- Rated Torque and Speed
- 1,500 lbf (6,670 N) @ 0.26 inches / sec with a 10% duty cycle
- Maximum Static Load
- 2,500 lbf (11,120 N)
- Electrical Command Interface
- Isolated half duplex RS-4852
About
The Model 290 Linear Servo Actuator is designed for high performance applications, featuring a digital communications interface and a robust structural design. It provides 1,500 lbf at 0.26 inches per second for up to 7.75 inch strokes. A key feature is its homing sequence, which determines the end of travel on startup, ensuring proper positioning along its stroke. This flexibility allows for a drop-in servo actuator solution for various systems. The actuator incorporates two NFeB Permanent Magnet DC brush motors and two failsafe electromagnetic brakes. It boasts low endplay and high efficiency steel gearing, with a trunnion mount for fixed end and traveling nut endfitting, and a ball screw/nut power screw assembly. Typical applications include flight control surface actuation in unmanned air vehicles (tactical, MALE, HALE), optionally piloted air vehicles (OPV), utility actuation such as throttle control, doors, and spoilers, and electric aircraft (eVTOL, eSTOL, air taxis, urban air mobility vehicles) for propeller pitch control, tilting mechanisms, flight control, and landing gear.
