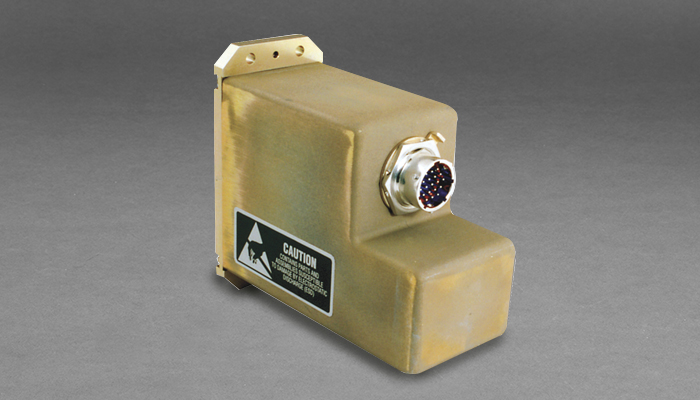

Model 905 Rotary Actuator
Moog Space Defense Group
The Model 905 Rotary Servo Actuator is designed to position the control surfaces of the AQM-37D target drone and operates under extreme environmental conditions.
Typed specifications19 values
Discloses 1 of 9 fields engineers filter by in this category (category median 2).
- Mass
- 272.16 g Model 220 · datasheet p.4 1.27 kg Model 820 | 907.18 g Model 863 | 1.77 kg Model 935 | 5.22 kg Model 965
- Envelope (L×W×H)
- 2.3 x 4.9 x 5.4 inches product page
- Supply voltage
- 28 V nom. · Model 220 · datasheet p.4 28 V | 28 V nom. · Model 820 | 28 V nom. · Model 863 | 28 V nom. · Model 935 +1
- Data interface
- analog datasheet p.3 other R/C PWM | RS-232 | RS-422 | RS-485 +1
- Export status
- controlled United States; regime not stated, licence may be required · datasheet p.8
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Size
- 2.3 x 4.9 x 5.4 inches
- Load Torque (Rated)
- 150 in-lbs
- Load Torque (Peak)
- 300 in-lbs
- Stroke
- ±33°
- Weight
- 3 lbs
- Power
- 28 VDC and ±15 VDC
- Power point
- 150 in-lbs @ 175 deg/sec
- No load speed
- 250 deg/sec
About
The Moog Model 905 Rotary Servo Actuator is specifically engineered for demanding aerospace applications, such as positioning the control surfaces of the AQM-37D target drone. This actuator is built to withstand extreme environmental conditions, ensuring reliable performance in challenging operational scenarios. Key features include a compact size of 2.3 x 4.9 x 5.4 inches and a lightweight design at 3 lbs. It operates on 28 VDC and ±15 VDC power, delivering a power point of 150 in-lbs at 175 deg/sec and a peak torque of 300 in-lbs. The actuator incorporates an analog command input, an SmCo permanent magnet DC motor, and electronic position and torque limiting for precise control. A film position transducer provides accurate feedback, while high-efficiency steel gearing and mechanical stops contribute to its robust structural design. The Model 905 also features a fail-safe brake (on the -01 variant only), a ±10 VDC input command signal, low backlash, and a position output signal, with a no-load speed of 250 deg/sec and a stroke of ±33°.
