Model 915 Rotary Actuator
Moog Space Defense Group

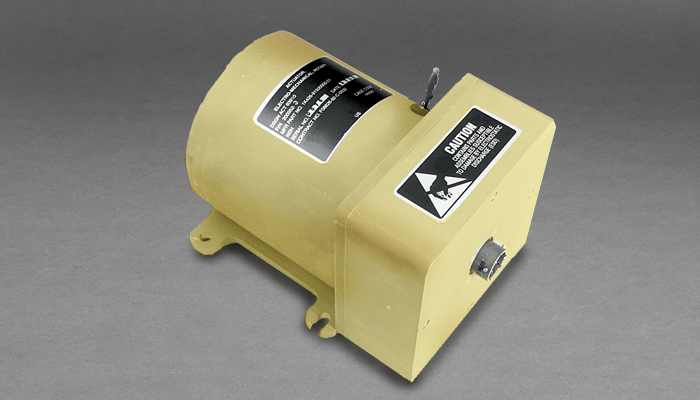

The Model 915 Rotary Servo Actuator is designed to position control surfaces and operate under extreme environmental conditions, specifically used in the QF-4 unmanned air vehicle.
Typed specifications2 values
Discloses 0 of 9 fields engineers filter by in this category (category median 2).
- Envelope (L×W×H)
- 4.95 x 4.5 x 6.2 inches product page
- Export status
- controlled United States; regime not stated, licence may be required · datasheet p.8
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Size
- 4.95 x 4.5 x 6.2 inches
- Load Torque
- 300 in-lbs Peak
- Stroke
- ±46°
- Weight
- 7 lbs
- Power
- 28 VDC
- No load speed
- 250 deg/sec
About
The Model 915 Rotary Servo Actuator is a robust and efficient solution for precise control surface positioning, as demonstrated by its application in the QF-4 unmanned air vehicle. This actuator is engineered to withstand extreme environmental conditions, ensuring reliable performance in demanding aerospace and defense scenarios. Key features include a compact size of 4.95 x 4.5 x 6.2 inches and a lightweight design at 7 lbs. It operates on 28 VDC power and delivers a peak torque of 300 in-lbs. The actuator incorporates an analog command input, electronic position and torque limiting, and a film position transducer for accurate feedback. Further enhancing its capabilities are an output shaft disconnect clutch, low backlash, a ±10 VDC input command signal, and high-efficiency steel gearing. It also provides a position output signal and boasts a no-load speed of 250 deg/sec with a stroke of ±46°. The Model 915 can be tailored to fit specific application requirements, making it a versatile component for various actuation needs.
