Linear Actuators
Moog Space Defense Group
Moog's linear actuators translate rotary motion to linear motion, offering high performance DC motors coupled to high efficiency gearing for precise control in various applications.
Typed specifications46 values
Discloses 3 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 2.72 kg Model 290 · datasheet p.5 340.19 g Model 909 | 2.86 kg Model 973 | 3.67 kg Model 974 | 2.15 kg Model 981 +4
- Envelope (L×W×H)
- 2.50 x 4.05 x 14.00 (63.5 x 102.9 x 355.6) product page 381 x 108.46 x 48.26 Model 290, 15 x 4.27 x 1.9 in | 63.5 x 90.68 x 63.5 Model 909, 2.5 x 3.57 x 2.5 in | 82.6 x 90.4 x 283.7 Model 973, 3.25 x 3.56 x 11.17 in | 98.6 x 120.7 x 374.6 Model 974, 3.88 x 4.75 x 14.75 in +2
- Supply voltage
- 28 V nom. · power, all linear models · datasheet p.5 28 V | 28 V | 28 V | 28 V +1
- Data interface
- analog datasheet p.3 RS-232 | RS-422 | RS-485 | CAN
- Export status
- controlled United States; regime not stated, licence may be required · datasheet p.8
- Mechanism type
- linear actuator datasheet p.5
- Transmission
- lead screw or ball screw ball screw or lead screw / nut assembly · datasheet p.5
- Stroke
- 196.85 mm Model 290 · datasheet p.5 19.05 mm Model 909 | 114.3 mm Model 973 | 184.15 mm Model 974 | -16.51–16.51 mm Model 981
- Output force
- 1 500 N Model 290, rated · datasheet p.5 2 500 N Model 290, stall | 12 N Model 909, rated | 350 N Model 973, rated | 1 120 N Model 973, stall +5
- Drive electronics
- integrated Models 981 and 290, integrated electronics · datasheet p.5
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Actuator Model
- 981*
- Size in (mm)
- 2.50 x 4.05 x 14.00 (63.5 x 102.9 x 355.6)
- Force lbs
- 10 Rated 30 Stall
- Stroke in
- ±.65
- Weight lbs
- 4.75
- Power vdc
- 28
- Actuator Model
- 909
- Size in (mm)
- 2.5 x 3.57 x 2.5 (63.5 x 90.68 x 63.5)
- Force lbs
- 12 Rated
- Stroke in
- 0.75
- Weight lbs
- 0.75
- Power vdc
- 28
About

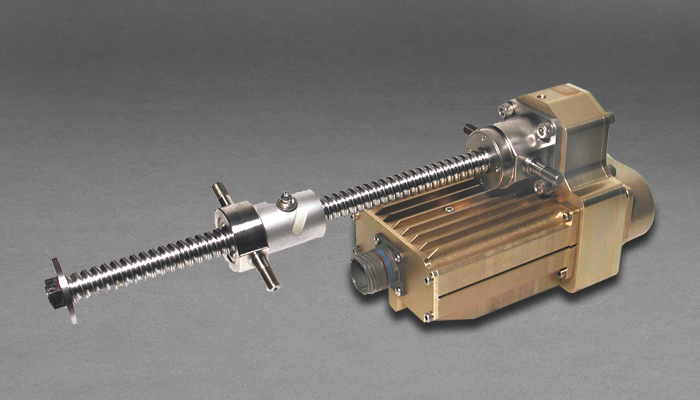

Linear actuators translate rotary motion to linear motion and share similar features and applications with rotary units. This configuration is designed to control linear motion, utilizing high-performance DC motors coupled to high-efficiency gearing. Typically, a ball screw or lead screw/nut assembly is employed to convert rotary to linear motion. These actuators often integrate a position transducer and a fail-safe brake within a robust structural design. Moog can pair the actuator with position loop servo control electronics and offers redundancy options through the motor and feedback device. With over 35 years of experience, Moog provides in-house design, manufacturing expertise, engineering support, and qualification for these products. Products range from 100 to 2,000 lbf for linear configurations, and assemblies can be offered with integral servo control electronics. Moog supports various communication interfaces including analog (+/- 10 VDC), RS232/422/485, R/C PWM, and CAN Bus, and can design for redundancy as required by the customer.
