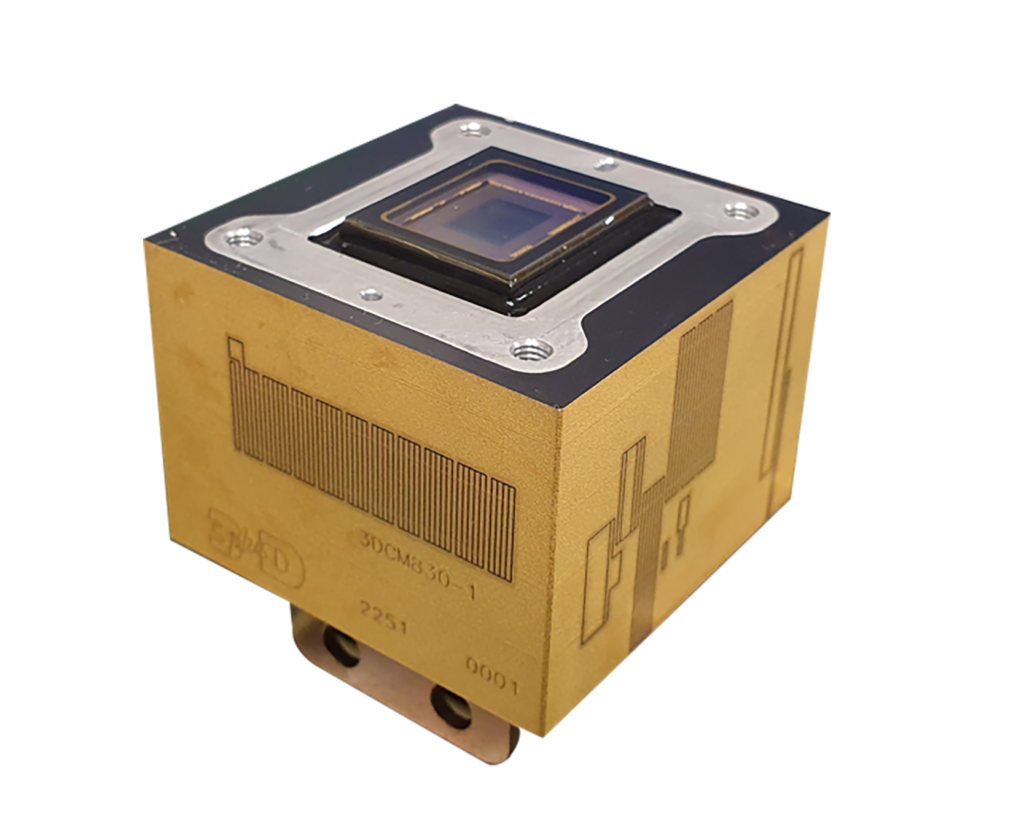

CASPEX 1.3Mpx SWIR Space Camera Head
3D Plus (HEICO)
Space-qualified 1.3-megapixel InGaAs SWIR camera head (3DCM880) with 1280×1024 resolution at 134 fps, global shutter, and FPGA-based processing in a 40×40×44 mm package. Ideal for imaging in constrained-light environments.
Key figurescomparable across the catalogue
- Mass
- 0.14 kg
- Largest dimension
- 44 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Resolution
- 1280 × 1024 pixels (1.3 Mpx)
- Sensor type
- Global Shutter InGaAs CMOS (SWIR)
- Maximum frame rate
- 134 fps
- Read noise
- 240 e⁻
- Dark current
- 28 ke⁻/s at 25°C
- Full well capacity
- 170,000 e⁻
- Operating temperature
- -55°C to +70°C
- TID tolerance
- >40 krad(Si)
- SEL letth
- >60 MeV.cm²/mg
- Dimensions
- 40 × 40 × 44 mm³
- Mass
- 140 g
- Package
- CE4c (77-pin PGA)
- Power supply
- 5 V
- Part number
- 3DCM880
About
The 3D PLUS CASPEX 1.3Mpx SWIR Space Camera Head (3DCM880) is an all-in-one space-qualified short-wave infrared imaging module integrating a 1280×1024 pixel global shutter InGaAs CMOS sensor with a user-reconfigurable FPGA-based processing architecture. The SWIR spectral capability enables imaging in constrained-light environments and through atmospheric haze, complementing the visible-band CASPEX 4M and 12M variants.
Housed in a compact 40×40×44 mm³ package weighing 140 g, the module includes integrated DC-DC converters, processing memories, and storage memories, along with configurable embedded image processing capabilities. The 77-pin PGA (CE4c) interface provides 22 LVDS pairs, JTAG configuration, and 5V supply connectivity, using the same form factor as the 12M variant for mechanical interchangeability.
Sensor performance includes a maximum frame rate of 134 fps, 240 e⁻ read noise, 28 ke⁻/s dark current at 25°C, and 170k e⁻ full well capacity. Radiation performance includes TID tolerance greater than 40 krad(Si) and SEL LETth greater than 60 MeV.cm²/mg. Operating temperature spans -55°C to +70°C.
The CASPEX SWIR is suited for scientific imaging, Earth observation in the SWIR band (700 nm–1700 nm), navigation in low-light conditions, and rendezvous and docking applications.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
