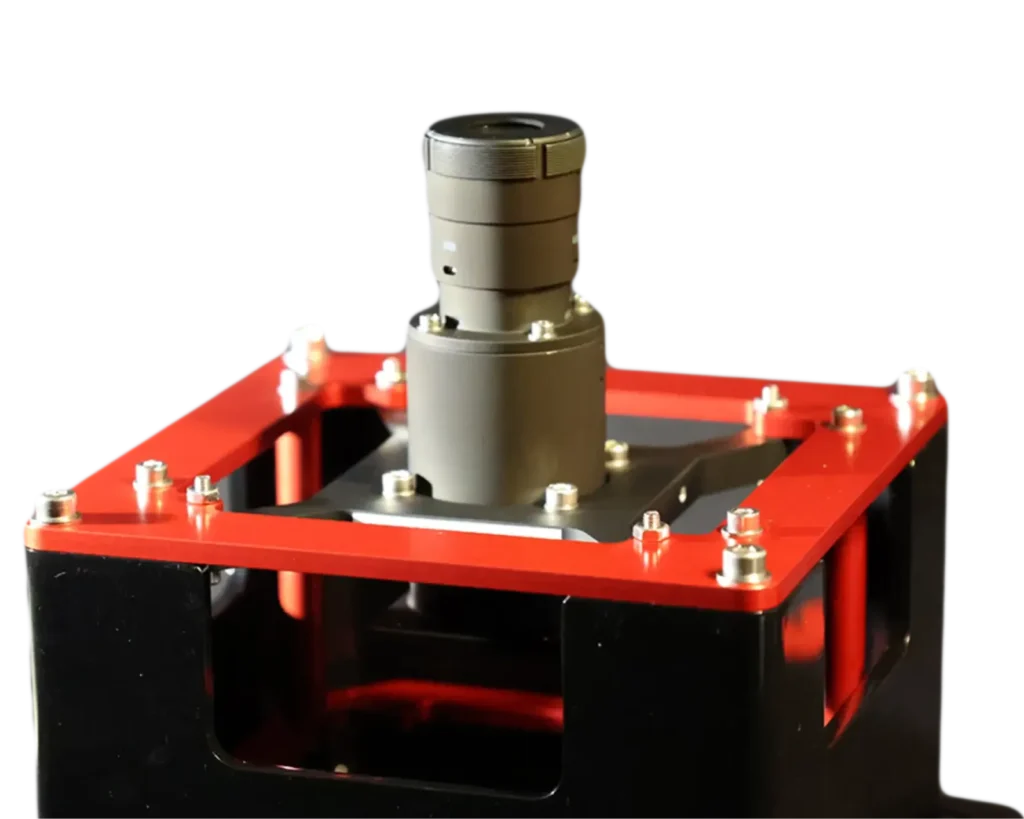

TriScape50
Simera Sense
The TriScape50 is an Earth Observation camera designed for CubeSats, offering real-time HD video capabilities and covering large areas of Earth quickly.
Typed specifications5 values
Discloses 2 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 30 m product page
- Envelope (L×W×H)
- 5.5 µm product page
- Swath width
- 120 km product page
- Operating temperature
- -10 °C product page
- Focal length
- 93.9 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier25 lines, in the manufacturer's own wording
- GSD at 500 km
- 30 m
- Swath at 500 km
- 120 km
- Hd resolution (MPixel)
- 12.6 MP
- Volume
- 1U
- Video
- 1080p30
- Spectral range
- 450–670 nm
- Focal length
- 93.9 mm
- Aperture
- 11.75 mm
- Full field of view
- 13.68° x 10.28°
- Configuration
- Snapshot/Video
- Sensor technology
- CMOS global shutter
- Resolution
- 4096 x 3072 pixels
- Pixel size
- 5.5 µm
- Pixel depth
- 10 bit
- Spectral filter
- RGB Bayer Pattern (with NIR cut-off)
- Storage capacity
- 128 Gigabyte EDAC-protected NAND Flash
- Image reduction
- - Binning of RAW data - CCSDS 122.0-B-2 Lossy/Lossless (optional)
- Image preview
- Thumbnailing
- Control interface options
- - I²C - SPI - RS-422 - SpaceWire (ECSS-E-ST-50-12C)
- Data interface options
- - LVDS - SpaceWire (ECSS-E-ST-50-12C)
- Power supply
- 5VDC (±5%), 1.8 A
- Volume (2)
- 120.5 mm x 95.88 mm x 90.17 mm
- Mass
- 0.51 (±5%) kg
- Operating temperature
- -10°C to +50°C
- Radiation
- Fully functional to 15 kRad
About
The TriScape50 is an Earth Observation camera engineered for easy integration into 3U or 6U CubeSats. It provides real-time HD video capabilities, enabling efficient capture of changes on Earth. The imager is built to cover large areas of the planet rapidly. Key features include a Ground Sample Distance (GSD) of 30 meters at 500 km altitude, a 120 km Swath at 500 km, and a 12.6 MP HD resolution. It occupies a 1U volume and supports 1080p30 video. The spectral range is 450–670 nm. Technical specifications detail a focal length of 93.9 mm, an aperture of 11.75 mm, and a full field of view of 13.68° x 10.28°. It supports both snapshot and video configurations, utilizing CMOS global shutter sensor technology with a resolution of 4096 x 3072 pixels and a pixel size of 5.5 µm. The pixel depth is 10 bit, and it features an RGB Bayer Pattern spectral filter with NIR cut-off. The camera includes 128 Gigabyte EDAC-protected NAND Flash for storage. Image reduction options include binning of RAW data and optional CCSDS 122.0-B-2 Lossy/Lossless compression, with thumbnailing for image preview. Control interface options are I²C, SPI, RS-422, and SpaceWire (ECSS-E-ST-50-12C). Data interface options are LVDS and SpaceWire (ECSS-E-ST-50-12C). It operates on a 5VDC (±5%), 1.8A power supply. The camera’s volume is 120.5 mm x 95.88 mm x 90.17 mm, and its mass is 0.51 (±5%) kg. It is designed for an operating temperature range of -10°C to +50°C and is fully functional to 15 kRad radiation.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
