Mantis
Dragonfly Aerospace

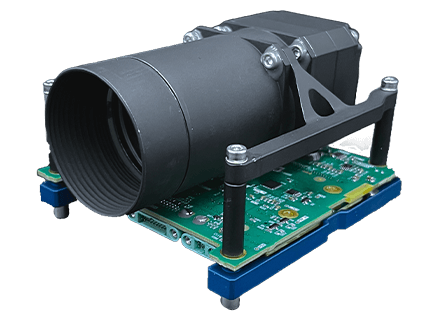

The Mantis imager provides advanced multispectral or hyperspectral imaging capabilities for CubeSats, featuring integrated high-speed data storage.
Typed specifications61 values
Discloses 8 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 32 m at 500 km, MS · datasheet p.1 16 m at 500 km, PAN | 16 m at 500 km, RGB | 32 m MS, multispectral/hyperspectral, at 500 km | 16 m PAN, multispectral/hyperspectral, at 500 km +1
- Mass
- 500 g max · incl. electronics · datasheet p.1 500 g max · incl. eleсtronics
- Envelope (L×W×H)
- 65 x 90 x 107 datasheet p.1 1U (65 mm x 90 mm x 107 mm) | 1U (65 mm x 90 mm x 107 mm)
- Swath width
- 32 km at 500 km · datasheet p.1
- Spectral bands
- 96 HS available · datasheet p.1 96 hyperspectral (96 x HS available) | 6 MS | 6 multispectral (6 x MS)
- Supply voltage
- 5 V nom. · 5V DC · datasheet p.1 5 V DC
- Power consumption
- 6 W max · Imaging mode · datasheet p.1 4 W max · Readout mode
- Data interface
- LVDS datasheet p.1 SPI TMTC | SpaceWire | I2C TMTC | SPI +7
- Operating temperature
- 10 °C min · datasheet p.1 30 °C max | 10–30 °C
- TRL
- 9 datasheet p.1 9 | 9
- Camera type
- RGB datasheet p.1 multispectral 6 x MS | hyperspectral 96 x HS available | multispectral | hyperspectral
- Scan mode
- pushbroom multispectral / hyperspectral · datasheet p.1 frame RGB (snap shot)
- Reference altitude
- 500 km datasheet p.1
- Volume
- 1 U datasheet p.1
- Survival temperature
- -20 °C min · datasheet p.1 55 °C max | -20–55 °C
- Bit depth
- 10 bit multispectral (10-bit or 12-bit) · datasheet p.1 8 bit RGB / hyperspectral (8-bit or 10-bit) | 8–10 bit HYPERSPECTRAL | 10–12 bit MULTISPECTRAL | 8–10 bit RGB +2
- On-board storage
- 128 GB datasheet p.1
- On-board compression
- lossless (CCSDS 122 / JPEG-LS) J2K lossless · datasheet p.1 lossy (JPEG / JPEG 2000) J2K lossy | none (raw) RAW
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier51 lines, in the manufacturer's own wording
- Spatial resolution (GSD) at 500 km
- 16 m
- Swath at 500 km
- 32 km
- Mass (incl. electronics)
- <0.5 kg
- Spectral bands
- Standard RGB
- Imager type
- Snap shot
- Physical size
- 1U (65 mm x 90 mm x 107 mm)
- Data format
- 8-bit or 10-bit
- Integrated mass data storage
- 128 Gigabytes
- Compression
- RAW or J2K lossless or lossy
- Data interface
- LVDS, SpaceWire
- Tmtc interface
- SPI, I2C, CAN, RS422/ RS485
- Power usage imaging mode
- <6 W
- Power usage readout mode
- <4 W
- Power supply
- 5 V DC
- Operating temperature
- +10°C to +30°C
- Survival temperature
- -20°C to +55°C
- TRL
- 9
- Spatial resolution (GSD) at 500 km (2)
- PAN 16 m; MS 32 m
- Swath at 500 km (2)
- 32 km
- Mass (incl. electronics) (2)
- <0.5 kg
- Spectral bands (2)
- 6 x MS
- Imager type (2)
- Push broom
- Physical size (2)
- 1U (65 mm x 90 mm x 107 mm)
- Data format (2)
- 10-bit or 12-bit
- Integrated mass data storage (2)
- 128 Gigabytes
- Compression (2)
- RAW or J2K lossless or lossy
- Data interface (2)
- LVDS, SpaceWire
- Tmtc interface (2)
- SPI, I2C, CAN, RS422/ RS485
- Power usage imaging mode (2)
- <6 W
- Power usage readout mode (2)
- <4 W
- Power supply (2)
- 5 V DC
- Operating temperature (2)
- +10°C to +30°C
- Survival temperature (2)
- -20°C to +55°C
- TRL (2)
- 9
- Spatial resolution (GSD) at 500 km (3)
- PAN 16 m; MS 32 m
- Swath at 500 km (3)
- 32 km
- Mass (incl. electronics) (3)
- <0.5 kg
- Spectral bands (3)
- 96 x HS available
- Imager type (3)
- Push broom
- Physical size (3)
- 1U (65 mm x 90 mm x 107 mm)
- Data format (3)
- 8-bit or 10-bit
- Integrated mass data storage (3)
- 128 Gigabytes
- Compression (3)
- RAW or J2K lossless or lossy
- Data interface (3)
- LVDS, SpaceWire
- Tmtc interface (3)
- SPI, I2C, CAN, RS422/ RS485
- Power usage imaging mode (3)
- <6 W
- Power usage readout mode (3)
- <4 W
- Power supply (3)
- 5 V DC
- Operating temperature (3)
- +10°C to +30°C
- Survival temperature (3)
- -20°C to +55°C
- TRL (3)
- 9
About
The Mantis imager is a compact solution for advanced multispectral or hyperspectral imaging, specifically designed for CubeSats as small as 2U. It offers powerful imaging capabilities and integrates large, high-speed data storage to support demanding missions. The imager is available in RGB, Multispectral, and Hyperspectral configurations. All configurations share a physical size of 1U (65 mm x 90 mm x 107 mm), integrated mass data storage of 128 Gigabytes, and support RAW or J2K lossless or lossy compression. Data interfaces include LVDS and SpaceWire, while TMTC interfaces are SPI, I2C, CAN, RS422/RS485. Power usage is less than 6W in imaging mode and less than 4W in readout mode, with a 5V DC power supply. It operates between +10°C and +30°C and survives temperatures from -20°C to +55°C. The product has a Technology Readiness Level (TRL) of 9. The RGB version offers a spatial resolution (GSD) of 16m at 500km, a swath of 32km at 500km, and uses standard RGB spectral bands with a snapshot imager type. The Multispectral version provides PAN 16m and MS 32m GSD at 500km, a 32km swath at 500km, 6 x MS spectral bands, and is a push broom imager. The Hyperspectral version also has PAN 16m and MS 32m GSD at 500km, a 32km swath at 500km, 96 x HS available spectral bands, and is a push broom imager.
