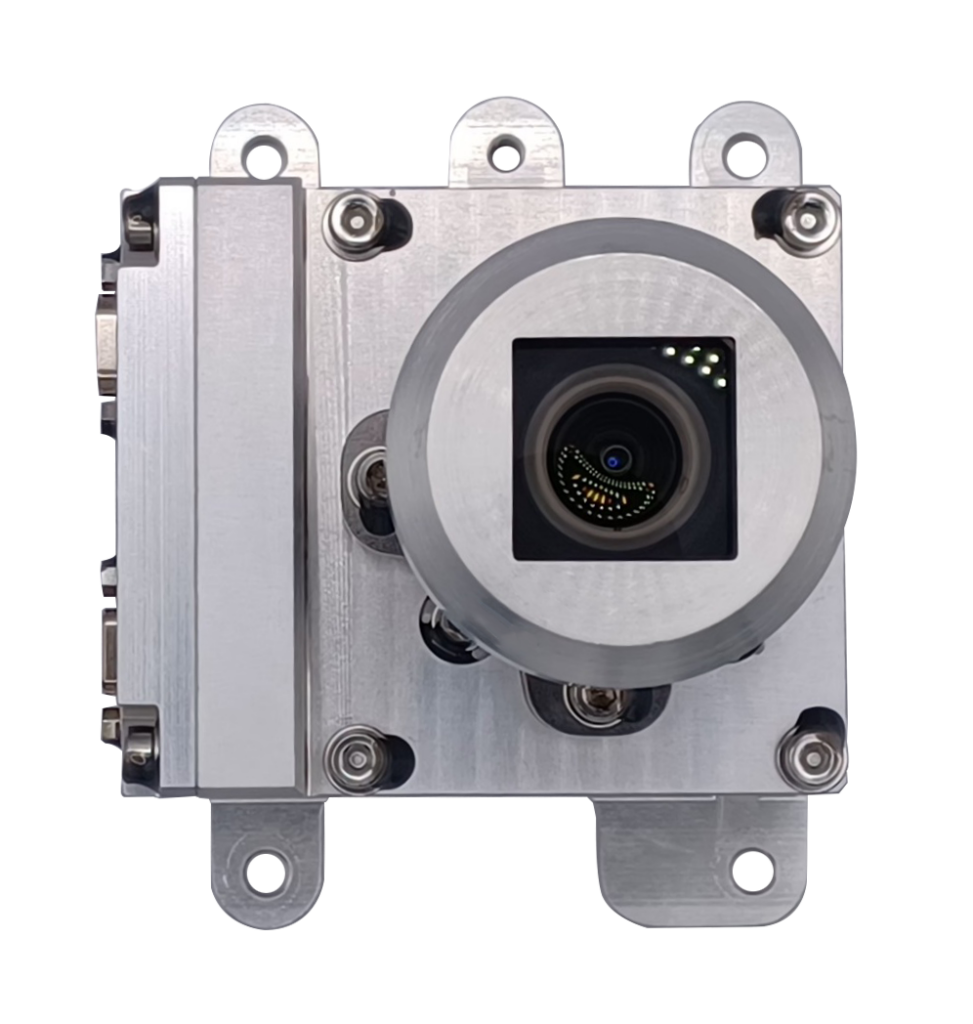

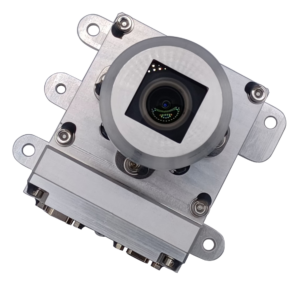

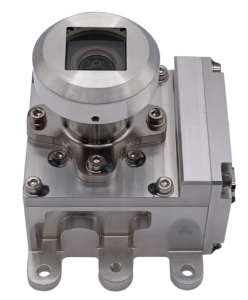

IRIS 4Mpx Space Camera System
3D Plus (HEICO)
Turn-key 4-megapixel space camera system combining CASPEX 4M camera head with space-grade optics and mechanical casing. SpaceWire interface, <400 g mass, and focal length options from 8 mm to 50 mm for LEO, GEO, and deep-space missions.
Typed specifications56 values
Discloses 8 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 400 g max · datasheet p.1 400 g max · IRIS 8 / 11 / 25 / 50 mm
- Envelope (L×W×H)
- 86x72x80 mm³ datasheet p.1 86 x 72 x 76 IRIS 11 mm | 86 x 72 x 80 IRIS 25 mm | 86 x 72 x 120 IRIS 50 mm | 86 x 72 x 69 IRIS 8 mm
- Sensor resolution
- 4 Mpx CASPEX 4M core, global shutter · datasheet p.3
- Spectral bands
- 1 datasheet p.1 450 min | 700 max
- Supply voltage
- 4.5 V min · datasheet p.1 9 V max
- Power consumption
- 1.5 W Average (25°C) · datasheet p.1 1.5 W Average Power Consumption (25°C) | 1.5 W average power consumption at 25°C
- Data interface
- Space Wire datasheet p.1 LVDS 12 LVDS pairs (CASPEX 4M) | GPIO 13 GPIO (CASPEX 4M)
- Operating temperature
- -40 °C min · datasheet p.1 55 °C max
- Radiation tolerance (TID)
- 30 krad datasheet p.3 30 krad min · CASPEX 4M Visible, TID > 30 krad(Si), SEL immune | 40 krad | 40 krad
- Camera type
- panchromatic Mono version (CASPEX 4M Visible: RGB or Mono) · datasheet p.4 RGB RGB version (CASPEX 4M Visible: RGB or Mono)
- Scan mode
- frame global shutter, full frames · datasheet p.3
- Field of view
- 56 ° IRIS 11 mm, edge to edge, 56° (H) x 56° (V) · datasheet p.3 25 ° IRIS 25 mm, edge to edge, 25° (H) x 25° (V) | 12.5 ° IRIS 50 mm, edge to edge, 12.5° (H) x 12.5° (V) | 80 ° IRIS 8 mm, edge to edge, 80° (H) x 80° (V)
- Spectral range
- 400–1 000 nm CASPEX 4M Visible sensor spectral response · datasheet p.4 450–700 nm IRIS 11 mm | 450–700 nm IRIS 25 mm | 450–700 nm IRIS 50 mm | 450–700 nm IRIS 8 mm +1
- Focal length
- 25 mm datasheet p.1 11.6 mm IRIS 11 mm | 25 mm IRIS 25 mm | 50 mm IRIS 50 mm | 7.9 mm IRIS 8 mm
- Satellite class
- GEO datasheet p.1
- Detector
- CMOS Global shutter · datasheet p.1
- F-number
- 9 IRIS 11 mm, f/9 · datasheet p.3 9 IRIS 25 mm, f/9 | 7.5 IRIS 50 mm, f/7.5 | 8 IRIS 8 mm, f/8
- Frame rate
- 2 fps 2 full frames per second · datasheet p.3 2 fps IRIS 11 mm | 2 fps IRIS 25 mm | 2 fps IRIS 50 mm | 2 fps IRIS 8 mm
- Sensor format (pixels)
- 2048 x 2048 datasheet p.3
- Pixel pitch
- 5.5 µm CASPEX 4M Visible pitch · datasheet p.4
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Image sensor
- 2048 × 2048 Visible CMOS
- Resolution
- 4 Megapixels
- Frame rate (Burst)
- Up to 5 fps
- Frame rate (Continuous)
- Up to 2 fps

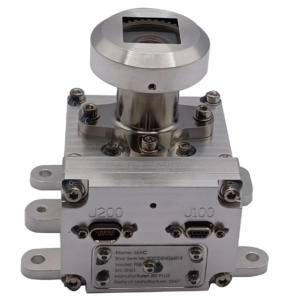

- Interface
- SpaceWire (2× MDM 9-pin)
- Power supply
- 4.5 V to 9 V
- Operating temperature
- -40°C to +55°C
- Dimensions
- 86 × 72 × 69 mm³
- Mass
- <400 g
- Casing
- 5 mm aluminum
- TID tolerance
- >30 krad
- SEL letth
- 60 MeV.cm²/mg
- Focal length options
- 8 mm, 11 mm, 25 mm, 50 mm
About
The 3D PLUS IRIS 4Mpx Space Camera System is a turn-key imaging solution that combines the space-qualified CASPEX 4 Megapixel camera head with space-grade optical lenses and a structural mechanical casing, delivering a complete ready-to-integrate camera for LEO, GEO, and deep-space missions. The system outputs imagery via SpaceWire (2× MDM 9-pin connectors), eliminating the need for custom camera electronics development.
The IRIS is available in eight configurations covering four focal lengths (8 mm, 11 mm, 25 mm, 50 mm) in both monochrome and RGB versions. The 5 mm aluminum casing weighs less than 400 g and accommodates various integration approaches. Burst frame rates reach 5 fps with sustained continuous operation at 2 fps.
Radiation performance inherits from the CASPEX 4M camera head: TID tolerance greater than 30 krad and SEL LETth of 60 MeV.cm²/mg. Operating temperature spans -40°C to +55°C. Power supply accepts 4.5–9V, compatible with standard spacecraft secondary power rails.
Suitable applications include scientific imaging, platform monitoring, star-tracking, terrain-relative navigation, and rendezvous and docking systems. Part numbers range from 3DCS04M080942 (8 mm mono) to 3DCS04M500962 (50 mm RGB).
