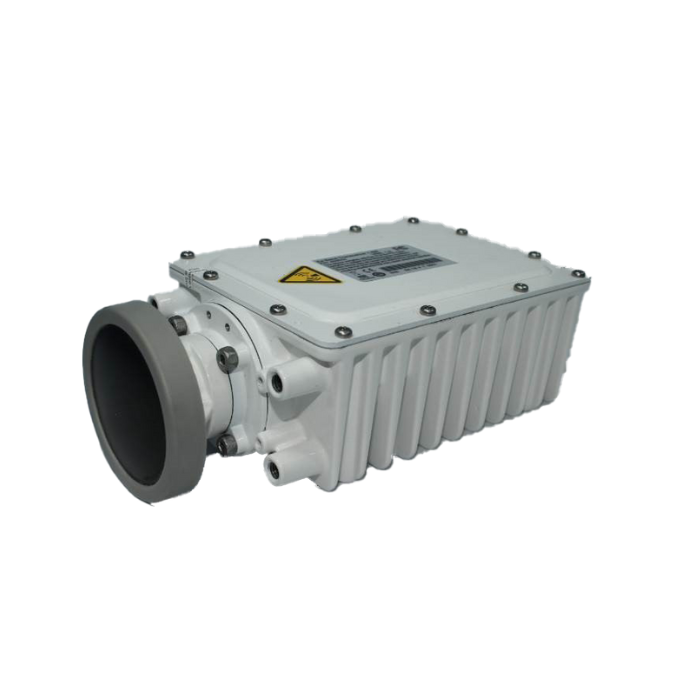

XRF-33F/XRF-34F High-Value Ka-Band VSAT Transceiver
SpaceBridge Inc.
A Ka-band VSAT transceiver supporting the latest S-Band modem technologies with 50 MHz reference compatibility, available in 3W and 4W transmit power options.
Typed specifications60 values
Discloses 4 of 11 fields engineers filter by in this category (category median 6).
- Mass
- 1 100 g Including feed · datasheet p.2
- Frequency range
- 27 600 MHz nom. · Local Oscillator Frequency · datasheet p.2 1 400 MHz min · IF Input Frequency Range | 950 MHz min · IF Output Frequency Range (Rx Subsystem) | 17 800 MHz min · RF Input Frequency (Rx Subsystem) | 29 000 MHz min · RF Output Frequency Range +18
- Envelope (L×W×H)
- 208LLx100Hx49W datasheet p.2 208 x 100 x 49 208LLx100Hx49W as printed
- TX RF output power
- 3 W nom. · XRF33F, operational power @ P1dB (20 dBc ACPR) · datasheet p.2 3 W XRF33F | 3 W XRF33F Operational Power @ P1dB | 4 W XRF34F | 4 W XRF34F Operational Power @ P1dB +1
- Supply voltage
- 18 V min · Rx Subsystem · datasheet p.2 18 V min · Supply Voltage (Rx Subsystem) | 18 V min · Supply Voltage (TX Subsystem) | 18 V min · TX Subsystem | 22 V max · Rx Subsystem +5
- Power consumption
- 4 W Rx Subsystem · datasheet p.2 4 W Rx Subsystem Power Consumption | 25 W XRF33F | 25 W XRF33F Power Consumption | 40 W XRF34F +1
- Operating temperature
- -40 °C min · datasheet p.2 55 °C max | -40–55 °C other options available
- Function
- other Ka-Band outdoor VSAT transceiver (BUC + LNB) · datasheet p.1
- Link use
- other Ka-band VSAT terminal (professional and consumer broadband) · datasheet p.1
- Frequency band
- S S-Band IF modem interface · datasheet p.1 Ka TX and RX
- RF connector
- F RX IF output, 75 Ohm F-type receptacle · datasheet p.2 F TX IF input, 75 Ohm F-type receptacle
- Power draw, receive
- 4 W nom. · Rx subsystem (LNB) · datasheet p.2
- Power draw, transmit
- 25 W nom. · XRF33F, TX subsystem (BUC) · datasheet p.2 40 W nom. · XRF34F, TX subsystem (BUC)
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier19 lines, in the manufacturer's own wording
- Transmit power
- 3 W (XRF-33F) or 4 W (XRF-34F)
- Lnb reference options
- PLL (+/-25 ppm) or DRO (+/-4 MHz)
- Reference frequency
- 50 MHz (10 MHz option available)
- Enclosure rating
- IP-67 weatherproof
- Polarizer
- Field-configurable circular polarizer
- Transmit power (2)
- 4.0 W
- Lnb reference options (2)
- ±4 MHz
- XPD (TX)
- 25 dB
- XPD (RX)
- 20 dB
- IF Input Frequency Range
- 1400 2400 MHz
- RF Output Frequency Range
- 29.0 30.0 GHz
- Local Oscillator Frequency
- 27.6 GHz
- Local Oscillator Ext Ref Frequency
- 50 MHz
- Local Oscillator Ext Ref Frequency (2)
- 10 MHz
- IF Input Impedance
- 75 Ohm
- Supply Voltage
- 18 50 V
- Power Consumption
- 25 W
- Power Consumption (2)
- 40 W
- RF Input Frequency
- 17.8 20.2 GHz
About
The XRF-33F/XRF-34F is a high-value Ka-band VSAT transceiver optimized for high-volume global professional and consumer broadband deployments. It integrates a field-configurable circular polarizer, an S-Band IF modem interface, and an integrated OMT/TRF/RRF assembly for optimized EIRP and G/T performance, reducing installation complexity and cost. Offered in 3W (XRF-33F) and 4W (XRF-34F) transmit power variants, with either PLL (+/-25 ppm) or DRO (+/-4 MHz) LNB options, an IP-67-rated weatherproof enclosure, and 50 MHz reference compatibility (10 MHz option available). Targeted at VSAT service providers and integrators building large-scale Ka-band broadband networks.
