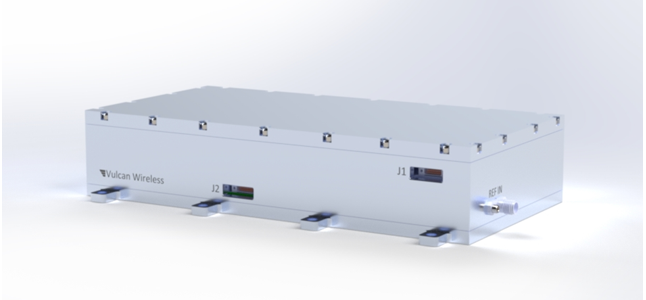

NSR-SDR-K/Ka-HDR-DVB
Vulcan Wireless
A high-speed K/Ka-band software-defined radio transceiver offering DVB-S2 uplink/downlink with variable modulation and coding for LEO, GTO, and Cislunar/Lunar missions.
Typed specifications8 values
Discloses 3 of 13 fields engineers filter by in this category (category median 5).
- Link protocols and waveforms
- DVB-S2 description
- Frequency range
- 30 000 MHz min · Receiver · description 20 000 MHz min · Transmitter | 31 000 MHz max · Receiver | 21 200 MHz max · Transmitter
- TX RF output power
- 5 W typ. · description
- Data rate
- 500 000 kbps max · Downlink speed · description 500 000 kbps max · Uplink speed
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Frequency band
- 20-21.2 GHz Transmitter / 30-31 GHz Receiver (SDA Tranche)
- Configuration
- Full-Duplex
- Downlink speed
- Low Mbps to >500 Mbps
- Uplink speed
- Low Mbps to >500 Mbps
- RF power
- 5 Watts, Variable RF power
- Modulation/coding
- DVB-S2 Uplink/Downlink with Variable Modulation and Coding
- Encryption
- Embedded Software-Based Encryption with optional Integrated TSAB (Type-1) Encryption
- Turn around
- Coherent Turn Around
- Applications
- LEO, GTO, and Cislunar/Lunar applications
About
The NSR-SDR-K/Ka-HDR-DVB is a high-speed K-band radio system built for demanding space communications applications. It operates as a full-duplex transceiver with a transmitter in the 20-21.2GHz range and a receiver in the 30-31GHz range, aligned with SDA Tranche frequency plans. The radio supports downlink and uplink speeds ranging from low Mbps up to greater than 500Mbps, enabling high data rate communications. It delivers 5 Watts of RF power with variable RF power control for link optimization. The system uses DVB-S2 for both uplink and downlink with variable modulation and coding to adapt to link conditions. Security is provided via embedded software-based encryption, with an optional integrated TSAB (Type-1) encryption module available. The radio supports coherent turn-around operation. It is designed for use across LEO, GTO, and Cislunar/Lunar mission applications.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
