Komodo
Dragonfly Aerospace

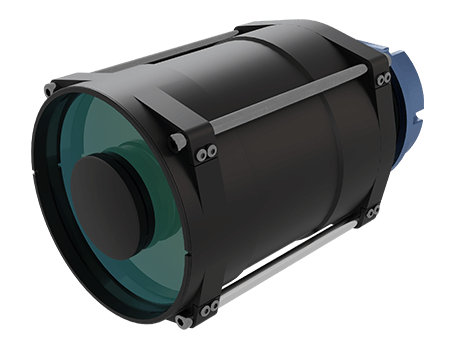

Komodo is a compact 12U high-performance Earth observation camera offering multispectral data for diverse uses, supporting both push-broom and RGB snapshot modes.
Typed specifications49 values
Discloses 7 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 3 m MS binned 2x2, multispectral, at 500 km · datasheet p.1 3 m MULTISPECTRAL MS (binned 2x2) at 500 km | 1.5 m MULTISPECTRAL PAN at 500 km | 1.5 m PAN, multispectral, at 500 km | 1.5 m RGB at 500 km +1
- Mass
- 12 000 g nom. · est · datasheet p.1 12 000 g ~12 kg (est), incl. electronics | 12 000 g est, incl. electronics
- Envelope (L×W×H)
- 200 mm x 200 mm x 340 mm (est) datasheet p.1
- Swath width
- 15 km MULTISPECTRAL at 500 km · datasheet p.1 15 km multispectral, at 500 km | 6.1 km RGB at 500 km | 6.1 km RGB, at 500 km
- Spectral bands
- 11 MS · datasheet p.1 11 multispectral (11 x MS)
- Supply voltage
- 28 V nom. · multispectral, 28V DC · datasheet p.1 5 V DC | 5 V nom. · RGB, 5V DC | 28 V DC
- Power consumption
- 45 W est, MULTISPECTRAL Imaging mode · datasheet p.1 25 W max · MULTISPECTRAL Readout mode | 45 W max · multispectral, imaging mode (est) | 25 W max · multispectral, readout mode (est) | 10 W max · RGB Imaging mode +3
- Data interface
- LVDS datasheet p.1 RS422 TMTC Interface | SpaceWire
- Operating temperature
- 10–30 °C datasheet p.1
- TRL
- 5 datasheet p.1 5
- Camera type
- RGB datasheet p.1 multispectral
- Scan mode
- pushbroom multispectral · datasheet p.1 frame RGB (snap shot)
- Reference altitude
- 500 km datasheet p.1
- Survival temperature
- -20–55 °C datasheet p.1
- Bit depth
- 10 bit multispectral (10-bit or 12-bit) · datasheet p.1 8 bit RGB (8-bit or 10-bit) | 12 bit multispectral (10-bit or 12-bit) | 10 bit RGB (8-bit or 10-bit)
- On-board storage
- 512 GB MULTISPECTRAL · datasheet p.1 128 GB RGB
- On-board compression
- lossless (CCSDS 122 / JPEG-LS) J2K lossless · datasheet p.1 lossy (JPEG / JPEG 2000) J2K lossy | none (raw) RAW
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier32 lines, in the manufacturer's own wording
- Spatial resolution (GSD) at 500 km
- 1.5 m
- Swath at 500 km
- 6.1 km
- Mass (incl. electronics)
- 12 kg
- Spectral bands
- Standard RGB
- Physical size
- 200 mm x 200 mm x 340 mm
- Data format
- 8-bit or 10-bit
- Integrated mass data storage
- 128 Gigabytes
- Compression
- RAW or J2K lossless or lossy
- Data interface
- LVDS, SpaceWire
- Tmtc interface
- RS422
- Power usage imaging mode
- <10 W
- Power usage readout mode
- <5 W
- Power supply
- 5 V DC
- Operating temperature
- +10°C to +30°C
- Survival temperature
- -20°C to +55°C
- TRL
- 5
- Spatial resolution (GSD) at 500 km (2)
- PAN 1.5 / MS 3 m (binned 2x2)
- Swath at 500 km (2)
- 15 km
- Mass (incl. electronics) (2)
- 12 kg
- Spectral bands (2)
- 11 x MS
- Physical size (2)
- 200 mm x 200 mm x 340 mm
- Data format (2)
- 10-bit or 12-bit
- Integrated mass data storage (2)
- 512 Gigabytes
- Compression (2)
- RAW or J2K lossless or lossy
- Data interface (2)
- LVDS, SpaceWire
- Tmtc interface (2)
- RS422
- Power usage imaging mode (2)
- <45 W (est)
- Power usage readout mode (2)
- <25 W (est)
- Power supply (2)
- 28 V DC
- Operating temperature (2)
- +10°C to +30°C
- Survival temperature (2)
- -20°C to +55°C
- TRL (2)
- 5
About
Komodo is a high-performance Earth observation camera designed for space applications, offering capabilities comparable to larger systems within a compact 12U form factor. It generates multispectral data for diverse uses, supporting both push-broom and RGB snapshot modes for flexible Earth observation and Space Situational Awareness (SSA). The camera uniquely combines versatility with high-resolution performance. It is available in two main configurations: RGB and Multispectral. The RGB configuration provides a Spatial Resolution (GSD) of 1.5 m at 500 km and a Swath of 6.1 km at 500 km, with standard RGB spectral bands. It has a mass of 12 kg (including electronics), physical dimensions of 200 mm x 200 mm x 340 mm, and supports 8-bit or 10-bit data formats. It includes 128 Gigabytes of integrated mass data storage, with RAW or J2K lossless or lossy compression. Data interfaces are LVDS and SpaceWire, with TMTC via RS422. Power usage is <10 W in imaging mode and <5 W in readout mode, powered by 5V DC. The Multispectral configuration offers a PAN 1.5 / MS 3 m (binned 2×2) Spatial Resolution (GSD) at 500 km and a Swath of 15 km at 500 km, with 11 x MS spectral bands. It shares the same mass and physical size as the RGB version but supports 10-bit or 12-bit data formats and includes 512 Gigabytes of integrated mass data storage. Compression, data interface, and TMTC interface are identical. Power usage for the multispectral version is estimated at <45 W in imaging mode and <25 W in readout mode, powered by 28V DC. Both configurations operate between +10°C to +30°C and can survive temperatures from -20°C to +55°C. Both configurations have a TRL of 5.
