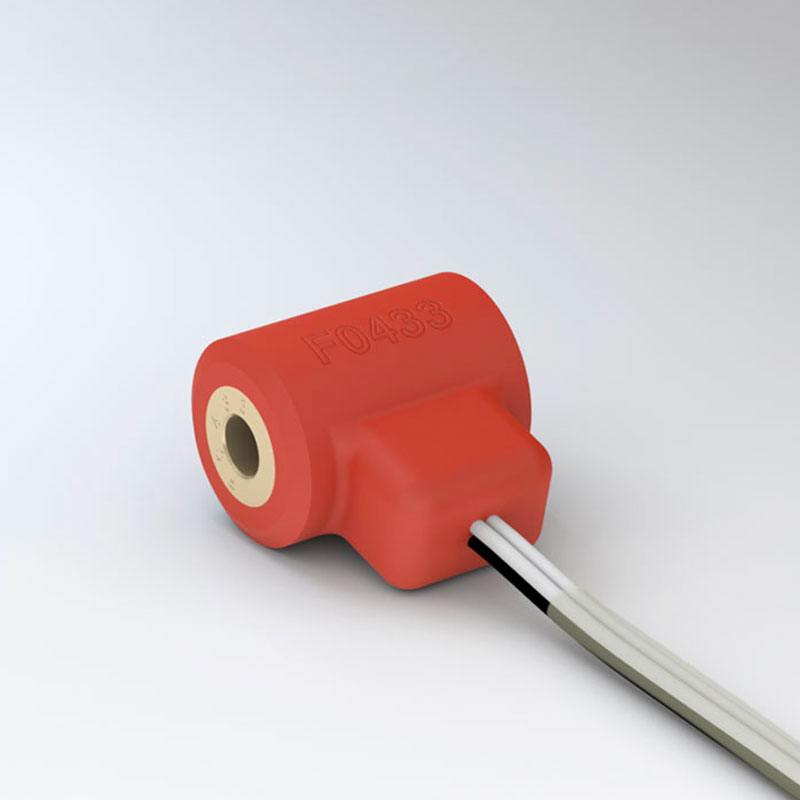

TiNi Frangibolt Actuator FC2
Ensign-Bickford Aerospace & Defense (EBAD)
The EBAD Frangibolt® Actuator is a simple and effective non-pyrotechnic separation system for satellite applications. The FC2 model utilizes a Shape Memory Alloy (SMA) cylinder that expands when heated to its transition temperature, creating strain on a custom Titanium (Ti) notched fastener, causing it to fracture at a predetermined notch and achieve separation. This design […]
Typed specifications4 values
Discloses 0 of 10 fields engineers filter by in this category (category median 2).
- Mass
- 25 g product page
- Envelope (L×W×H)
- #8 product page
- Supply voltage
- 22–36 V product page
- Power consumption
- 25 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Ti fastener size
- #8
- Mass
- 25 g
- Power
- 25 W @ 28 V
- Operational voltage*
- 22-36 V
- Current draw
- .9 A @ 28 V
- Resistance
- 31±3 Ω
- Max load support
- 850 lbf (3,781 N)
- Function time
- 30 s @ 28 V (23ºC)
- Life
- 60 cycles min
- Operating temperature
- -65ºC + 80ºC
- Compressed length (X")
- .960 in
- Diameter (Y")
- .625 in
- Thruhole (Z")
- .169 in
About
The EBAD Frangibolt® Actuator is a simple and effective non-pyrotechnic separation system for satellite applications. The FC2 model utilizes a Shape Memory Alloy (SMA) cylinder that expands when heated to its transition temperature, creating strain on a custom Titanium (Ti) notched fastener, causing it to fracture at a predetermined notch and achieve separation. This design offers flexibility in a compact package. It is easy to reset using a compression reset fixture and replacement of the notched fastener. Key features include non-pyrotechnic operation, easy resetting, redundant firing circuit, maximum reliability through design simplicity, and flight pedigree. The device is comprised of a machined SMA cylinder, encapsulated with redundant resistive heaters and embedded RTDs, all wrapped in a silicone rubber compound for thermal and electrical isolation. It has a minimum qualified life of 60 cycles.
