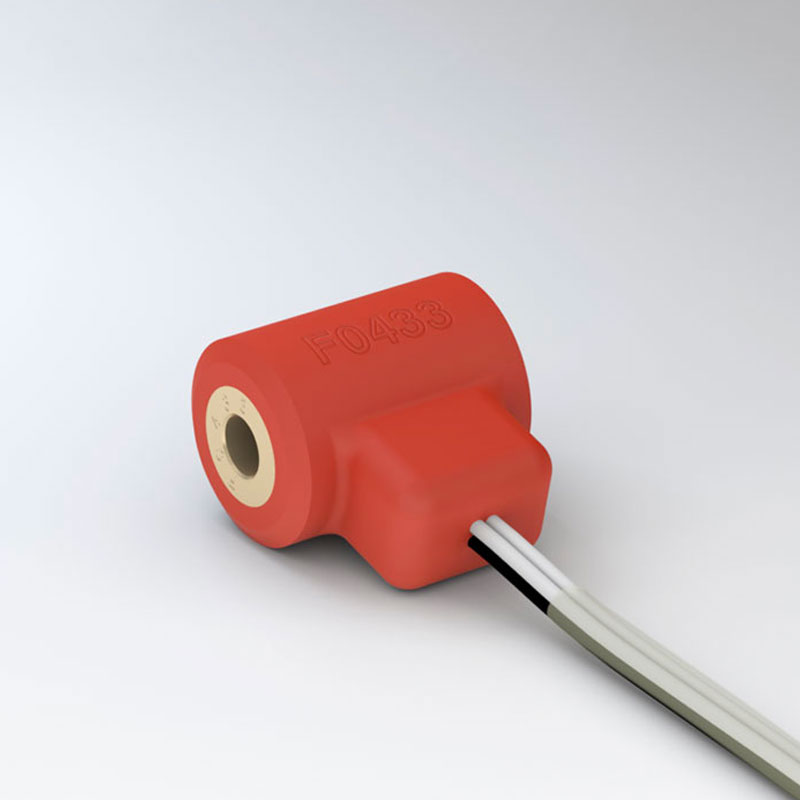

TiNi Frangibolt Actuator FC3
Ensign-Bickford Aerospace & Defense (EBAD)
The EBAD Frangibolt® Actuator is a simple and effective non-pyrotechnic separation system for satellite applications. The FC3 model utilizes a Shape Memory Alloy (SMA) cylinder that expands when heated to its transition temperature, creating strain on a custom Titanium (Ti) notched fastener, causing it to fracture at a predetermined notch and achieve separation. This design […]
Key figurescomparable across the catalogue
- Mass
- 0.04 kg
- Power
- 49 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Ti Fastener Size
- #10
- Mass
- 40 g
- Power
- 49 W @ 28 V
- Operational Voltage*
- 22-36 V
- Current Draw
- 1.75 A @ 28 V
- Resistance
- 16±1.6 Ω
- Max Load Support
- 1,400 lbf (6,227 N)
- Function Time
- 35 s @ 28 V (23ºC)
- Life
- 60 cycles min
- Operating Temperature
- -65ºC + 80ºC
- Compressed Length (X")
- 1.210 in
- Diameter (Y")
- .760 in
- Thruhole (Z")
- .194 in
About
The EBAD Frangibolt® Actuator is a simple and effective non-pyrotechnic separation system for satellite applications. The FC3 model utilizes a Shape Memory Alloy (SMA) cylinder that expands when heated to its transition temperature, creating strain on a custom Titanium (Ti) notched fastener, causing it to fracture at a predetermined notch and achieve separation. This design offers flexibility in a compact package. It is easy to reset using a compression reset fixture and replacement of the notched fastener. Key features include non-pyrotechnic operation, easy resetting, redundant firing circuit, maximum reliability through design simplicity, and flight pedigree. The device is comprised of a machined SMA cylinder, encapsulated with redundant resistive heaters and embedded RTDs, all wrapped in a silicone rubber compound for thermal and electrical isolation. It has a minimum qualified life of 60 cycles.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
