MNE-405 / MNE-410 Mission Networking Electronics
Innoflight
Two-slot 3U VPX chassis with Ethernet switch or IP/MPLS router personality, combining a CFC processing module with the IOI-8 interface card.
Typed specifications5 values
Discloses 2 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 2 700 g product page
- Envelope (L×W×H)
- 197 x 150 x 82 mm product page
- Power consumption
- 40 W product page
- TRL
- 9 product page
- Flight heritage
- Since 2025 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Chassis
- 2-slot 3U VPX
- Personalities
- Ethernet switch (MNE-405) or IP / MPLS router (MNE-410)
- Processing module
- CFC-405XP (MNE-405) or CFC-450XP (MNE-410)
- Interface module
- IOI-8: 4x 2.5GbE + 4x 1GbE
- Dimensions
- 197 x 150 x 82 mm
- Mass
- 2.7 kg
- Power
- 40 W
- TRL / mrl
- 9 / 10
- Flight heritage
- Since 2025
About

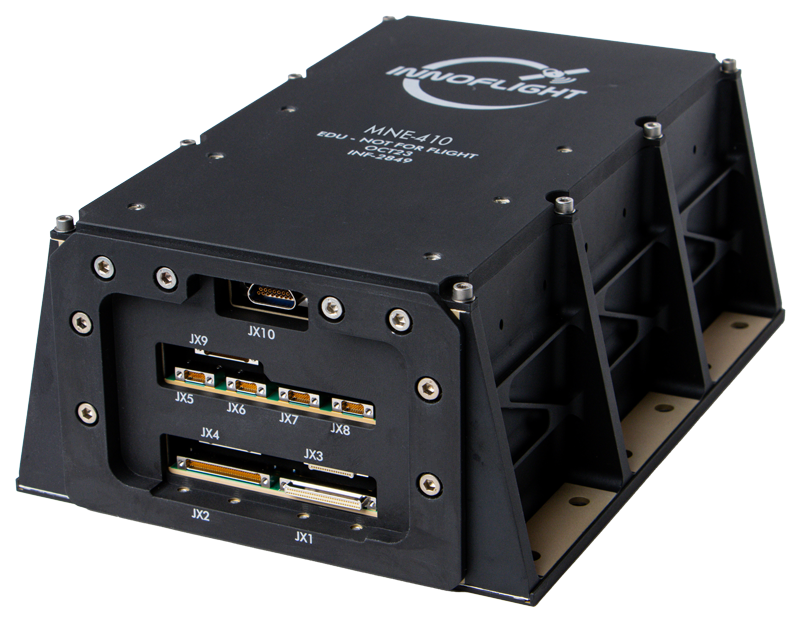

The MNE-405 and MNE-410 are Mission Networking Electronics (MNE) units: an Ethernet switch (MNE-405) and an Internet Protocol / MultiProtocol Label Switching (IP/MPLS) router (MNE-410).

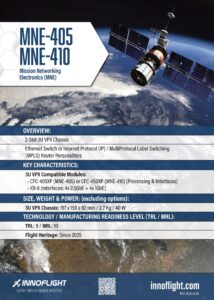

Overview: 2-slot 3U VPX chassis; Ethernet switch or Internet Protocol (IP) / MultiProtocol Label Switching (MPLS) router personalities.
Key characteristics: 3U VPX compatible modules, namely CFC-405XP (for the MNE-405) or CFC-450XP (for the MNE-410) providing processing and interfaces, plus the IOI-8 module providing 4x 2.5GbE and 4x 1GbE interfaces.
Size, weight and power (excluding options): 3U VPX chassis 197 x 150 x 82 mm, 2.7 kg, 40 W. Technology and manufacturing readiness are TRL 9 / MRL 10, with flight heritage since 2025.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
