On Board Computer
Alba Orbital

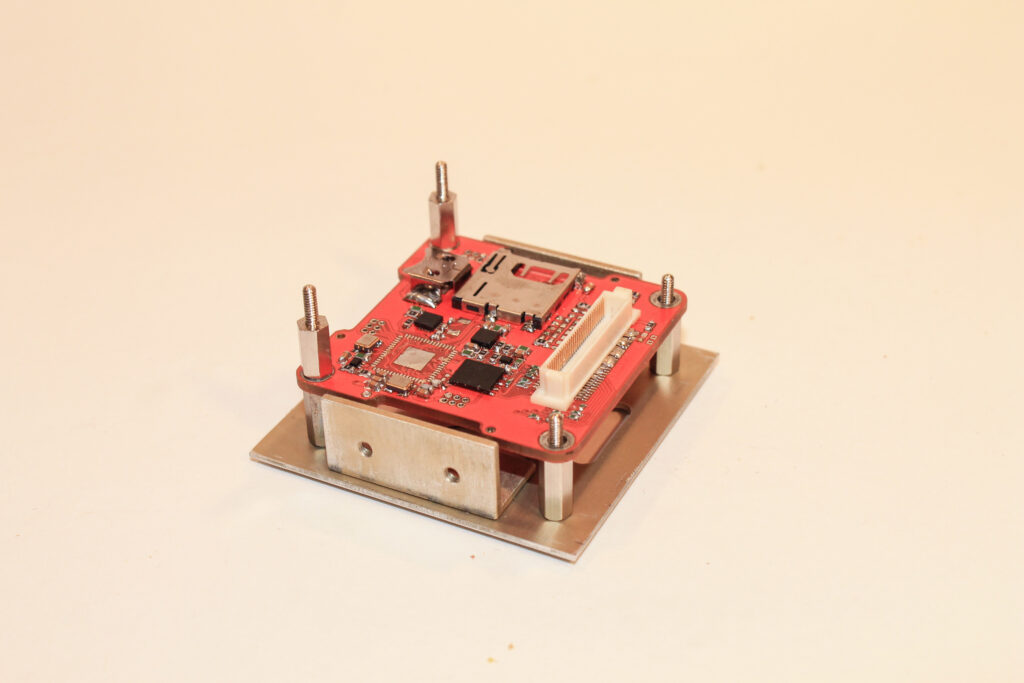

The Alba Orbital On Board Computer (OBC) is an entry-level control hub for satellites, featuring a TI MSP430 microcontroller for low power consumption and flexibility.
Typed specifications1 values
Discloses 0 of 13 fields engineers filter by in this category (category median 5).
- Envelope (L×W×H)
- 42 mm x 42 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier5 lines, in the manufacturer's own wording
- Manufacturer
- Alba Orbital
- Expected shipping time
- 12-16 Weeks
- Meets
- PQ60 v1.0 Specifications
- Dimensions
- 42 mm x 42 mm
- Mass
- 8.5 grams (without memory card)
About

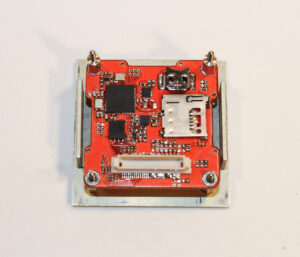

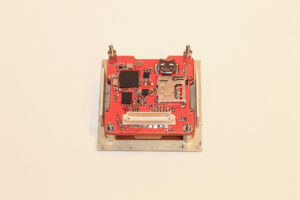

The Alba Orbital On Board Computer (OBC) is designed as the primary control hub for satellites, utilizing a TI MSP430 microcontroller for low power consumption and flexibility. It is readily programmable to fit various project requirements and includes drivers for reading on-board sensor data. The OBC comes equipped with temperature, RTC (Real-Time Clock), accelerometer, gyrometer, and magnetometer sensor capabilities for on-board diagnostics and experimentation. It also features reprogrammable NOR Flash memory for storing critical system operation parameters and an SD card expansion slot for expandable memory options. The board operates on a regulated 3.3V supply voltage, which can be externally enabled and disabled. The OBC meets PQ60 standards, facilitating easy interoperability with other systems via SPI and I2C protocols that conform to the standard. Currently, only an Engineering Model (EM) is available, with a Flight Model (FM) in development.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
