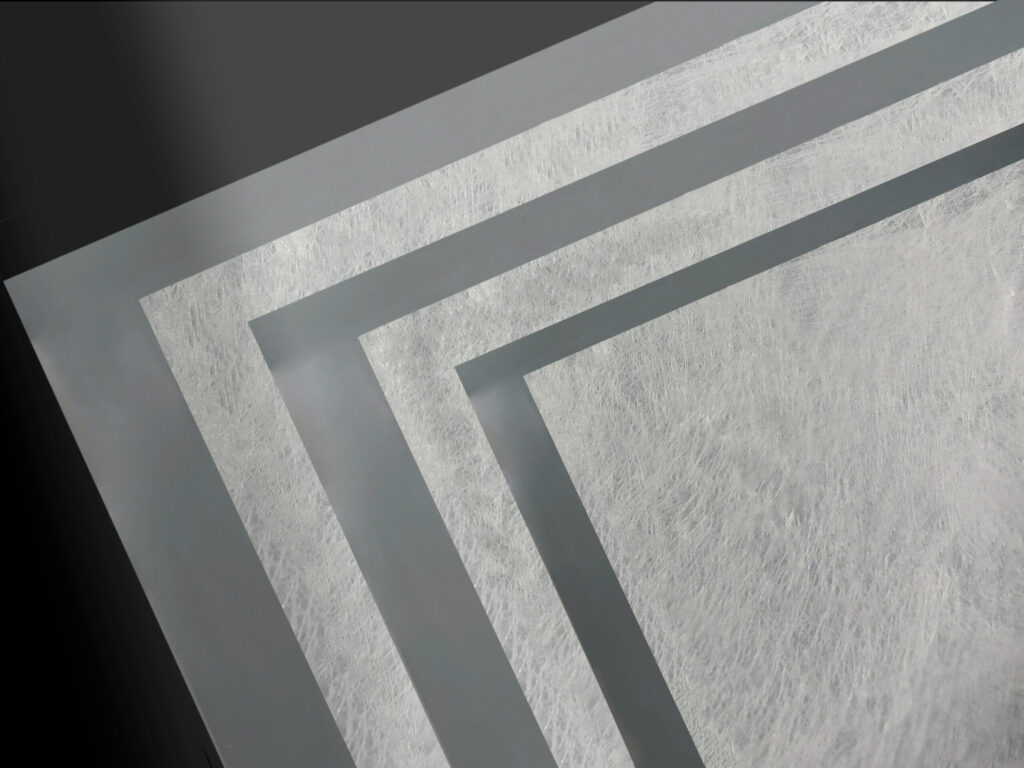

PolaPair™
Aerospace Fabrication and Materials, LLC
PolaPair™ is a cryogenic superinsulation subsystem combining a single reflector layer and separator, available in standard lengths and custom widths for various insulation system requirements.
Technical specifications
- Standard Lengths
- 100, 200, and 500 feet
- Custom Widths
- up to 86 inches
- Aluminum Coating (PP001-56)
- One Sided
- Crinkled (PP001-56)
- No
- Perforated (PP001-56)
- No
- Aluminum Coating (PP002-56)
- One Sided
- Crinkled (PP002-56)
- Yes
- Perforated (PP002-56)
- No
- Aluminum Coating (PP005-56)
- Both Sides
- Crinkled (PP005-56)
- No
- Perforated (PP005-56)
- No
About
PolaPair™ is a cryogenic superinsulation subsystem designed for efficient thermal insulation. It integrates a single reflector layer with a separator, offering a streamlined solution for cryogenic applications. Standard configurations are available in lengths of 100, 200, and 500 feet, with custom widths up to 86 inches. This flexibility allows PolaPair™ to be wrapped in multiple layers to construct insulation systems tailored to diverse requirements. A variant, PolaPair™ 2, enhances insulation by incorporating two layers of separator material for each reflector layer. PolaPair™ is suitable for basic single-layer insulation, can be wrapped to create multi-layer systems, and is ideal for insulating storage vessels and transfer lines. Various item numbers are available based on aluminum coating (one-sided or both sides), crinkled, and perforated options.
Documentation
- DataSheet_PolaPair_062723.pdf PDF source: aerospacefab.com ↗
- AFM_MarketingFlyer_R230920.pdf PDF source: aerospacefab.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
