PolaWrap™
Aerospace Fabrication and Materials, LLC

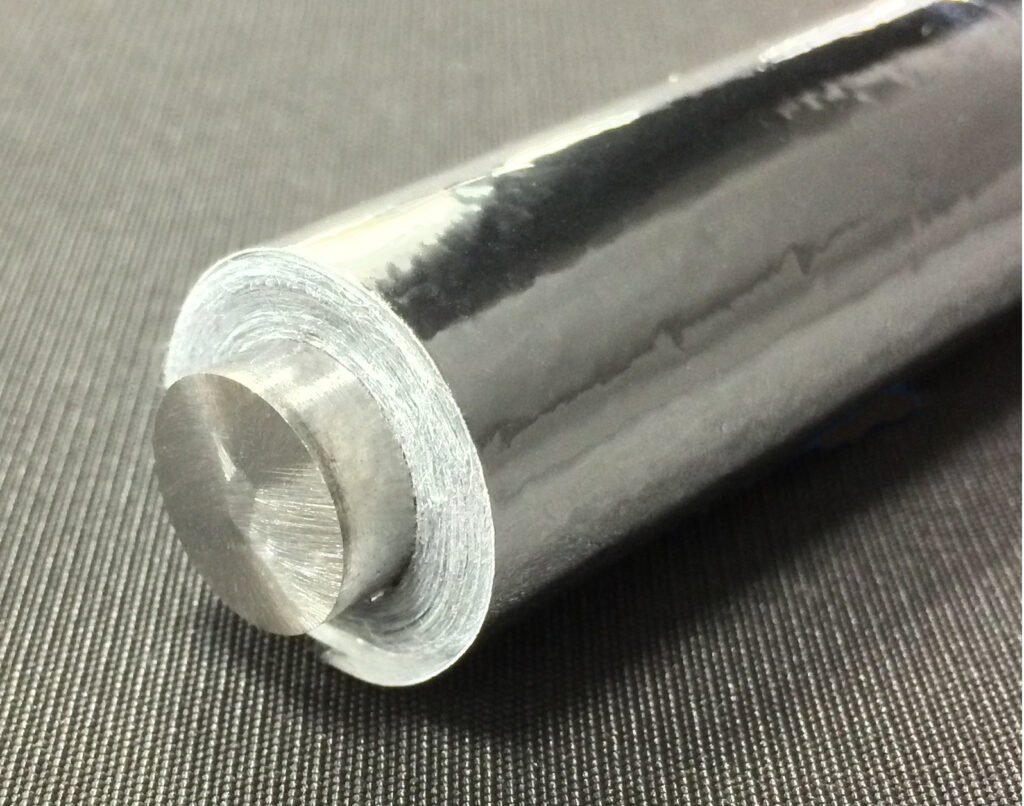

PolaWrap™ is a custom prefabricated layup of superinsulation, available in standard configurations of 10 feet length and custom widths up to 86 inches.
Typed specifications16 values
Discloses 4 of 7 fields engineers filter by in this category (category median 1).
- Mass
- 340 g 10 layers · datasheet p.2
- Layers (MLI)
- 29 product page 31 | 32
- Operating temperature
- -269–121 °C PolaWrap, 10 layers · datasheet p.2 -269–121 °C PolaWrap, 15 layers | -269–121 °C PolaWrap, 20 layers
- Product type
- MLI datasheet p.1
- Material
- double aluminized polyester film datasheet p.1
- Thickness
- 0.34 mm PolaWrap, 10 layers · datasheet p.2 5.6 mm PolaWrap, 15 layers | 6.2 mm PolaWrap, 20 layers
- Areal density
- 0.34 kg/m² PolaWrap, 10 layers · datasheet p.2 0.51 kg/m² PolaWrap, 15 layers | 0.68 kg/m² PolaWrap, 20 layers
- Spacer between layers
- other spun-bond polyester, 5.0 mil (127 µm) · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Reflector separation spacer thickness
- 5.0 mil (127 µm)
- Standard material width
- 56 inches
- Standard length
- 10 linear feet
- Maximum width
- 86 inches
- Number of layers (standard options)
- 10, 15, or 20 Layers
- Average Operating Temperature
- -452 (-269) to +250 (121) °F(°C)
- Areal Density (10 layers)
- 0.34 kg/m2
- Thickness (10 layers)
- 0.034 cm
- Layer Density (10 layers)
- 29 layers/cm
- Areal Density (15 layers)
- 0.51 kg/m2
- Thickness (15 layers)
- 0.56 cm
- Layer Density (15 layers)
- 31 layers/cm
- Areal Density (20 layers)
- 0.68 kg/m2
- Thickness (20 layers)
- 0.62 cm
- Layer Density (20 layers)
- 32 layers/cm
About
PolaWrap™ is Aerospace Fabrication and Materials, LLC’s custom prefabricated layup of superinsulation. Standard configurations are provided in a length of 10 feet, with custom widths available up to 86 inches. The standard layups come with 10, 15, and 20 reflector layers, but these can also be customized to meet specific needs. A variant, PolaWrap™ Super 100, is similar to PolaWrap™ but is prepared in lengths of 100 feet. These products are designed for use in cryogenic applications, suitable for environments ranging from laboratory settings to large-scale industrial storage systems.
Documentation
- DataSheet_PolaWrap_062723.pdf PDF source: aerospacefab.com ↗
- AFM_MarketingFlyer_R230920.pdf PDF source: aerospacefab.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
