PyCubed Plus–based Avionics Board
CubeSat Aerospace

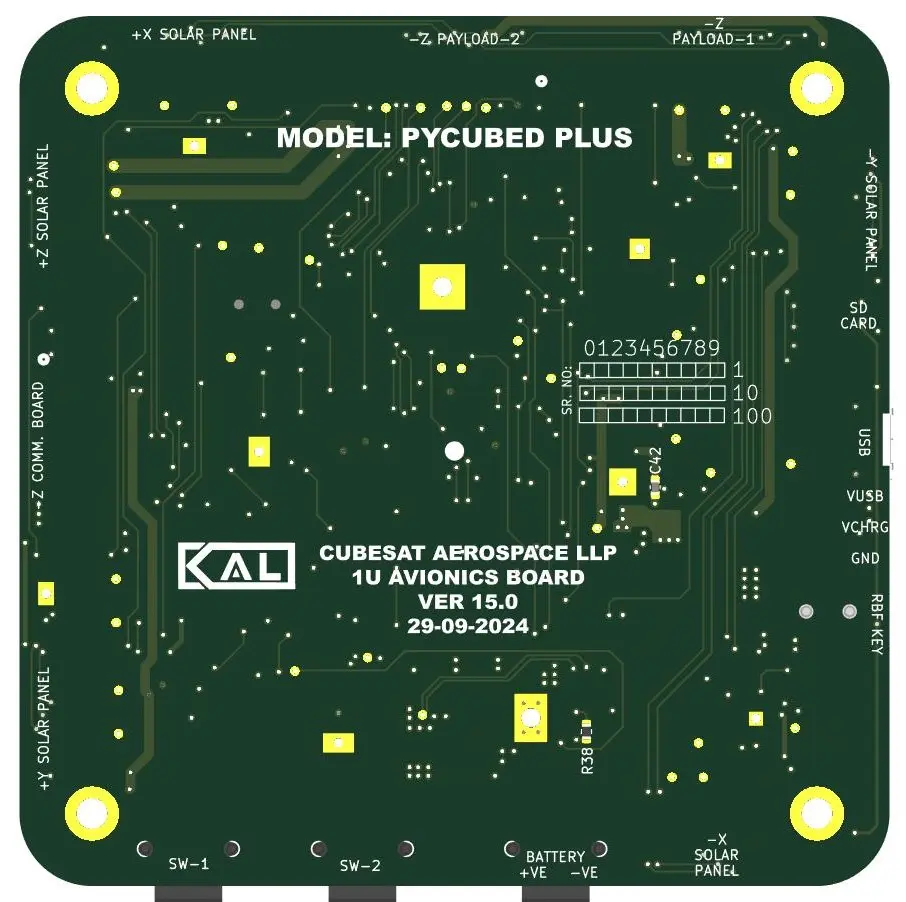

The PyCubed Plus–based Avionics Board by CubeSat Aerospace is a compact, flight-ready control system designed for 1U–3U CubeSats, integrating essential subsystems like power management, data logging, attitude control, and onboard processing.
Technical specifications
- Processor
- STM32F765 ARM Cortex-M7, 216 MHz
- Memory
- 4 MB MRAM (non-volatile, radiation-tolerant)
- Memory
- microSD card slot for data logging
- Sensors
- 9-axis IMU (accelerometer, gyroscope, magnetometer)
- Sensors
- Sun sensor interface via solar panel FFC
- Timekeeping
- Real-Time Clock (RTC) with battery backup
- Power Management
- MPPT-based solar charger
- Power Management
- USB-C charging port
- Power Management
- Li-ion battery interface with current monitoring
- Magnetic Torquer Driver
- Integrated 3-axis coil driver
- User Interfaces
- USB interface for programming and telemetry
- User Interfaces
- WS2812B full-color status LED
- User Interfaces
- Reset switch and power-on reset circuitry
- Connectors
- 6× 10-pin FFC for solar panels (X+/X–, Y+/Y–, Z+/Z–)
- Connectors
- 2× 20-pin FFC (for Communication and Payload Boards)
- Communication Interface
- I²C, SPI, UART, GPIOs exposed
- Power Input
- 3.3 V / 5 V regulated internally
- Form Factor
- PC104-compatible, fits 1U/1.5U/3U CubeSat trays
- Flight heritage
- In-orbit heritage through open-source community and academic missions
About
This all-in-one Avionics Board serves as the central nervous system of a CubeSat. Built on a PyCubed Plus architecture and enhanced with mission-ready features, it handles power distribution, data acquisition, sensor integration, and subsystem communication. Designed for ease of use and reliability in space, it aims to reduce development time and risk while offering flexibility for a range of CubeSat missions. Key benefits include its open-source, flight-proven PyCubed Plus architecture, integrated power management with solar and USB charging, and MRAM for non-volatile storage in radiation-prone environments. It also features an IMU and RTC for navigation and timekeeping, an integrated magnetic torquer driver for attitude control, and standard FFC connectors for easy panel and payload integration. The board boasts a compact, modular form factor for seamless CubeSat integration and includes built-in telemetry, a reset switch, and debug interfaces. It is NASA GEVS Compliant, compatible with standard environmental test protocols, and conforms to CubeSat Design Specification (CDS) board mounting standards. It has in-orbit heritage through the open-source community and academic missions and is bench-tested for functional validation and subsystem interaction. The product comes with a one-year limited warranty against manufacturing defects, technical support for electrical integration, software, and troubleshooting, and firmware and schematic access available under an open-source license.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
