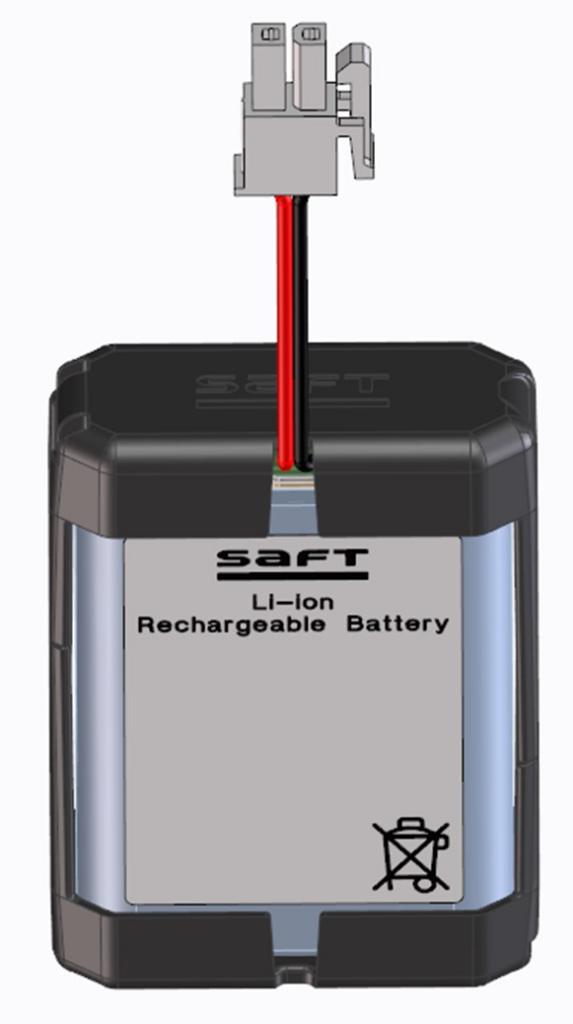

MP 174565 xtd CliP System 1s1p Battery
Single-cell 3.65 V, 4.0 Ah battery on the MP 174565 xtd cell with its own enclosure and protection circuit, -40 °C to +85 °C.
Typed specifications27 values
Discloses 10 of 12 fields engineers filter by in this category (category median 5).
- Energy
- 14.6 Wh Nominal energy · datasheet p.1
- Mass
- 116 g typical weight · datasheet p.1
- Capacity
- 4 Ah typical, at C/5 rate, +25°C, 2.5V cut-off · datasheet p.1
- Cell chemistry
- Li-ion (unspecified) Rechargeable Li-ion cell · datasheet p.1
- Envelope (L×W×H)
- 51.0 mm x 20.0 mm x 75.0 mm datasheet p.1 20.0 x 51.0 x 75.0 thickness x width x height (sleeved cell)
- Cycle life
- 2 700 more than 2,700 cycles at 100% DoD · datasheet p.1
- Supply voltage
- 3.65 V nom. · datasheet p.1
- Operating temperature
- -40–85 °C product page -40–85 °C operating temperatures, discharge
- Cell configuration
- 1s1p datasheet p.1
- Max continuous discharge current
- 5 A Continuous · datasheet p.2 5 A max · recommended maximum discharge current, continuous
- Nominal voltage
- 3.65 V nom. · Nominal voltage · datasheet p.1
- Battery management / protection electronics
- protection circuit only electronic protection circuit integrated in the CliP System · datasheet p.1
- Connector
- Molex Mini-Fit Jr. ref. 39-01-2020 (male) / 39-00-0038 (female) datasheet p.2 Molex Mini-Fit Jr. ref. 39-00-0038 (Female)
- Survival temperature
- -40–85 °C storage & transportation, allowable · datasheet p.1
- Cell model
- MP 174565 xtd CliP System 1s1p datasheet p.1
- Max charge current
- 4 A Maximum continuous · datasheet p.2 4 A max · maximum continuous charge current
- Depth of discharge (for the cycle life)
- 100 % more than 2,700 cycles at 100% DoD · datasheet p.1
- Specific energy
- 150 Wh/kg datasheet p.1
- Protections
- over-charge (OV) datasheet p.3 over-discharge (UV) | short circuit
- Charge temperature range
- -30–85 °C operating temperatures, charge · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Chemistry
- Li-ion
- Configuration
- 1s1p
- Typical capacity
- 4.0 Ah
- Nominal voltage
- 3.65 V
- Nominal energy
- 14.6 Wh
- Max continuous discharge current
- 5 A
- Dimensions
- 20.0 x 51.0 x 75.0 mm
- Mass
- 116 g
- Cycle life
- ≥ 2700 cycles at 100% DoD
- Charging voltage
- 4.2 V
- Max continuous charge current
- 4 A
- Operating temperature (discharge)
- -40 to +85 °C
- Charge temperature
- -30 to +85 °C
- Saft part number
- 07943D
About
Saft MP 174565 xtd CliP System 1s1p is a single-cell lithium-ion battery built on the MP 174565 xtd cell. The CliP enclosure protects all six sides, the corners and the electronic protection circuit, so no heat-shrink cover is needed; the battery keeps the cell’s -40 °C to +85 °C operating range and is delivered with a cable and connector. Figures below are from the Saft product datasheet.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
