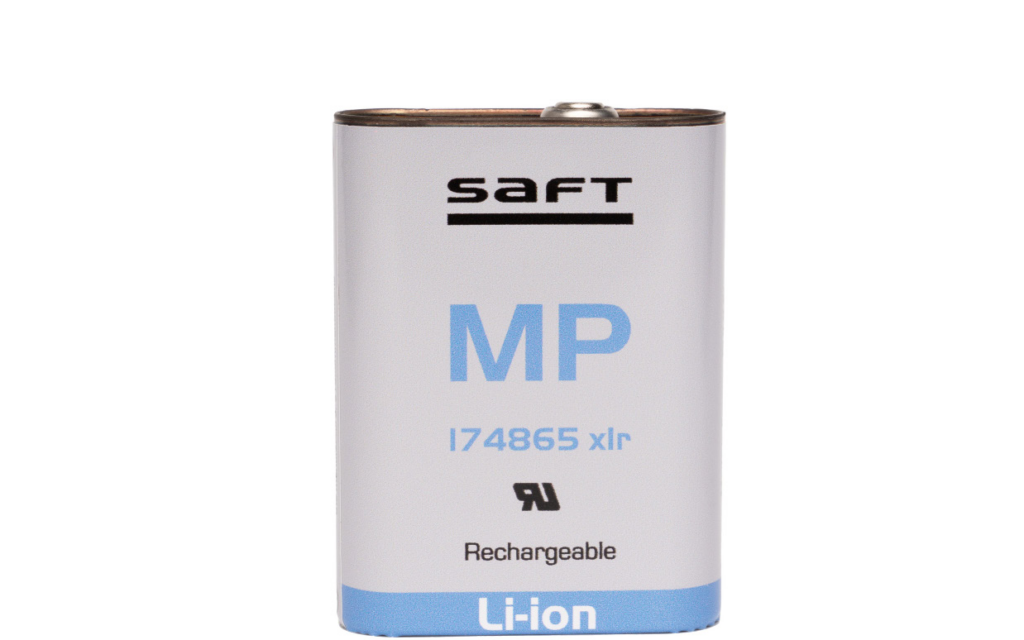

MP 174865 xlr Li-ion Cell
3.65 V, 5.3 Ah (19.3 Wh) high-energy medium prismatic Li-ion cell with more than 950 cycles at 100% DoD.
Typed specifications30 values
Discloses 7 of 8 fields engineers filter by in this category (category median 3).
- Energy
- 19.3 Wh Nominal energy · datasheet p.1
- Mass
- 121 g typical weight, ~121 g · datasheet p.1 121 g typ. · sleeved cell
- Capacity
- 5.3 Ah typical, at C/5 rate, +25°C, 2.5V cut-off · datasheet p.1
- Cell chemistry
- Li-ion (unspecified) Rechargeable Li-ion cell · datasheet p.1
- Envelope (L×W×H)
- 19.0 mm x 48.0 mm x 65.0 mm datasheet p.1 19.0 x 48.0 x 65.0 thickness x width x height (sleeved cell)
- Cycle life
- 950 more than 950 cycles at 100% DoD at C/2 discharge · datasheet p.1
- Supply voltage
- 3.65 V nom. · datasheet p.1
- Operating temperature
- -30–60 °C Charge · datasheet p.1 -35–60 °C operating temperatures, discharge
- Max continuous discharge current
- 10 A Continuous · datasheet p.1 21 A Pulses | 21 A max · Pulses | 10 A max · recommended maximum discharge current, continuous
- Nominal voltage
- 3.65 V nom. · Nominal voltage · datasheet p.1
- Survival temperature
- -40–60 °C Allowable Storage & transportation temperatures · datasheet p.1 10–30 °C Recommended Storage & transportation temperatures | -40–60 °C storage & transportation, allowable
- Cell model
- MP 174865 xlr datasheet p.1
- Max charge current
- 5 A Maximum continuous · datasheet p.1 5 A max · maximum continuous charge current
- Pulse discharge current
- 21 A recommended maximum discharge current, pulses · datasheet p.1
- Depth of discharge (for the cycle life)
- 100 % more than 950 cycles at 100% DoD at C/2 discharge · datasheet p.1
- Specific energy
- 159 Wh/kg datasheet p.1
- Protections
- over-charge (OV) datasheet p.2 over-discharge (UV) | short circuit
- Cell balancing
- other type not stated: cell balancing and temperature monitoring · datasheet p.2
- Charge temperature range
- -30–60 °C operating temperatures, charge · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Chemistry
- Li-ion
- Typical capacity
- 5.3 Ah
- Nominal voltage
- 3.65 V
- Nominal energy
- 19.3 Wh
- Max continuous discharge current
- 10 A
- Pulse discharge current
- 21 A
- Dimensions
- 19.0 x 48.0 x 65.0 mm
- Mass
- 121 g
- Cycle life
- > 950 cycles at 100% DoD
- Charging voltage
- 4.2 V
- Max continuous charge current
- 5.0 A
- Operating temperature (discharge)
- -35 to +60 °C
- Charge temperature
- -30 to +60 °C
- Casing
- Stainless steel, hermetically sealed
- IEC cell designation
- INP19/48/65
About
Saft MP 174865 xlr is a high-energy medium prismatic rechargeable lithium-ion cell in a stainless steel, hermetically sealed casing, designed for long operating life under cycling in temperature environments from -35 °C to +60 °C. Saft lists the MP range for launcher batteries. Cells are supplied integrated into battery assemblies with electronic protection. Figures below are from the Saft product datasheet.
